Ftth Onu
FTTH ONU

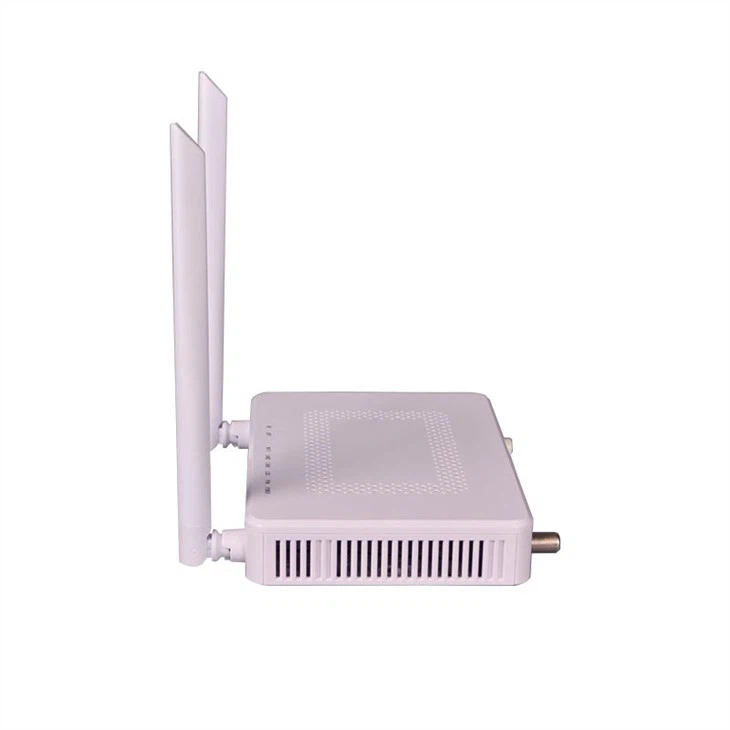

Product Display
This FTTH ONU is compatible with other brand's OLT, like Huawei, ZTE, Fiberhome(ZTE OLT CAN REMOTE WAN-IP FOR SOFTEL ONU). We can provide full FTTH solution. and technical support at meanwhile.
This FTTH ONU is designed with Dual mode, which can work in Gpon&Epon network.
Our FTTH ONU can realize optical access solutions such as FTTH (Fiber To The Home) and FTTB (Fiber To The
Building). It fully integrates the reliability, maintainability and security design of carrier-grade equipment, and
provides customers with the last kilometer of broadband access to residential and corporate customers.
Deatail Images
Hardware Specification
PON Interface | Interface Type | SC/PC, CLASS B+ |
Rate | Uplink: 1.25Gbps; Downlink: 2.5Gbps | |
User-Side Interface | 1*10/100BASE-T;1*10/100/1000BASE-T; 1*RF interface | |
Size (Mm) | 167(L)×118(W)×30(H) | |
Maximum Power Consumption | <8W | |
Weight | 200g | |
Operating Environment | Temperature: -10°C ~ 55°C | |
Humidity: 5% ~ 95% （no condensation） | ||
Power Supply | External Power Adapter 12V/1A | |
Power Adapter Input | 100-240V AC, 50/60Hz | |
Power Interface Size | metal inner diameter: φ2.1±0.1mmouter diameter : φ5.5±0.1mm; length: 9.0±0.1mm | |
WLAN Module | Internal and external dual antenna, antenna gain 5db, antenna power 16~21dbm | |
Support 2.4GHz, 300M transmission rate | ||
Packing of FTTH ONU
Compnay Information
FAQ
1. Lead time
Usually, if there's stock, we ship the goods within 3~5 working days after the deposit is confirmed. If it is out of stock, the lead time depends.
2. Shipping
When the package is small, we normally choose FedEx, DHL, TNT, and UPS and so on, while the goods have high weight and volume, we suggest using air or sea shipment.
How can I place an order?
(1) Negotiation is agreed upon for the product price and specifications.
(2) The Proforma invoice will be sent for confirmation.
(3) After the agreement on the proforma invoice, the customer makes the deposit.
(4) Manufacturing will be started as soon as the payment is confirmed by our bank.
(5) Ship out the goods within the agreed delivery deadline.
3. OEM
Yes. If there is a certain order quantity, we can do OEM including printing, logo, and customized model for you.
4. Warranty
There are 12 months for the warranty.
While the warranty is not responsible for those broken by violence or updated with other brands.
