GJYXCH FTTH Drop Cable with Messenger

It is of high bandwidth and excellent communication transmission property due to the special low-bend-sensitivity fiber.
Send Inquiry
Product Introduction

GJYXCH FTTH drop cable with messenger is of high bandwidth and excellent communication transmission property due to the special low-bend-sensitivity fiber.

GJYXCH FTTH Drop Cable

Features

1. Low smoke, zero halogen and flame retardant sheath.

2. Two parallel FRP strength members ensures good performance of tensile strength.

3. Simple structure, light weight and high practicability.


Technology specifications

Item

GJYXCH FTTH Drop Cable with Messenger

Cable type

GJYXFCH-1B6

GJYXFCH-2B6

GJYXFCH-4B6

Cable specification

5.2×2.0

Fiber type

9/125 (G.657A2)

Fiber counts

1

2

4

Fiber color

Red

Blue, orange

Blue, orange, green, brown

Sheath color

Black

Sheath material

LSZH

Cable dimension mm

5.2(±0.2)*2.0(±0.2)

Cable weight Kg/km

Approx. 13.5

Min. bending radius mm

120

Min. bending radius mm
(Excluding messenger wire)

10 (Static)
25 (Dynamic)

Attenuation dB/km

≦ 0.4 at 1310nm, ≦ 0.3 at 1550nm

Short term tensile N

230

Long term tensile N

110

Short term crush N/100mm

1000

Long term crush N/100mm

500

Operation temperature ℃

-20~+60

Note: The product is in accord with the instruction of EU RoHS

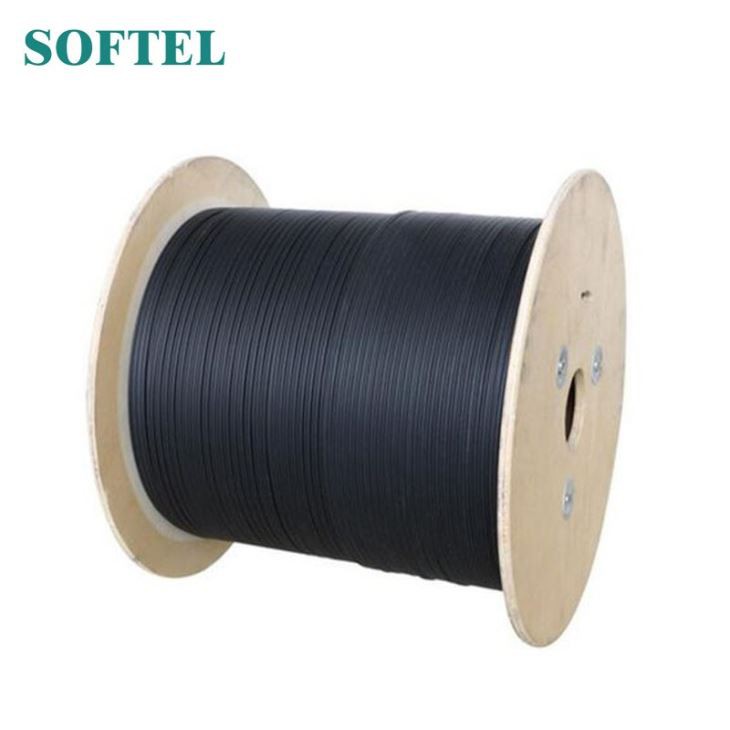

Packaging Details

The exterior self supporting drop fiber optic cable is packed 2KM/Wooden drum, each drum packed in a standard paper carton. The gross weight of each carton is about 40kg.


001

003
