ADSS Fiber Optic Cable

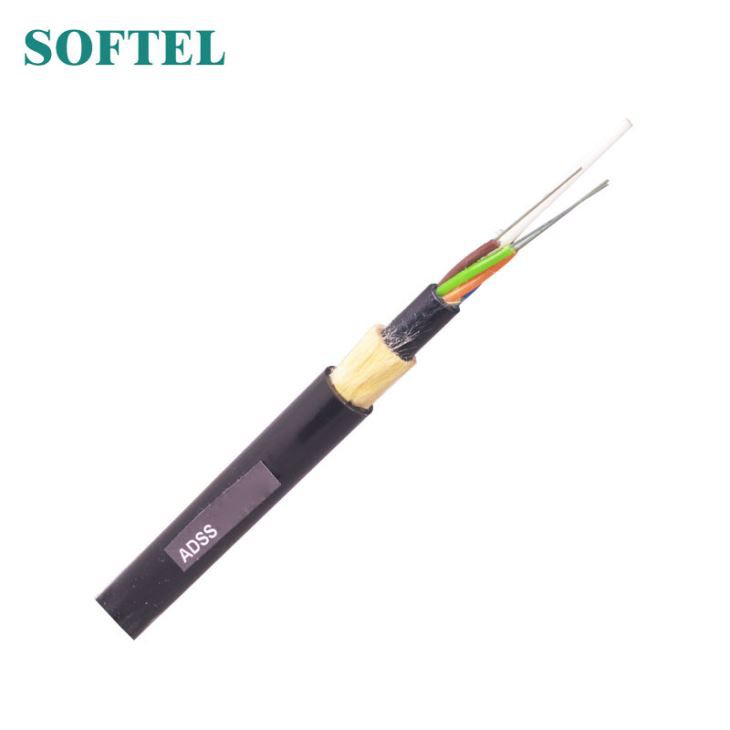

ADSS Fiber Optic Cable is of loose tube style, optical fiber cable with FRP central strength member and peripheral aramid yarns and black polyethylene sheath suitable for overhead installation as pole-to-pole or pole-to-premises. Tubes contain up to 6 Fibers color coded as per color coding scheme.
Characteristic
◆G652D fiber information after cabled
◆Mode field diameter (1310nm): 9.2m0.4m
◆Mode field diameter (1550nm): 10.4m0.8m
◆Cut off wavelength of cabled fiber (cc): 1260nm
◆Attenuation at 1310nm: 0.36dB/km
◆Attenuation at 1550nm: 0.22dB/km
◆Bending loss at 1550nm (100 turns, 30mm radius): 0.05dB
◆Dispersion in the range 1288 to 1339nm: 3.5ps/ (nm•km)
◆Dispersion at 1550nm: 18ps/ (nm•km)
◆Dispersion slope at zero dispersion wavelength: 0.092ps/(nm2•km)
Parameters
Designation | Diameter (mm) | RTS(N) | MAT(N) | EDS(N) | Kg/km |
2~24 core | |||||
ADSS-AT(PE)xx -4KN | 12.2 | 9698 | 3879 | 2425 | 121 |
ADSS-AT(PE)xx -6KN | 12.5 | 14108 | 5643 | 3527 | 126 |
ADSS-AT(PE)xx -9KN | 12.9 | 22928 | 9171 | 5732 | 135 |
ADSS-AT(PE)xx -12KN | 13.3 | 30645 | 12258 | 7661 | 143 |
ADSS-AT(PE)xx -15KN | 13.6 | 37260 | 14904 | 9315 | 149 |
ADSS-AT(PE)xx -18KN | 13.9 | 44978 | 17996 | 11245 | 157 |
ADSS-AT(PE)xx -21KN | 14.3 | 52695 | 21078 | 13174 | 164 |
ADSS-AT(PE)xx -24KN | 14.6 | 60413 | 24165 | 15103 | 172 |
ADSS-AT(PE)xx -26KN | 14.8 | 65925 | 26370 | 16481 | 177 |
26~36 core | |||||
ADSS-AT(PE)xx -4KN | 12.8 | 9698 | 3879 | 2425 | 133 |
ADSS-AT(PE)xx -6KN | 13.0 | 14108 | 5643 | 3527 | 138 |
ADSS-AT(PE)xx -9KN | 13.4 | 22928 | 9171 | 5732 | 146 |
ADSS-AT(PE)xx -12KN | 13.8 | 30645 | 12258 | 7661 | 154 |
ADSS-AT(PE)xx -15KN | 14.1 | 37260 | 14904 | 9315 | 161 |
ADSS-AT(PE)xx -18KN | 14.4 | 44978 | 17991 | 11245 | 168 |
ADSS-AT(PE)xx -21KN | 14.7 | 52695 | 21078 | 13174 | 175 |
ADSS-AT(PE)xx -24KN | 15.1 | 60413 | 24165 | 15103 | 183 |
ADSS-AT(PE)xx -26KN | 15.3 | 65925 | 26370 | 16481 | 188 |
Only a part of ADSS cables are list in the table.
We can design the different characteristic base on the environment condition.
