Figure 8 Fiber Optical Cable

The cable core is protected with jelly or water blocking material to prevent water intrusion and migration. This set unit and galvanized steel messenger are covered with polyethylene outer jacket.

Send Inquiry

Product Introduction

Self-supported figure 8 optical cable GYTC8Y,with fibers placed in jelly, is filled loose buffer tube stranded around dielectric central member.

Cable description

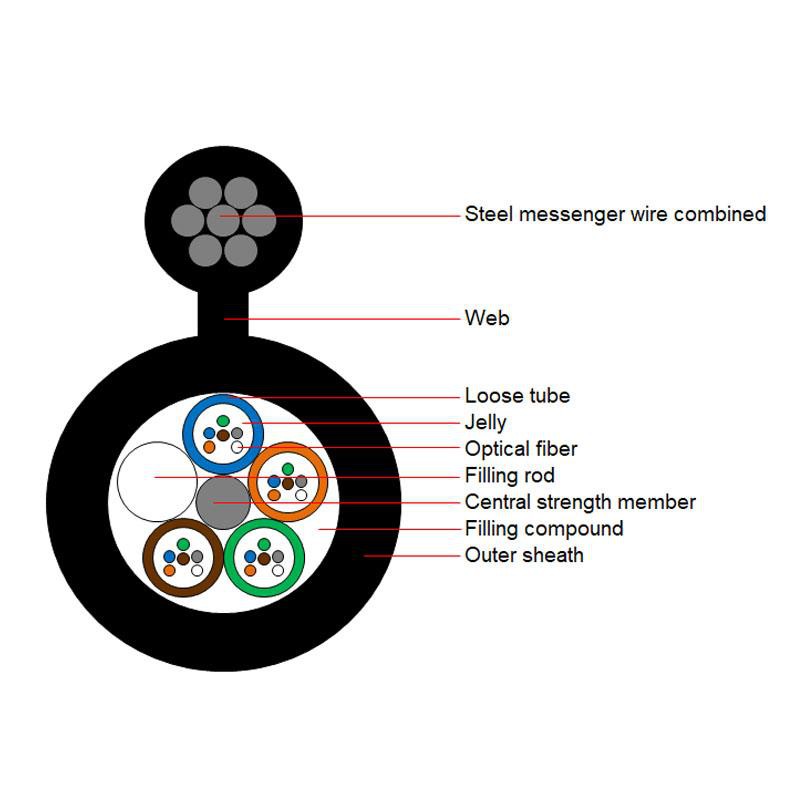

Figure 8 optical cable GYTC8Y is of loose tube construction, tubes jelly filled, elements (tubes and filling rods) laid up around metallic central strength member, polyester yarns used to bind the cable core, filling compound filled in the apertures of the cable core, then PE sheath with messenger wires combined.

Fiber & tube color

No.	1	2	3	4	5	6
Color	Blue	Orange	Green	Brown	Gray	White
No.	7	8	9	10	11	12
Color	Red	Black	Yellow	Violet	Pink	Aqua

Structure parameter of figure 8 optical cable GYTC8Y

Item	Contents	Unit	Value
Fiber count	Number	/	12/24	36	48	72	96
cable structure	/	/	1+5	1+6	1+5	1+6	1+8
Fiber No. per tube	Number	/	6	6	12	12	12
Loose tube	Number	/	2/4	6	4	6	8
Messenger wire	Nominal diameter	mm	7*1.0
Cable diameter	±5%	mm	8.4	8.8	9.3	9.9	11.2
Cable height	±5%	mm	15.8	16.2	16.7	17.3	18.6
Cable weight	±10%	kg/km	130	145	147	174	193
