4 Core Fiber Optic Cable
2,6,8,12,24,4 Core Fiber Optic Cable

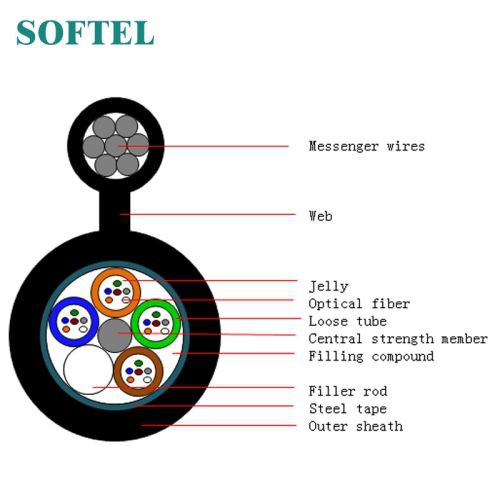

The fibers, 250um ,are positioned in a loose tube made of high modulus platic. The tubes are filled with a water- resistant filling compound. The two sides PSP are longitudinally applied over the outer loose tube. Steel wires and loose tubes filled with water proof compound to ensure compact and longitudinally water blocking, this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene(PE) sheath to be figure 8 structure.
Main application
1.Inter-exchange communication,rural telephone,local junction
2.CATV
3.Computer network transmission system
4.Specially applicable to complex aerial line and non-steel suspersion occasion.
Parameters
Optical characteristics (2,6,8,12,24,4 Core Fiber Optic Cable) | |||||
G.652 | G.655 | 50/125 um | 62.5/125 um | ||
Attenuation (+20°c) | @850 nm | ≤3.0 dB/km | ≤3.0 dB/km | ||
@1300 nm | ≤1.0 dB/km | ≤1.0 dB/km | |||
@1310 nm | ≤0.36 dB/km | ≤0.40 dB/km | |||
@1550 nm | ≤0.22dB/km | ≤0.23 B/km | |||
Bandwidth(Class A) | @850 nm | ≥500 Mhz· km | ≥200 Mhz· km | ||
@1300 nm | ≥1000 Mhz· km | ≥600 Mhz· km | |||
Numerial Aperture | 0.200 ± 0.015 NA | 0.275 ± 0.015 NA | |||
Cable Cut-off Wavelenth λ cc | ≤1260 nm | ≤1480 nm | |||
Technical parameters | ||
Cable type | GTXTC8S | GTXTC8S |
Fiber count | 2~12 | 14~24 |
Cable diameter(mm) | 7.65*14.5 | 8.2*15.1 |
Cable weight (kg/km) | 118 | 129 |
Supporting wire spec | Φ1.0mm*7 stranded wires | |
Connection diameter | Height*width 3.0*2.5mm | |
Tensile strength long/Short term(N) | 1000/2500 | 600/1500 |
Crush resistance long/Short term(N/ 100mm) | 300/1000 | 300/1000 |
Bending radius long/short term(N/100mm) | 80/160 | 90/180 |
Storage/Operating Temperature | -40°c to +70°c | |
