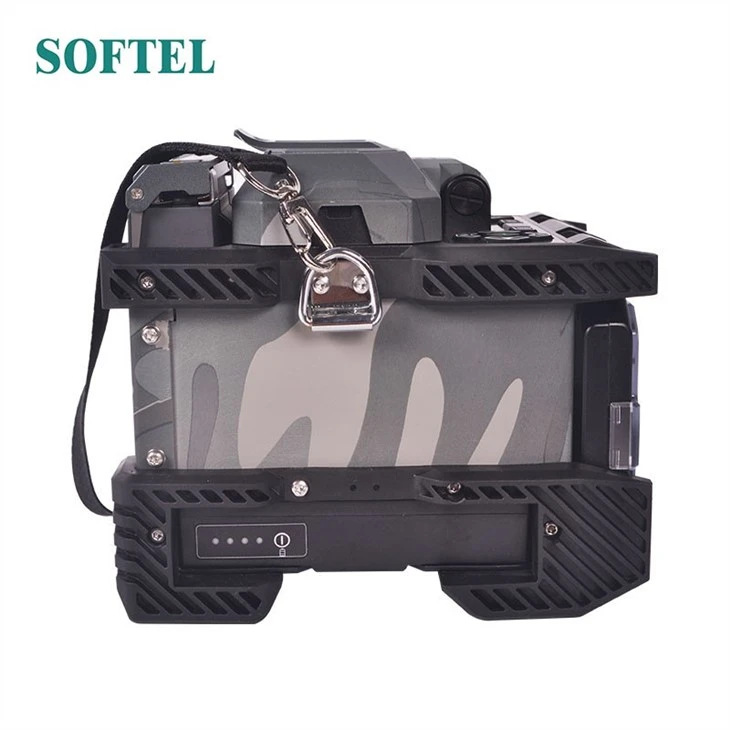

Fiber Fusion Splicer
Fiber Fusion Splicer
Fiber Fusion Splicer
Fiber Fusion Splicer
Fiber Fusion Splicer

Fiber Fusion Splicer

7s fast splicing, 18s highly efficient heating

Send Inquiry

Product Introduction

AV6481A07

The Fiber Fusion Splicer is capable of dual-directional fusion. The monitor is a touch screen with GUI for smooth operation. The modular pluggable lithium-ion battery with large-capacity ensures long-time field operations. The auto environmental compensation system greatly improves adaptability of the splicer to extreme environments to ensure your work smoothly and continuously.

Main Characteristics

Compact, light weight

7s fast splicing, 18s highly efficient heating

320 times image magnification, 5mm fusion for ultra-short cleave length

300 groups of splice modes, 100 groups of heating modes, 10000 groups of fusion records

64 images storage

Ceramic presser foot, ceramic V-groove, all-in-one fixture Dual-directional fusion, auto fusion, intelligent heat shrink

USB and SD card interface, auto update by USB

Built-in modular lithium-ion battery, at least 220 times of splicing and heating

GUI and touch screen, this Fiber Fusion Splicer is easy to operate.

Dust-resistant, water-resistant, shock-resistant

AV6481A02

Model	6481A Optical Fiber Fusion Splicer	6481B Optical Fiber Fusion Splicer
Motor qty.	6	4
Alignment method	Cladding alignment, Core alignment
Applicable fibers	Any common optical fibers, rubber-insulated fibers and jumpers that meet require ments of ITU-TG.651~653, ITU-TG.655 and ITU-TG.657.
Optical fiber diameter	Cladding: 80～150μm, coating layer: 0.1～3mm
Cleave length	5～16mm (coated optical fiber diameter ≤250μm); 10mm (coated optical fiber diameter: 0.25~3mm)
Splice loss (typical)	0.02dB (SMF); 0.01dB (MMF); 0.04dB (DSF); 0.04dB (NZDSF)	0.03dB (SMF); 0.02dB (MMF); 0.05dB (DSF); 0.05dB (NZDSF)
Return loss	Better than 60dB
Splicing time (typical)	7s (Fast mode)
Heating time (typical)	18s (60mm protection sleeve)
Tension	1.96～2.25N
Protection sleeve	60mm, 40mm and a series of protection sleeves
Graphical display	High-performance 4.3 inch LCD
Magnification time	320 times/88 times, 700 times	320 times/88 times
Fusion records	10000 groups/64 images	10000 groups
Battery capacity	11.1V, 6800mAh
Battery operating lif	Cycle charging: 300～500 counts, can be replaced by customers
Electrode operating life	Typical: 4000 counts, can be replaced by customers
Construction lighting	Built-in lights with high-brightness and wide lighting area
Working environment	Temp:-10～50℃; Hum: 0～95%RH, height above sea level: 0～6000m
Operation interfaces	GUI
External power	AC: 100～240V, 60Hz, 0～1.5A; DC: 10～15V
Port	USB / SD
Dimensions	120mm (W)×130mm (H)×154mm (D) (without rubber anti-vibration pad)
Weight	1.8kg (no battery), 2.1kg (with battery)	1.7kg (no battery), 2.0kg (with battery)

AV6481A05

AV6481A03
