GPON OLT 2 PORT
Product Description
Brief Summary

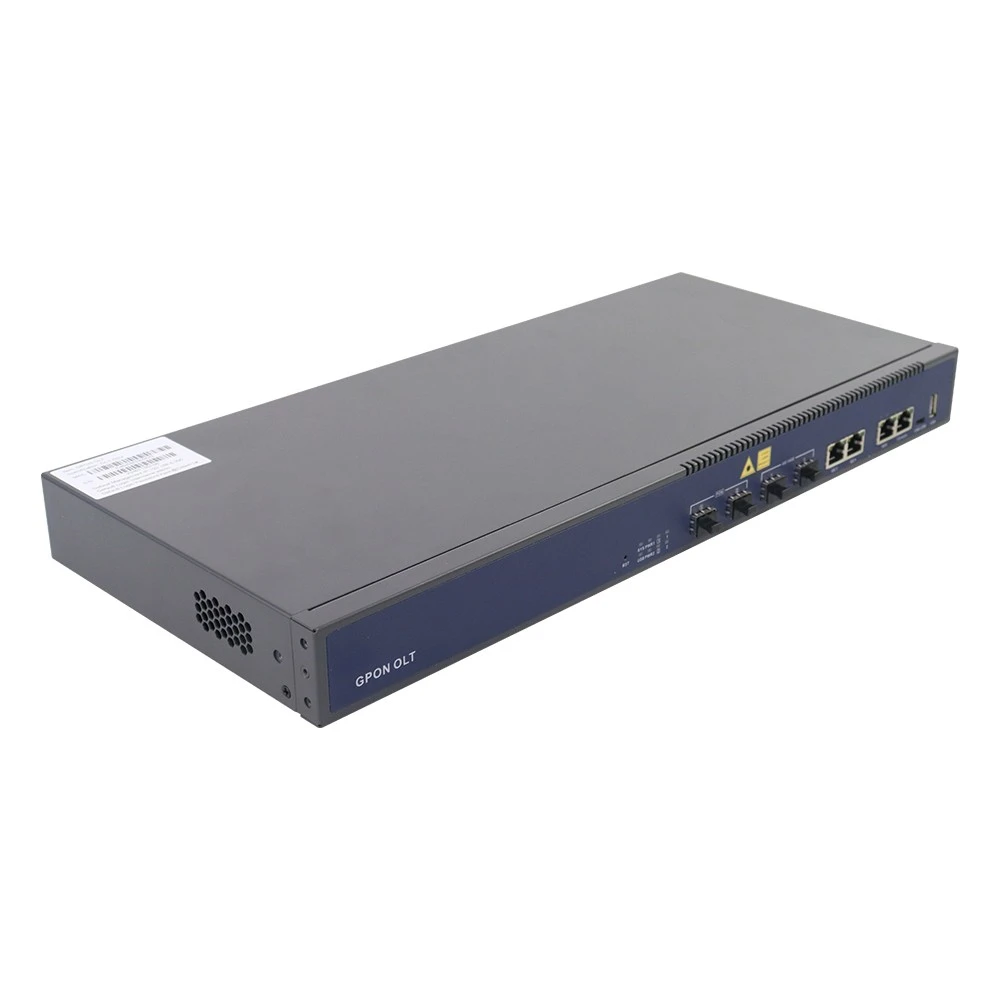

OLT-G2V is a pizza-box GPON OLT with two GPON ports that meets flexible and fast FTTx access, suiting the scenarios such as sparse/ remote/cost-sensitive area,smart industrial park, commercial building and FTTM, etc.
Highlights
- Compact design, meets various application scenarios
Supports the deployment in diverse scenarios including low density areas, remote areas, sparsely-populated areas and industry parks.
Supports FTTM and sharing site/rack with wireless base stations.
- Small size and lightweight, easier to delivery and install
Supports multiple installation modes, like limited room space,basement, low-voltage room and small rack or cabinet.
- Carrier-class security protection, ensure the safe operation of network
Supports uplink redundancy protection including LACP STP,RSTP and MSTP. Supports link protection.
- Lower TCO
Dramatically saves on investment fees in trunk fibers, pipe engineering, and facilities. Effectively reduce CapEx and OpEx.
| Item | OLT-G2V | |
| Chassis | Rack | 1U 19Inch Standard Box |
| Uplink Port | QTY | 4 |
| RJ45(GE) | 2 | |
| SFP(GE)/SFP+(10GE) | 2 | |
| GPON Port | QTY | 2 |
| Physical Interface | SFP Slots | |
| Supported PON module level | Class C++/Class C+++/Class C++++ | |
| Max splitting ratio | 1:128 | |
| Management Ports | 1*10/100/1000BASE-T out-band port, 1*CONSOLE port, 1*USB2.0 | |
| Backplane Bandwidth (Gbps) | 208 | |
| Port Forwarding Rate(Mpps) | 40.176 | |
| PON Port Specification (Class C+++) | Transmission Distance | 20KM |
| PON port speed | Upstream 1.244Gbps, Downstream 2.488Gbps | |
| Wavelength | TX 1310nm, RX 1490nm | |
| Connector | SC/UPC | |
| Fiber Type | 9/125μm SMF | |
| TX Power | +4.5~+10dBm | |
| Rx Sensitivity | ≤ -30dBm | |
| Saturation Optical Power | -12dBm | |
| Management Mode | WEB , Telnet , CLI | |
| Product Name | Product Description | Power Configuration | Accessories |
| OLT-G2V | 2*GPON, 2*GE(RJ45)+2*GE(SFP)/10GE(SFP+) |
1*AC power 2*AC power 2*DC power 1*AC power + 1* DC power |
Class C++ module Class C+++module Class C++++module 1G SFP / 10G SFP+ module |
