2port Gpon Olt

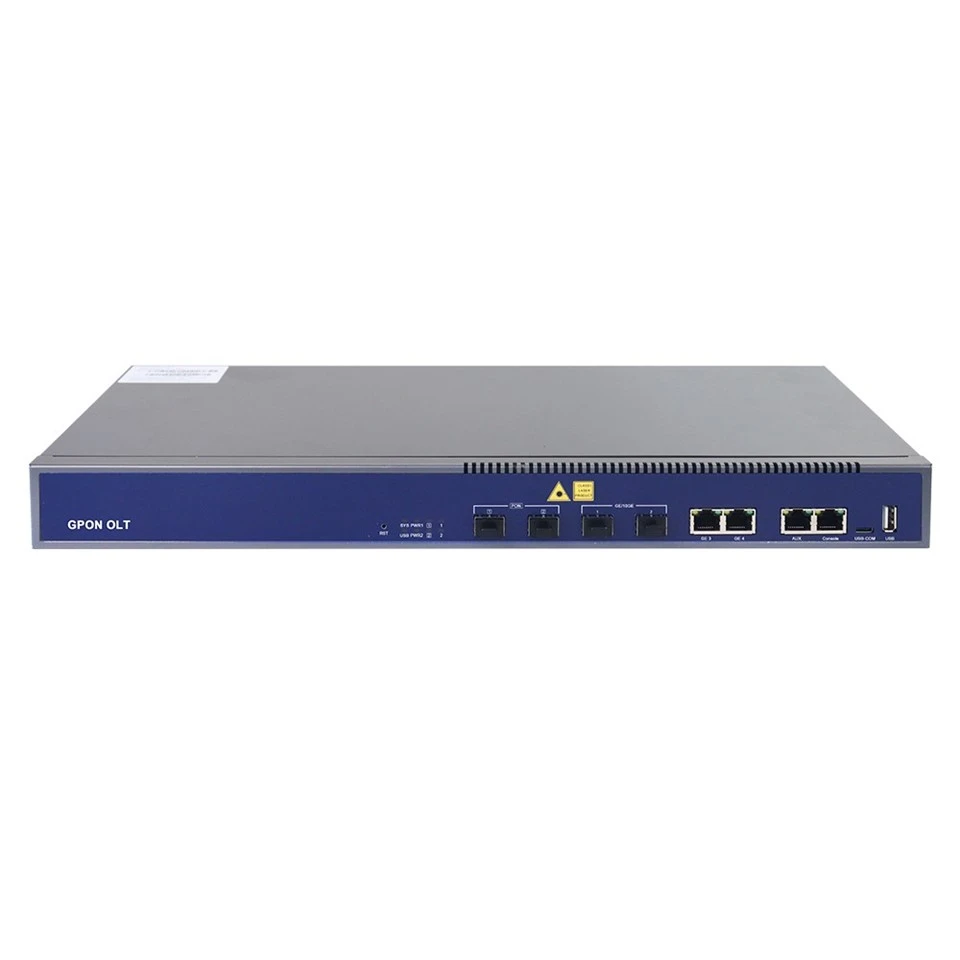

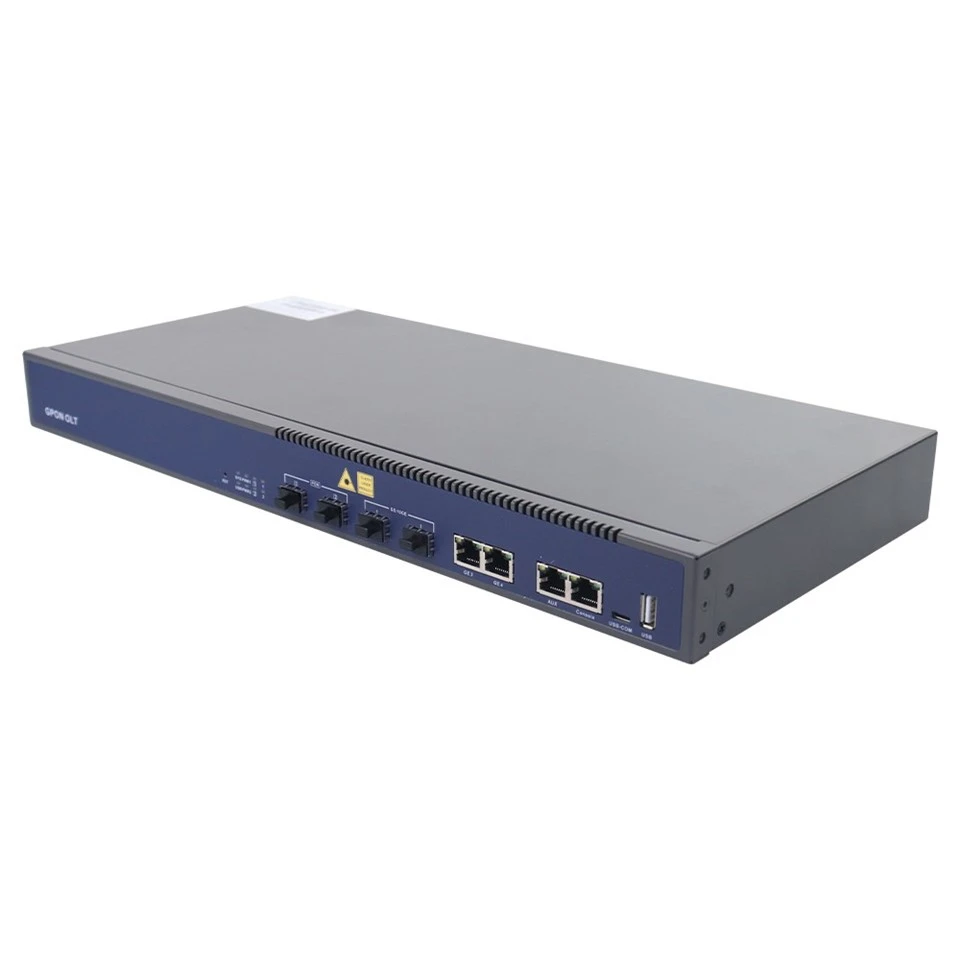

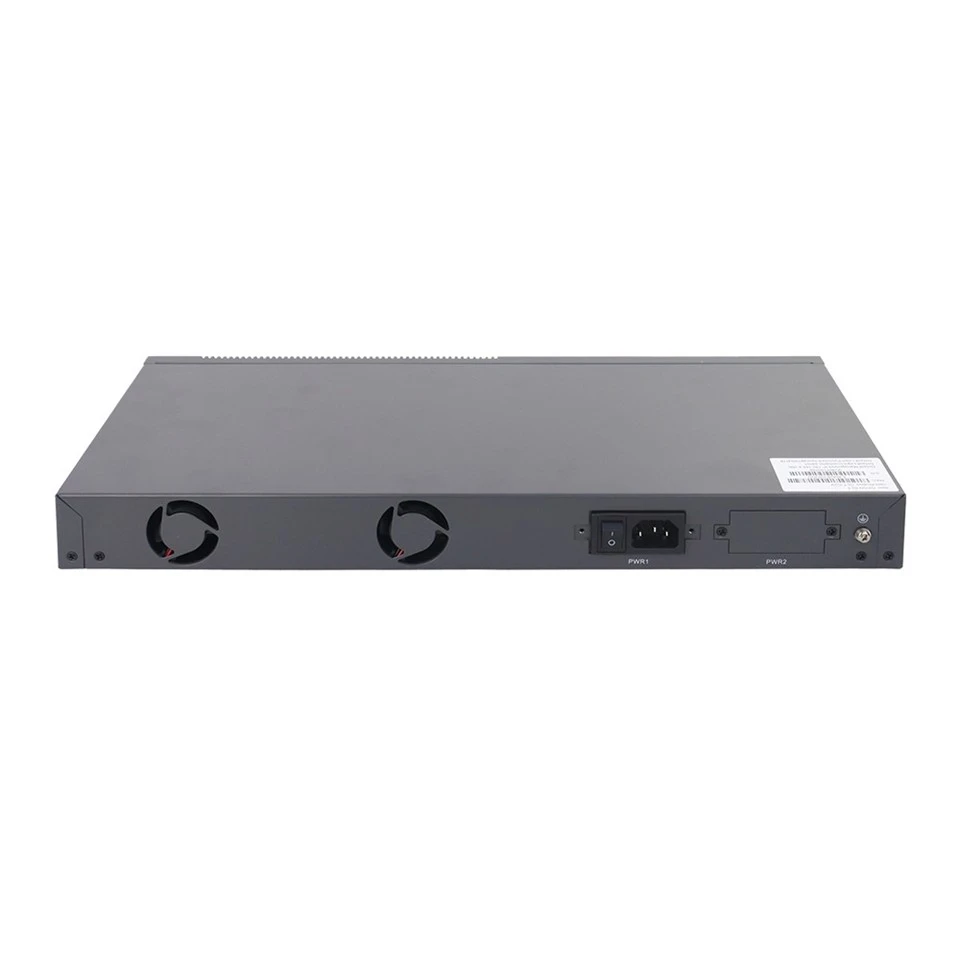

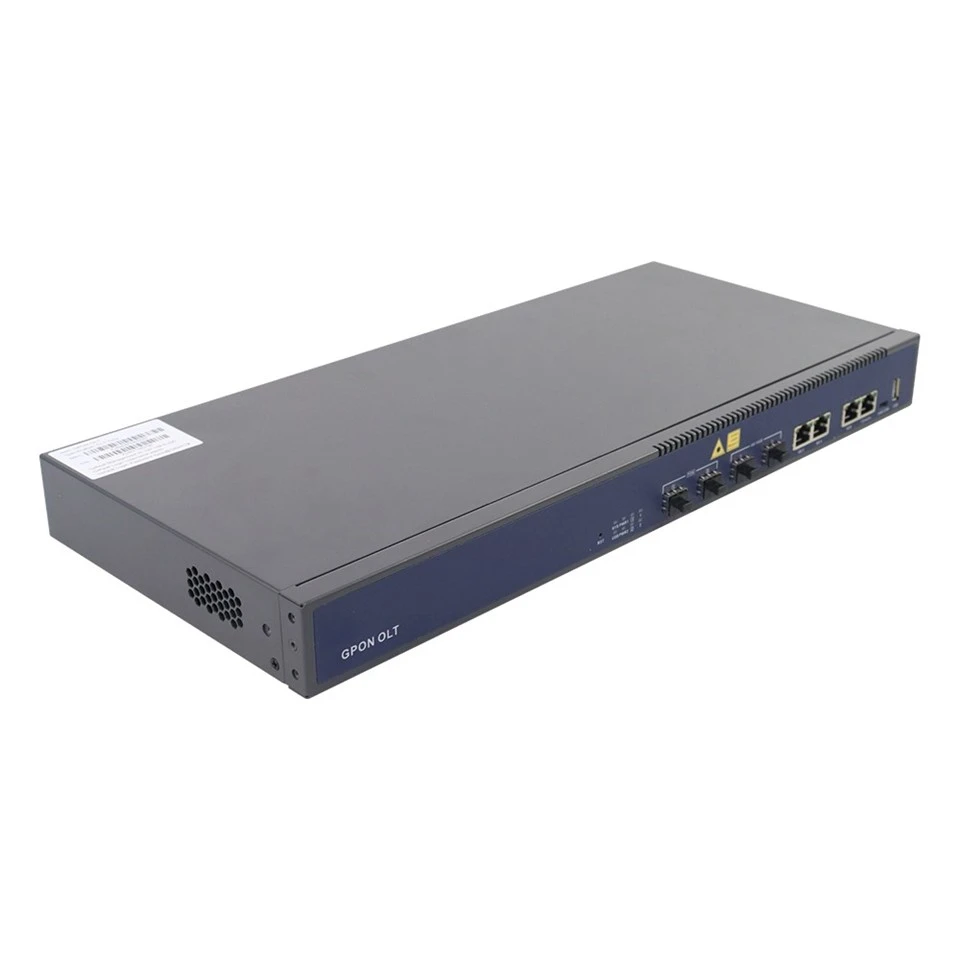

OLT-G2V Cost-Effective 1U Minimalist 10GE SFP+ 2 Pon Ports GPON OLT
-Description:
EPON product adopts a Point-to Multi-point network structure, and the passive optical fiber transmission. It can provide the multiple integrated services based on fast Ethernet platform TDM MAC, realize the two-way transmission of voice, data and image via the single optical fiber, and use the passive optical splitter so as to reduce the usage and maintenance work for backbone optical fiber.
OLT2PON is used in the center end for operators, and ONU is used in the customers' place. As the FTTx solution, there are the following features: Each OLT uplink can offer up to 1Gbps bandwidth, support high-speed internet, IPTV multicast/VoD, etc high bandwidth IP data service. OLT downlink can support up to 256ONU customers by the optical splitter. It's the passive optical network between OLT and ONU, greatly reduce the optical cable line investment for operators
-Feature
-Compatible with the international standard GEPON IEEE 802.3ah, IEEE802.3-2005.
-Compatible with the standard of China Telecom EPON V2.1 version.
-High reliability: Redundancy Backup for power supply
-Good intercommunication and compatibility: Communicate with other chip ONU and expand OAM management
-Plug and play for all modules in OLT system
-Advanced layer 2 switch technology
-SLA and QoS
-Powerful OAM: Support the remote management
-Support status detection and fault report
-Support to save configured parameters if power down
-Support to configure the work mode of user port(ONU), and auto-detection of MDI-MDIX
-Supports data encryption and decryption
-Support 802.1Q VLAN,
-Supports the remote reset and reboot
| Product | OLT-G2V | |
| Optical Features | Interface | SC |
| Wavelength | TX:1310nm;RX:1490nm | |
| Optical fiber | Single fiber | |
| Maximum splitting ratio | 1:128 | |
| Dimension | 442mm(Length)x 200 mm(width)x 43.6 mm(height) | |
| Weight | <5kg | |
| Power supply | four channels AC power supply, input voltage:110/220V; or three DC power supply ( Master Copy), input voltage: 48V (36V~72V DC) |
|
| Power consumption | Max: 35W | |
| Work temperature | 0 ºC ~ +50 ºC | |
| Storage temperature | -40 ºC ~ +85 ºC | |
| Relative humidity | 5% ~90% no condensation | |
| Port | Uplink:4GE ports which support SFP transceiver, and be configured the optical or Ethernet electrical port module; Downlink: 2-4 PON Ports are optional. Every PON port is already installed SFP transceiver, and be connected with ONU by optical splitter. |
|
