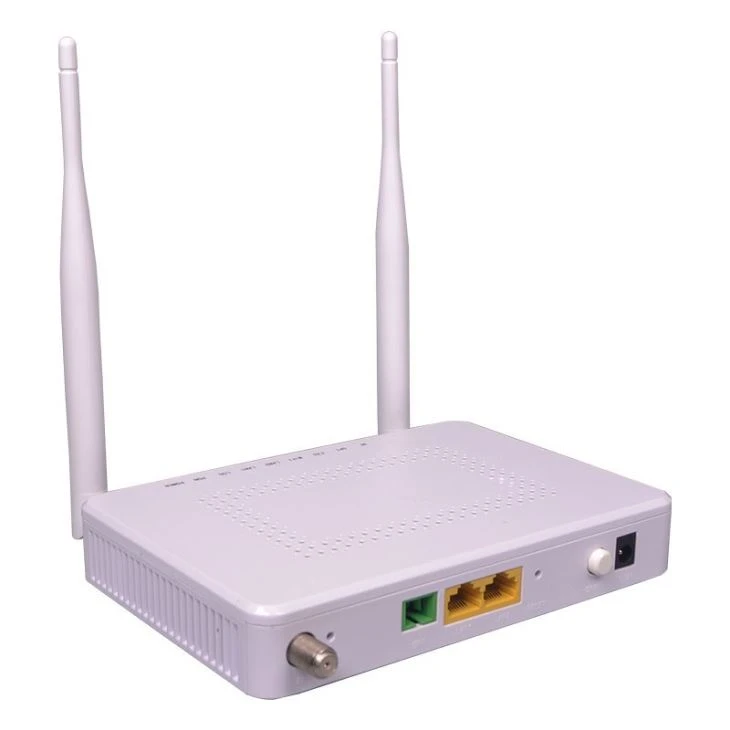

1GE 1FE CATV Wifi XPON ONU
1ge 1fe catv Wifi xpon onu
The uplink of 1GE 1FE CATV Wifi XPON ONU provides one PON interface, while downlink provides two Ethernet and one RF interfaces. 1ge 1fe catv Wifi xpon onu can realize optical access solutions such as FTTH (Fiber To The Home) and FTTB (Fiber To The Building). Besides, this 1ge 1fe catv Wifi xpon onu fully integrates the reliability, maintainability and security design of carrier-grade equipment, and provides customers with the last kilometer of broadband access to residential and corporate customers.
Hardware Specification of 1GE 1FE CATV Wifi XPON ONU
PON Interface | Interface Type | SC/PC, CLASS B+ |
Rate | Uplink: 1.25Gbps; Downlink: 2.5Gbps | |
User-Side Interface | 1*10/100BASE-T;1*10/100/1000BASE-T; 1*RF interface | |
Size (Mm) | 167(L)×118(W)×30(H) | |
Maximum Power Consumption | <8W | |
Weight | 200g | |
Operating Environment | Temperature: -10°C ~ 55°C, Humidity: 5% ~ 95% （no condensation） | |
Power Supply | External Power Adapter 12V/1A | |
Power Adapter Input | 100-240V AC, 50/60Hz | |
Power Interface Size | metal inner diameter: φ2.1±0.1mmouter diameter : φ5.5±0.1mm; length: 9.0±0.1mm | |
WLAN Module | Internal and external dual antenna, antenna gain 5db, antenna power 16~21dbm; Support 2.4GHz, 300M transmission rate | |
