Name: 2.4G 5G Wifi Router Xpon 4ge Catv Onu
Brand: Softel
SKU: 144662574

2.4G 5G wifi router xpon 4ge catv onu is a dual-band CATV type ONU

Send Inquiry

Download

Product Introduction

2.4G 5G wifi router xpon 4ge catv onu

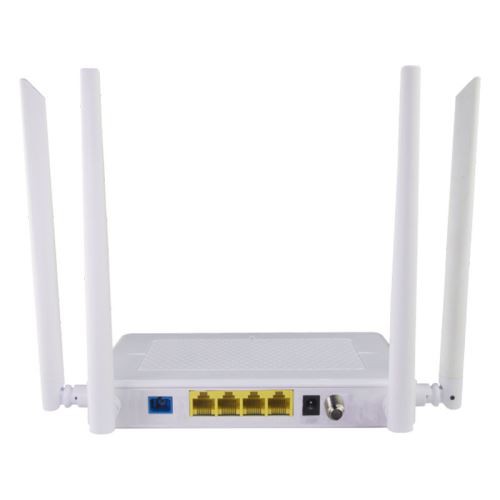

Product Display

2.4 & 5g wifi router xpon 4ge catv onu is one of the GPON optical network unit design to meet the requirement of the broadband access network. It apply in FTTH/FTTO to provide the data, video service based on the GPON network.

It’s fully meet the ITU-T technical standards and have good compatibility with third party manufacturers OLT.

It can integrate wireless function with meet 802.11 a/b/g/n/ac technical standards. At the same time, it also supports 2.4GHz/5GHz dual-band wireless signal. It has the characteristics of strong penetrating power and wide coverage. It can provide users with more efficient data transmission security.

Product Interface and LED Definitions

Interface

Specifications

Item		Parameter
Interface	PON Interface	1*GPON port, FSAN G.984.2 standard, Class B+ Downstream Data Rate：2.488Gbps Upstream Data Rate：1.244Gbps SC/PC single mode fiber 28dB Link loss and 20KM distance with 1:128
	CATV Interface	1 RF output F-Type Connector
	Ethernet Interface	4*10/100/1000M auto-negotiation Full/half duplex mode RJ45 connector Auto MDI/MDI-X 100m distance
	Power Interface	12V DC Power supply
Performance Parameters	PON Optical Parameter	Wavelength: Tx 1310nm, Rx1490nm Tx Optical Power: 0.5～5dBm Rx Sensitivity: -28dBm Saturation Optical Power: -8dBm
Performance Parameters	Data Transmission Parameter	PON Throughput: Downstream 2.488Gbit/s; Upstream 1.244Gbit/s Ethernet: 1000Mbps Packet Loss Ratio: <1*10E-12 latency: <1.5ms
Network Management	Management Mode	Standard compliant OMCI interface as defined by ITU-T G.984.4 Support TR069 and WEB management
Network Management	Management Function	Status monitor, Configuration management, Alarm management, Log management
Physical Features	Shell	White plastic casing
	Power	Power supply: DC 12V /1A Power consumption: <8.5W
	Physical Specifications	Item Dimension：240mm(L) x 210mm(W) x 24mm (H) Item weight：0.4kg
	Environmental Specifications	Operating temperature: 0 to 50ºC Storage temperature: -40 to 85ºC Operating humidity: 10% to 90%(Non-condensing) Storage humidity: 10% to 90%(Non-condensing)
