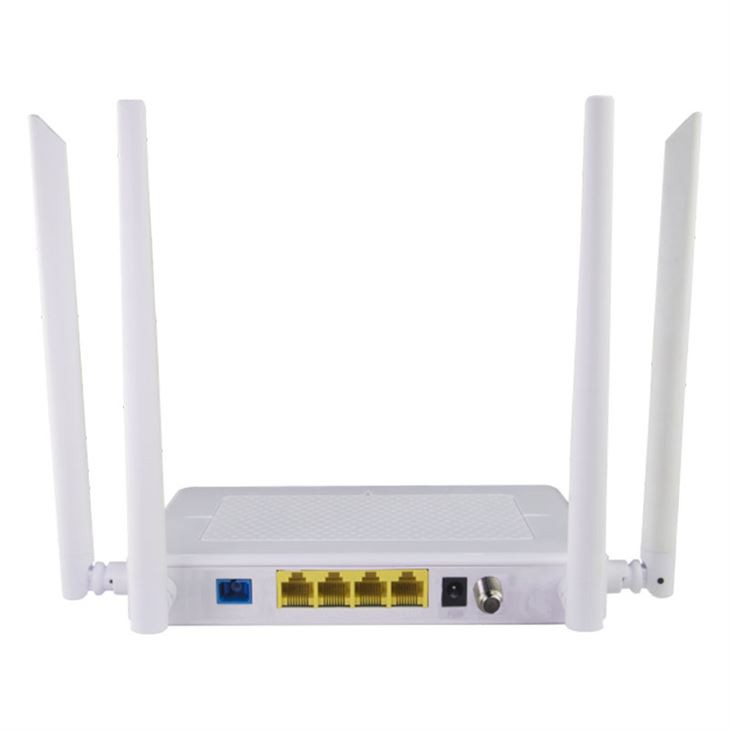

4GE Single-fiber CATV Dual-Band ONT

1

WIFI

WIFI

Blinking：Data is being transmitted

On：Wi-Fi function Opens

2

LAN1-4

GE port status

On: Ethernet connection is normal

Blinking: Data is being transmitted through the Ethernet port

Off: Ethernet connection is not set up

3

LOS

GPON optical signals

On: Optical power lower than receiver sensitivity ;

Off: Optical in normal

4

PON

ONU Register

On: Success to register to OLT

Blinking: In process of registering to OLT

Off: Failed to register to OLT;

5

CATV

CATV status

On：CATV optical normal

Off：The CATV signals are not received

6

PWR

Power status

On: The ONU is power on

Off: The ONU is Power off

Interface

PON Interface

1*GPON port, FSAN G.984.2 standard, Class B+

Downstream Data Rate：2.488Gbps

Upstream Data Rate：1.244Gbps

SC/PC single mode fiber

28dB Link loss and 20KM distance with 1:128

CATV Interface

1 RF output

F-Type Connector

Ethernet Interface

4*10/100/1000M auto-negotiation
Full/half duplex mode
RJ45 connector
Auto MDI/MDI-X
100m distance

Power Interface

12V DC Power supply

Performance Parameters

PON

Optical

Parameter

Wavelength: Tx 1310nm, Rx1490nm
Tx Optical Power: 0.5～5dBm
Rx Sensitivity: -28dBm
Saturation Optical Power: -8dBm

Data Transmission
Parameter

PON Throughput: Downstream 2.488Gbit/s; Upstream 1.244Gbit/s
Ethernet: 1000Mbps
Packet Loss Ratio: <1*10E-12
latency: <1.5ms

Network Management

Management Mode

Standard compliant OMCI interface as defined by ITU-T G.984.4

Support TR069 and WEB management

Management Function

Status monitor, Configuration management, Alarm management, Log management

Physical Features

Shell

White plastic casing

Power

Power supply: DC 12V /1A

Power consumption: <8.5W

Physical
Specifications

Item Dimension：240mm(L) x 210mm(W) x 24mm (H)

Item weight：0.4kg

Environmental
Specifications

Operating temperature: 0 to 50ºC
Storage temperature: -40 to 85ºC
Operating humidity: 10% to 90%(Non-condensing)
Storage humidity: 10% to 90%(Non-condensing)
