Xpon Onu Wifi
video

Xpon Onu Wifi

xpon onu wifi can provide users with more efficient data transmission security.
Send Inquiry
Product Introduction

                                                 xpon onu wifi

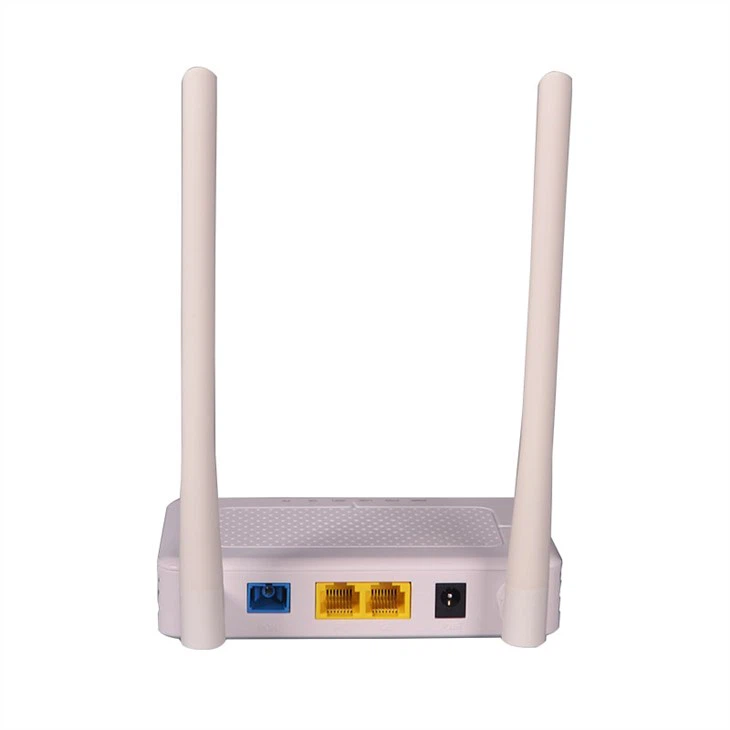

Product Display


 xpon onu wifi

 xpon onu wifi

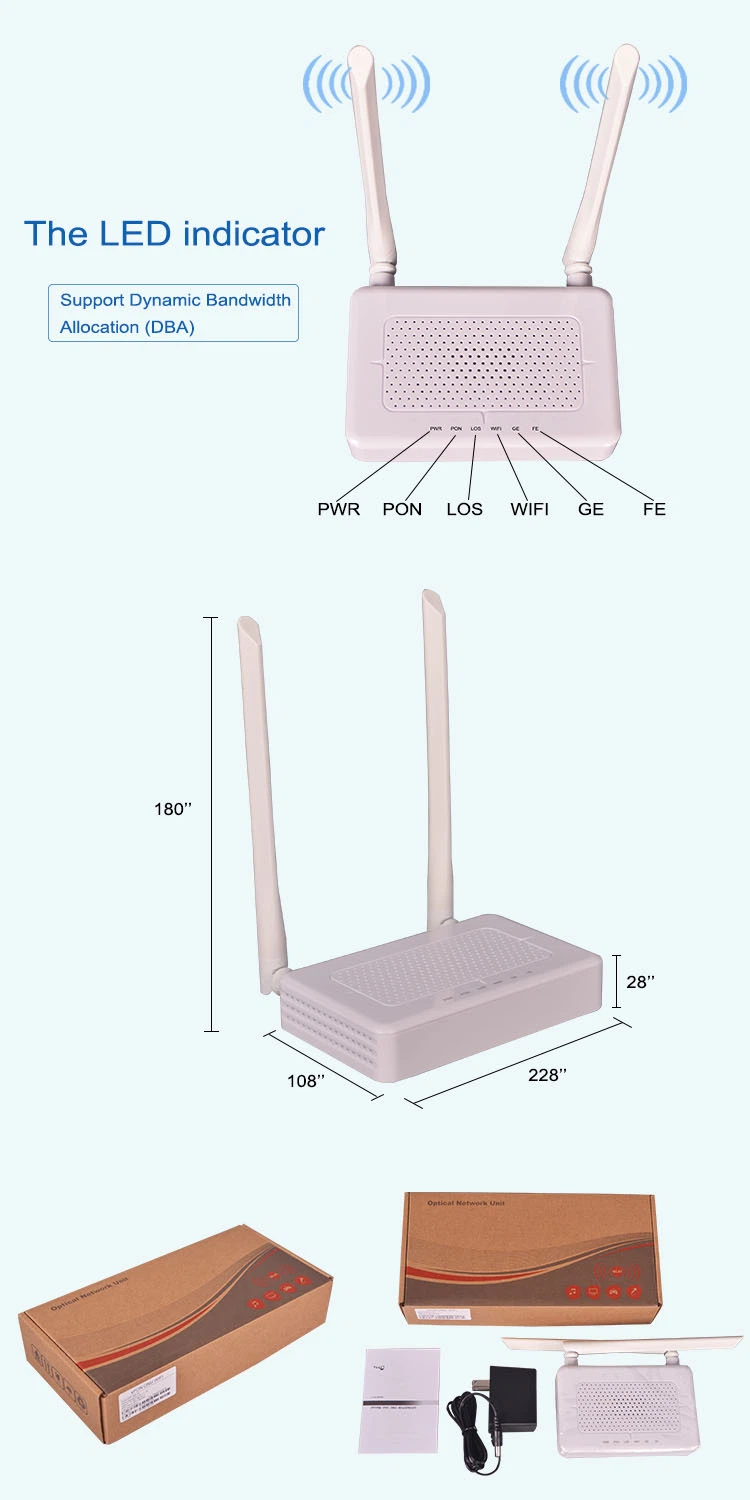

Detail Image



 xpon onu wifi

Specification


Item
Parameter




Interface


PON Interface
GPON/EPON mode adaptive
1*GPON port, FSAN G.984.2 standard, support for backward compatibility with EPON
SC/PC single mode fiber


Ethernet Interface
1*10/100/1000M and 1*10/100M auto-negotiation Full/half duplex mode
RJ45 connector
Auto MDI/MDI-X 100m distance
Power Interface
12V DC Power supply


Performance Parameters

PON
Optical Parameter
Wavelength: Tx 1310nm, Rx1490nm Tx Optical Power: 0.5~5dBm
Rx Sensitivity: -28dBm Saturation Optical Power: -8dBm

Data Transmission Parameter
PON Throughput: Downstream 2.488Gbit/s; Upstream 1.244Gbit/s
Ethernet: 100Mbps or 1000Mbps Packet Loss Ratio: <1*10E-12
latency: <1.5ms



Physical Features
Shell
White plastic casing
Power
<5W, 12V/0.5A power supply adapter
Physical
Specifications
Item Dimension:125mm(L) x80mm(W) x 25mm (H)
Item weight:0.2kg

Environmental Specifications
Operating temperature: 0 to 50ºC Storage temperature: -40 to 85ºC
Operating humidity: 10% to 90%(Non-condensing)
Storage humidity: 10% to 90%(Non-condensing)

 xpon onu wifi

Compnay Information


Company Profile

Packing&Shipping


Packing&Shipping(1)

FAQ


1. What about the lead time?

Basically speaking, if it is in stock, we ship the products within 3~5 working days after the deposit is confirmed. If not, the lead time depends.


2. How about the shipping?

When the package is small, we usually choose FedEx, DHL, TNT, and UPS and so on, while the goods have high weight and volume, we suggest using air or sea shipment.


3. How can I place an order?

(1) Negotiation is agreed upon for the product price and specifications.

(2) The Proforma invoice will be sent for confirmation.

(3) After the agreement on the proforma invoice, the customer makes the deposit.

(4) Manufacturing will be started as soon as the payment is confirmed by our bank.

(5) Ship out the goods within the agreed delivery deadline.
