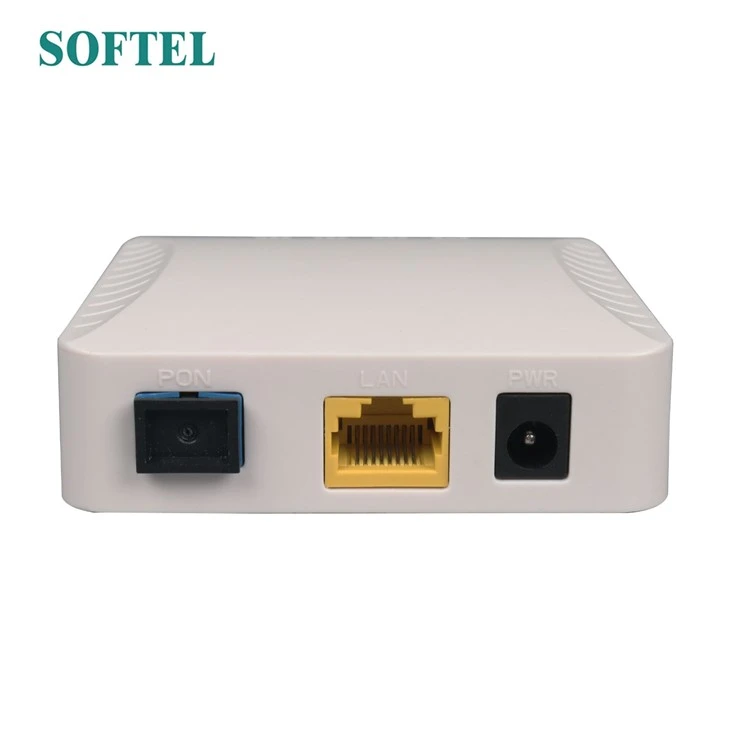

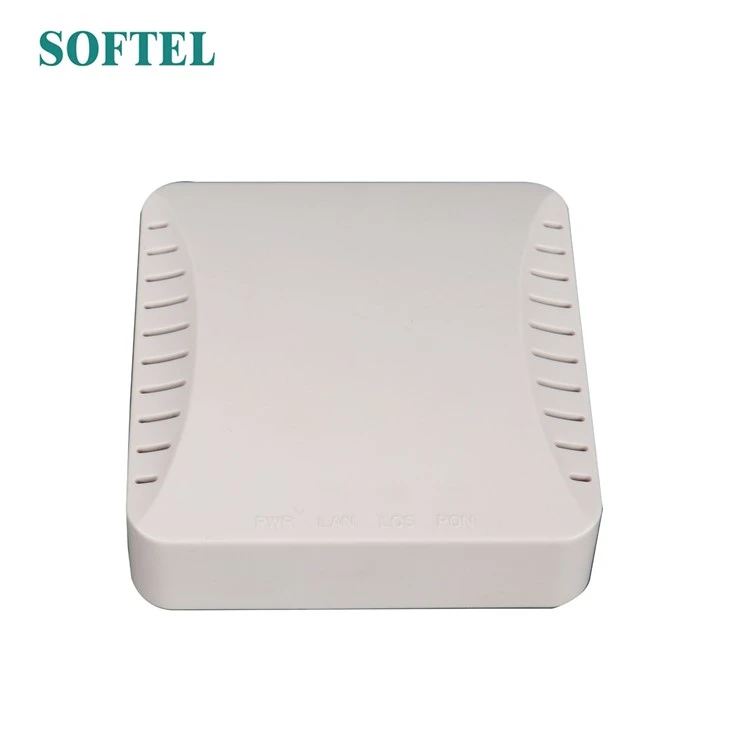

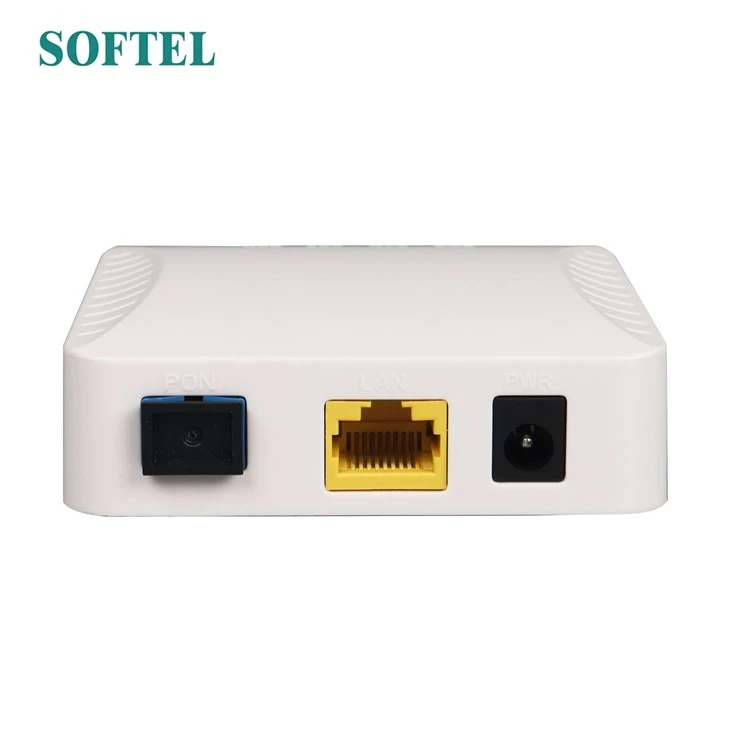

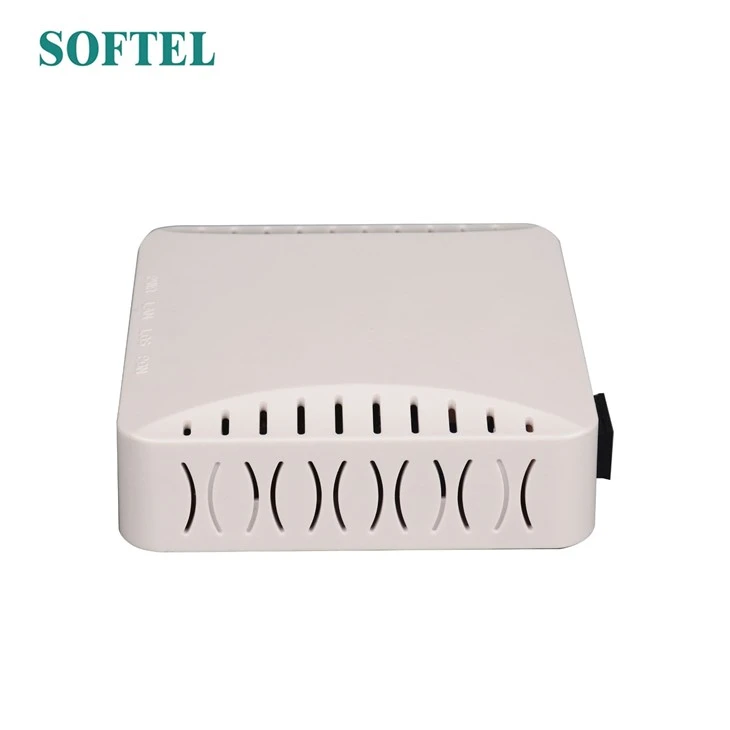

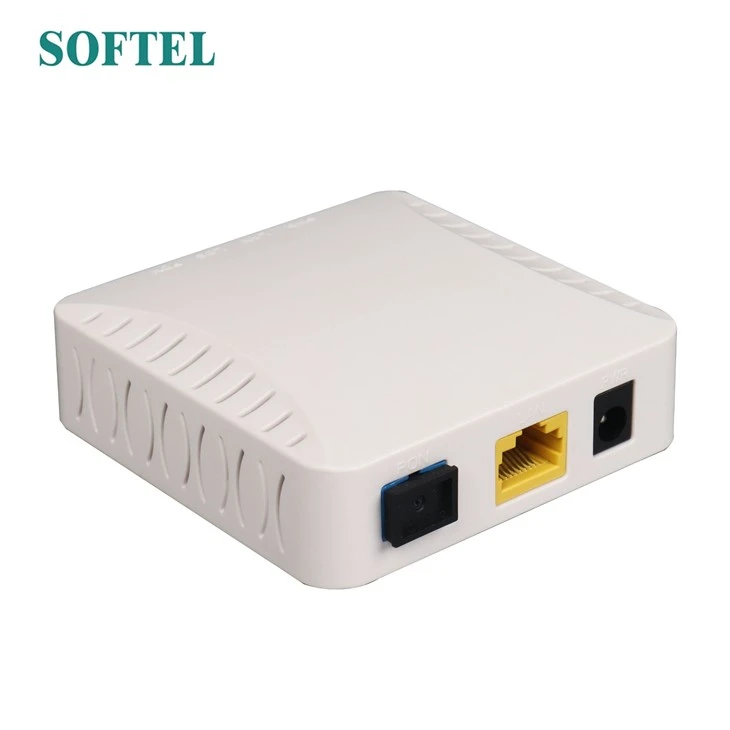

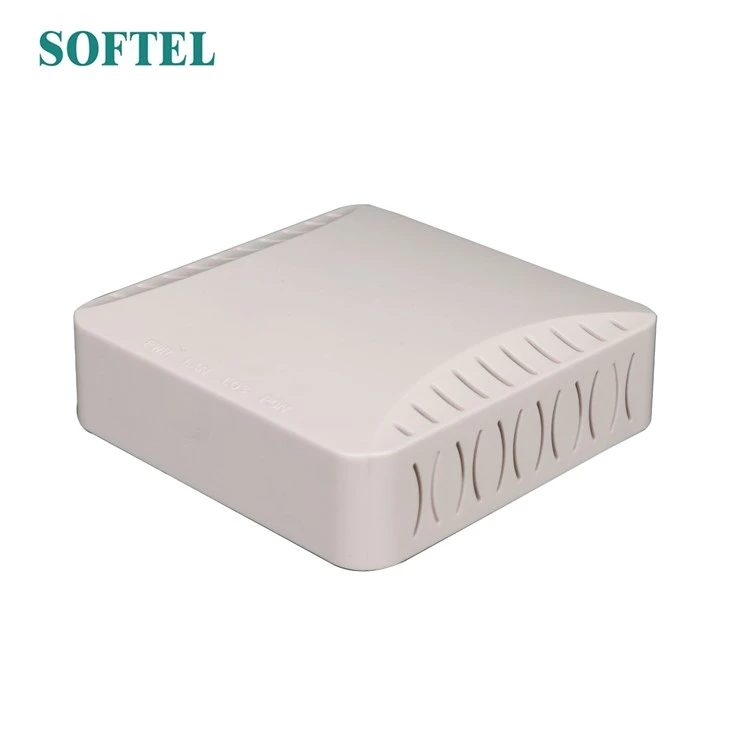

ONT-1GE is a residential gateway device with routing functions for XPON ONU and LAN Switch for residential and SOHO users, which is in line with ITU-T G.984 and IEEE802.3ah. The uplink of ONT-1GE provides one PON interface, while downlink provides one Ethernet. It can realize optical access solutions such as FTTH (Fiber To The Home) and FTTB (Fiber To The Building). It fully integrates the reliability, maintainability and security design of carrier-grade equipment, and provides customers with the last kilometer of broadband access to residential and corporate customers.

Send Inquiry

Product Introduction

Product Description

Xpon Hgu 1ge ONU with Routing Function for FTTH FTTB Access

ONT-1GE Xpon ONU Gateway

The ONT-1GE is a high-performance residential gateway designed for XPON (EPON/GPON) applications, integrating routing and LAN switching functions for residential and SOHO users. Compliant with ITU-T G.984 and IEEE 802.3ah standards, it delivers reliable Fiber-to-the-Home (FTTH) and Fiber-to-the-Building (FTTB) solutions.

Key Capabilities:
The device features a single PON uplink port and one Ethernet downlink port. It seamlessly integrates carrier-grade reliability, maintainability, and security, providing corporate and residential customers with robust "last mile" broadband access.

Core Features:

Standards Compliance: Compliant with IEEE 802.3ah (EPON) & ITU-T G.984.x (GPON).

Network Protocol: Supports IPv4 & IPv6 management and transmission.

Remote Management: Supports TR-069 remote configuration and maintenance.

Routing & NAT: Layer 3 gateway with hardware NAT acceleration.

Flexible Networking: Supports multiple WAN configurations with Route/Bridge modes.

Advanced Networking: Layer 2 features including 802.1Q VLAN, 802.1P QoS, and ACL.

Multicast: Supports IGMP V2 and MLD proxy/snooping.

Security & Services: Supports DDNS, ALG, DMZ, Firewall, and UPnP.

Error Correction: Supports bi-directional FEC.

VPN Support: Supports VEIP and PPTP.

Product Highlights:

Universal Compatibility: Docking compatible with OLTs from various manufacturers.

Auto-Adaptation: Automatically adapts to EPON or GPON modes based on the peer OLT.

Multi-WAN Support: Supports multiple WAN configurations.

Flexible WAN Modes: Supports WAN PPPoE, DHCP, Static IP, and Bridge modes.

High Performance: Fast transmission speeds via hardware NAT.

Hardware parameters
interface	1* G/ EPON+1*GE
Power adapter input	100V-240V AC, 50Hz-60Hz
Power Supply	DC 12V/1.5A
Indicator light	POWER/PON/LOS/LAN1/ LAN2 /2.4G/5G /RF/OPT
Button	Power switch Button, Reset Button, WLAN Button, WPS Button
Power Consumption	<18W
Static power consumption	7.5 W
Dimension	78mm x 78mm x 21mm(L×W×H Without antenna)
Net Weight	0.06kg

Interface parameters
PON interface	Interface Type: SC/APC, CLASS B+ Transmission distance: 0 to 20km lWorking wavelength: Up 1310nm; Down 1490nm; RX Optical power sensitivity: -27dBm Transmission rate: GPON: Up 1.244Gbps;Down 2.488Gbps EPON: Up 1.244Gbps;Down 1.244Gbps
Ethernet port	Interface type:2* RJ45 Interface parameters:10/100/1000BASE-T
