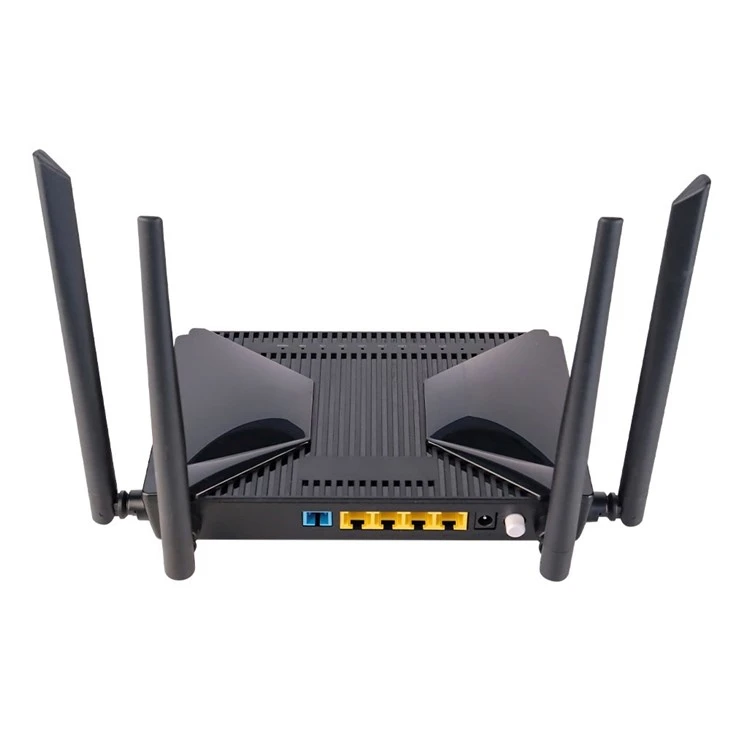

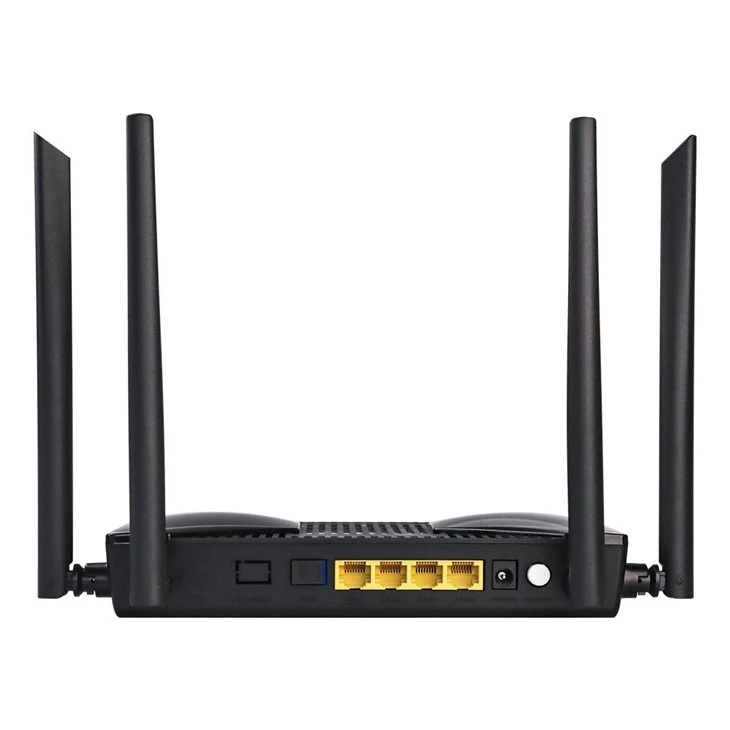

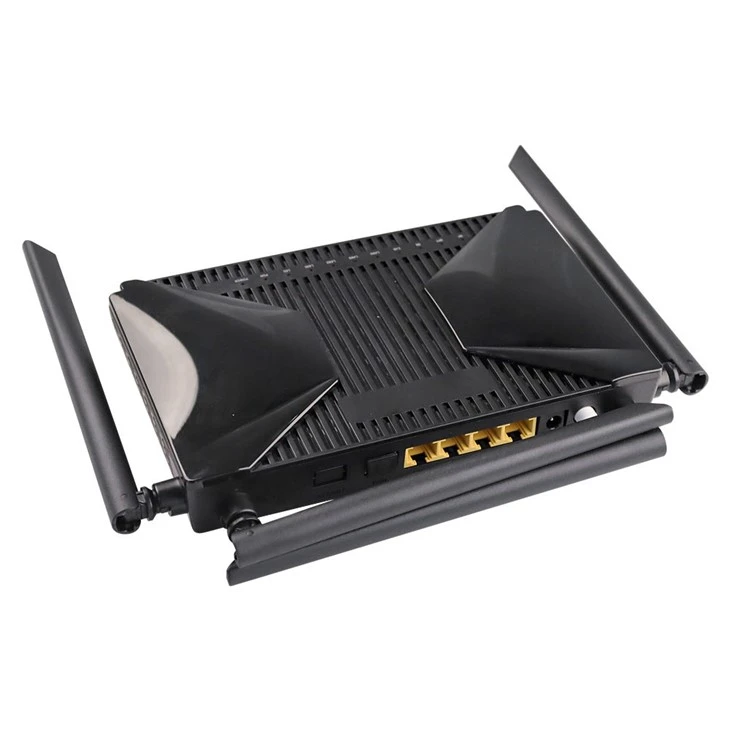

Ax3000 Dual Band WiFi6 Onu
ONT-4630H is launched to be oriented to multi-service integration network as an optical network unit device, which belongs to XPON HGU terminal for FTTH/O scenario. It configures four 10/100/1000Mbps ports, WiFi6 (2.4G+5G) port that providing with high-speed data services to users.
Send Inquiry
Product Introduction
XPON HGU 4GE+WIFI6 AX3000
Introduction
ONT-4630H is launched to be oriented to multi-service integration network as an optical network unit device, which belongs to XPON HGU terminal for FTTH/O scenario. It configures four 10/100/1000Mbps ports, WiFi6 (2.4G+5G) port that providing with high-speed data services to users.
Functional Features
Compliance with IEEE 802.3ah(EPON) & ITU-T G.984.x(GPON) standard
Compliance with IEEE802.11b/g/n/ax 2.4G & IEEE802.11a/n/ac/ax 5G WIFI standard
Support IPV4 & IPV6 Management and transmission
Support TR-069 remote configuration and maintenance
Support Layer 3 gateway with hardware NAT
Support Multiple WAN with Route/Bridge mode
Support Layer 2 802.1Q VLAN, 802.1P QoS, ACL etc
Support IGMP V2 and MLD proxy/ snooping
Support DDNS, ALG, DMZ, Firewall and UPNP service
Support CATV interface for video service
Support bi-directional FEC
Compliance with IEEE802.11b/g/n/ax 2.4G & IEEE802.11a/n/ac/ax 5G WIFI standard
Support IPV4 & IPV6 Management and transmission
Support TR-069 remote configuration and maintenance
Support Layer 3 gateway with hardware NAT
Support Multiple WAN with Route/Bridge mode
Support Layer 2 802.1Q VLAN, 802.1P QoS, ACL etc
Support IGMP V2 and MLD proxy/ snooping
Support DDNS, ALG, DMZ, Firewall and UPNP service
Support CATV interface for video service
Support bi-directional FEC
Specification
|
PON interface |
1* G/EPON+4*GE+2.4G/5.8G WLAN+1*RF
|
|
Power adapter input |
100V-240V AC, 50Hz-60Hz
|
|
Power Supply |
DC 12V/1.5A
|
|
Indicator light |
POWER/PON/LOS/LAN1/LAN2/LAN3/LAN4/2.4G/5G
|
| Button | Power switch Button, Reset Button, WLAN Button, WPS Button |
| Power Consumption | <18W |
| Working temperature | -20ºC~+55ºC |
| Environment humidity | 5% ~ 95% (non-condensing) |
| Dimension | 180mm x 133mm x 28mm (L×W×H Without antenna) |
| Net Weight | 0.31Kg |
| PON Interface: | Interface Type: SC/APC, CLASS B+ Transmission distance: 0~20km Working wavelength: Up 1310nm, Down 1490nm RX Optical power sensitivity: -27dBm Transmission rate: GPON: Up 1.244Gbps;Down 2.488Gbps EPON: Up 1.244Gbps;Down 1.244Gbps |
| Ethernet Interface | Interface type:4* RJ45 Interface parameters:10/100/1000BASE-T |
| Wireless: | Interface type:External 4*2T2R External antenna Antenna gain: 5dBi Interface maximum rate: 2.4G WLAN: 573.5Mbps 5.8G WLAN: 2402Mbps Interface working mode: 2.4G WLAN:802.11 b/g/n/ax 5.8G WLAN:802.11 a/n/ac/ax |
Hardware Specifications:
PON Interface:
Ethernet Interface :
Wireless:
CATV Interface:
POTS Interface:
