Wifi 6 XPON ONU
WiFi 6 XPON ONU
ONT-4GE-VUW618 (4GE+1POTS+WiFi6 XPON HGU ONT) is a broadband access device specially designed to meet the needs of fixed network operators for FTTH and triple play services.
The ONT is based on high-performance chip solutions , supports XPON dual-mode technology ( EPON and GPON) , and also supports IEEE802.11b/g/n/ac/ax WiFi 6 technology and other Layer 2/Layer 3 functions, providing data service for carrier-grade FTTH applications. In addition, the ONT also supports the OAM/OMCI protocol, and we can configure or manage various services of the ONT on the SOFTEL OLT. The ONT has high reliability , is easy to manage and maintain , and has QoS guarantees for various services . It conforms to a series of international technical standards such as IEEE802.3ah and ITU-T G.984.

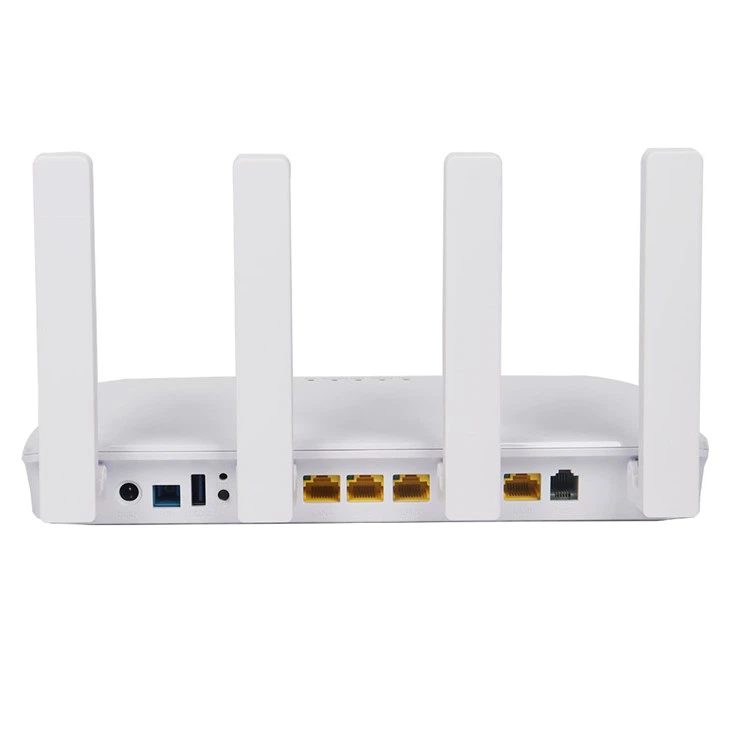

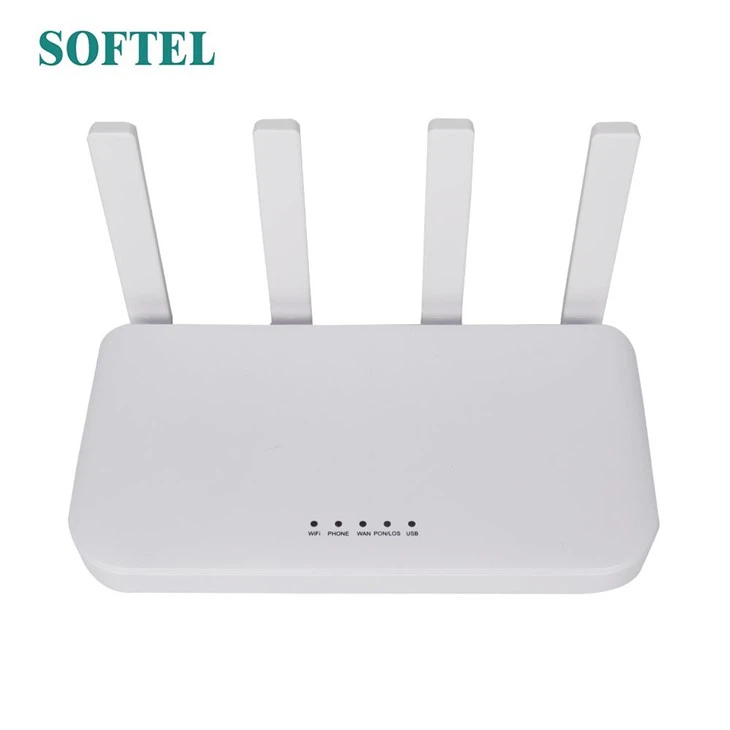

Picture of WiFi 6 XPON ONU

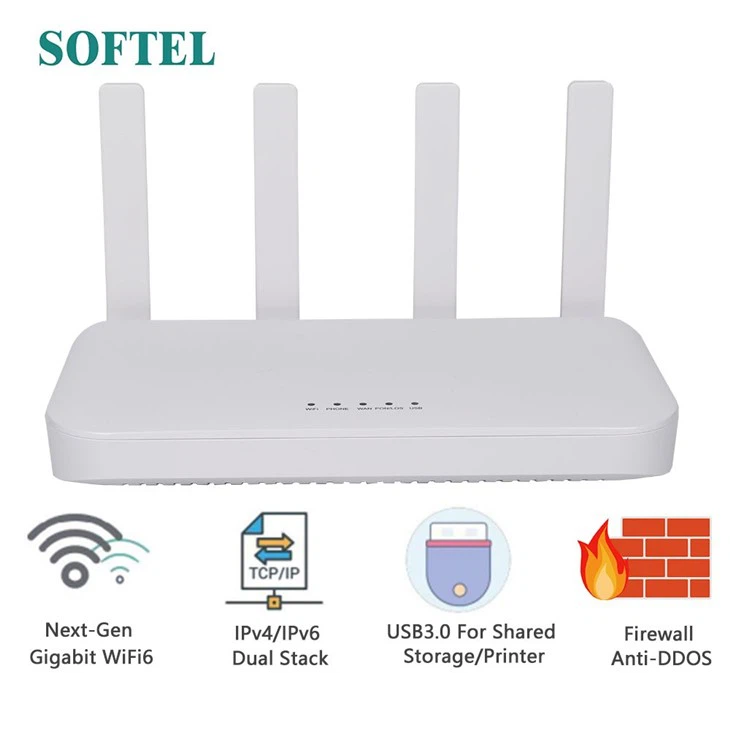

Features
|
RTL9607C+ RTL8832AR+RTL8192XAR WiFi6 Gig+ performance |
Next-Gen Gigabit WiFi6 2.4GHz & 5GHz Dual Band Speed up to 1.8 Gbps |
IPv4/IPv6 Dual Stack |
USB3.0 Interface For Shared Storage/Printer |
Application Chart
Hardware Specifications
|
Dimension |
250mm×145mm×36mm(L×W×H) |
|
Net weight |
0.34Kg |
|
Operating condition |
Operating temp:0 ~ +55.C Operating humidity:5 ~ 90% (non-condensed) |
|
Storing condition |
Storing temp: -30 ~ +60.C Storing humidity: 5 ~ 90% (non-condensed) |
|
Power adapter |
DC 12V, 1.5A, external AC-DC power adaptor |
|
Power supply |
≤18W |
|
Interface |
1XPON+4GE+1POTS+USB3.0+WiFi6 |
|
Indicators |
PWR,PON ,LOS,WAN,WiFi,FXS, ETH1~4,WPS,USB |
Interface parameter
|
PON Interface |
• 1XPON port(EPON PX20+ and GPON Class B+) • SC single mode, SC/UPC connector • TX optical power: 0～+4dBm • RX sensitivity: -27dBm • Overload optical power: -3dBm(EPON) or - 8dBm(GPON) • Transmission distance: 20KM • Wavelength: TX 1310nm, RX1490nm |
|
User interface |
• 4×GE, Auto-negotiation,RJ45 ports • 1×POTS RJ11 Connector |
|
Antenna |
4 ×5dBi external antennas |
|
USB |
1× USB 3.0 for Shared Storage/Printer |
Function Data
|
O&M |
• WEB/TELNET/OAM/OMCI/TR069 • Support private OAM/OMCI protocol and Unified network management of SOFTEL OLT |
|
Internet connection |
Support Routing Mode |
|
Multicast |
• IGMP v1/v2/v3, IGMP snooping • MLD v1/v2 snooping |
|
VoIP |
• SIP and IMS SIP • G.711a/G.711u/G.722/G.729 Codec • Echo cancellation,VAD/CNG,DTMF Relay • T.30/T.38 FAX • Caller Identification/Call Waiting/Call Forwarding/Call Transfer/Call Hold/3-way Conference • Line testing according to GR-909 |
|
WIFI |
• Wi-Fi 6: 802. 11a/n/ac/ax 5GHz & 802. 11g/b/n/ax 2.4GHz • WiFi Encryption:WEP-64/WEP- 128/ WPA/WPA2/WPA3 • Support OFDMA, MU-MIMO, Dynamic QoS, 1024-QAM • Smart Connect for one Wi-Fi name - One SSID for 2.4GHz and 5GHz dual band |
|
L2 |
802. 1D&802. 1ad bridge, 802. 1p Cos,802. 1Q VLAN |
|
L3 |
IPv4/IPv6, DHCP Client/Server,PPPoE, NAT, DMZ, DDNS |
|
Firewall |
Anti-DDOS, Filtering Based on ACL/MAC /URL |
|
Product Name |
Product Description |

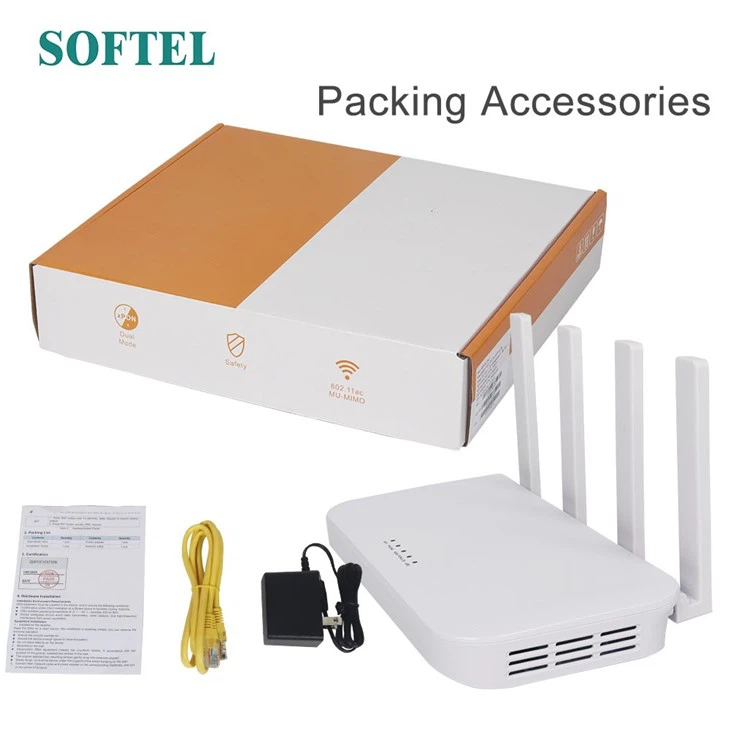

Accessories |
|
ONT-4GE-VUW618 |
1XPON+4GE+1POTS+WiFi6 |
AC-DC power adaptor: DC12V / 1.5A |
Company information
FAQ
1. What are the payment terms that you support?
Usually, we accept T/T, PayPal, Western Union, and so on. You can select the terms of payment which is more convenient for you.
2. What about the lead time?
Usually, if there's stock, we ship the goods within 3~5 working days after the deposit is confirmed. If it is out of stock, the lead time depends.
3. How about the shipping?
When the package is small, we normally choose FedEx, DHL, TNT, and UPS and so on, while the goods have high weight and volume, we suggest using air or sea shipment.
4. How can I place an order?
(1) Negotiation is agreed upon for the product price and specifications.
(2) The Proforma invoice will be sent for confirmation.
(3) After the agreement on the proforma invoice, the customer makes the deposit.
(4) Manufacturing will be started as soon as the payment is confirmed by our bank.
(5) Ship out the goods within the agreed delivery deadline.
5. Can you do OEM for us?
Yes. If there is a certain order quantity, we can do OEM including printing, logo, and customized model for you.
6. How about the Warranty?
There are 12 months for the warranty.
