XPON ONU 1GE

XPON ONU 1GE



ONT-1GEX XPON 1GE ONU is a versatile optical network terminal device designed to meet the diverse deployment requirements of telecom service providers. It has a wide range of applications, especially in the following areas: in-office fiber broadband access (FTTO), desktop fiber access (FTTD), home fiber-to-home (FTTH), small office or home office (SOHO) network access, and video surveillance systems.

The hardware core of the ONU is based on a first-class high-performance chip platform with processing capabilities of Layer 2 and 3 protocols, and is designed to carry carrier-grade FTTH high-reliability data services. It exhibits exceptional operational robustness over a wide temperature range, ensuring consistent performance in various environments.

In addition, ONT-1GEX integrates a high-strength security protection (firewall) mechanism, convenient O&M management tools, and provides refined quality of service (QoS) guarantees for various types of service traffic. The equipment strictly complies with many important international communication standards such as IEEE802.3ah, ITU-T G.984, etc.





Hardware Parameter

Dimension	82mm×82mm×25mm(L×W×H)
Net weight	0.085Kg
Operating condition	• Operating temp: -10 ~ +55.C • Operating humidity: 5 ~ 95% (non-condensing)
Storing condition	• Storing temp: -40 ~ +70.C • Storing humidity: 5~ 95% (non-condensing)
Power adapter	DC 12V, 0.5A, external AC-DC power adaptor
Power supply	≤4W
Interfaces	1GE
Indicators	SYS, LINK/ACT, REG





Interface Parameter

PON interface	• 1 XPON port(EPON PX20+ & GPON Class B+) • SC single mode, SC/UPC connector • TX optical power: 0～+4dBm • RX sensitivity: -27dBm • Overload optical power: -3dBm(EPON) or - 8dBm(GPON) • Transmission distance: 20KM • Wavelength: TX 1310nm, RX1490nm

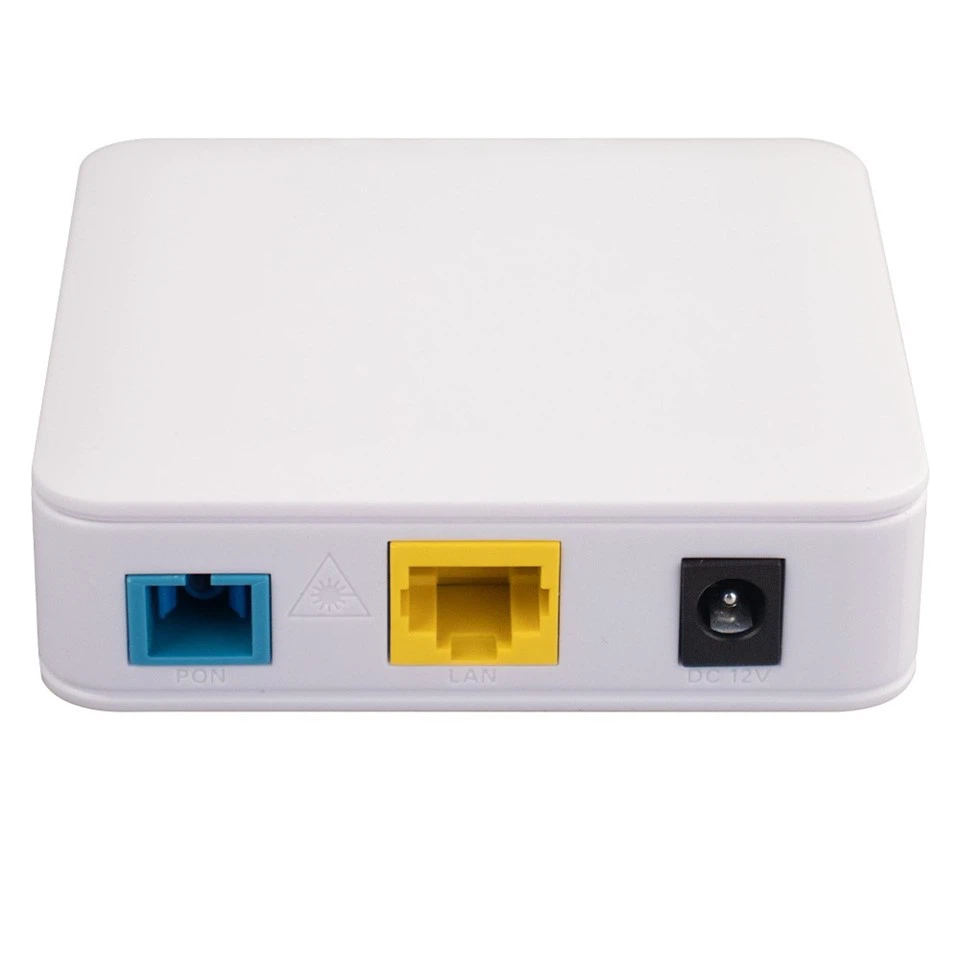

LAN interface	1*GE, Auto-negotiation RJ45 connectors



Function Data

XPON Mode	Dual mode,Auto-access to EPON/GPON OLT
Uplink Mode	Bridging and Routing Mode
Abnormal protection	Detecting Rogue ONU, Hardware Dying Gasp
Firewall	DDOS, Filtering Based on ACL/MAC/URL









Company introduction and certificate



Are XPON 1GE ONU devices compatible with OLT devices from major carriers around the world?

XPON 1GE ONU devices strictly follow international common technical standards such as IEEE802.3ah and ITU-T G.984, and after multiple rounds of compatibility testing, they can achieve stable docking with OLT devices from mainstream global brands such as Huawei, ZTE, and Nokia, and can meet the network deployment needs of operators in different countries and regions.



Has the device passed the relevant certifications of the target export country or region?
Yes, this equipment has passed multiple international certifications such as CE, and we can provide additional certification support required locally according to specific needs for different export regions to ensure compliant sales and use of the equipment in target markets.

Can you provide customized services according to the purchase volume of ONU, such as equipment appearance, interface configuration, etc.?
Yes, we have factory, and support customized services. If the purchase volume reaches a certain scale, the equipment design, number and type of interfaces can be adjusted according to the needs of foreign investors, and a multilingual version of the management interface can be provided to facilitate the operation of local operation and maintenance personnel.



How stable is the xpon onu 1ge operating in extreme temperature environments?

The equipment has a wide temperature working capability, can operate stably in the temperature range of -40°C to 70°C, and can adapt to various complex outdoor and industrial environments such as high temperature and severe cold, meeting the needs of climatic conditions in different regions.

How to ensure the security of data transmission on ont-1gex?

The device is equipped with a powerful firewall function and supports multiple encryption protocols to effectively prevent network attacks and data leaks. At the same time, it has a complete access control mechanism, which can finely manage user permissions to ensure the security and confidentiality of data transmission.
