Mini EDFA
The product is compact, easy to install and debug,used for 1550nm optical signal relay transmission in general power supply environment.
Send Inquiry
Product Introduction

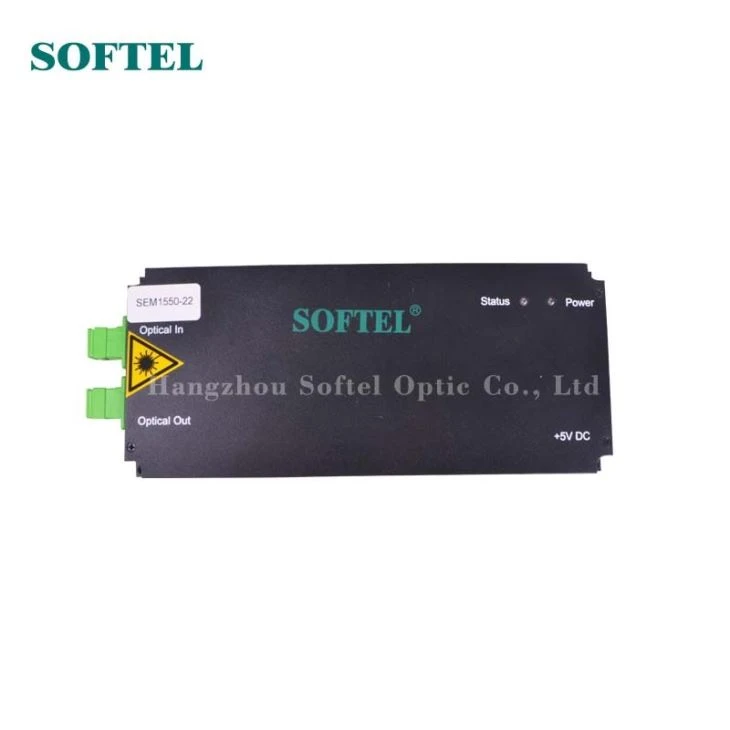

Mini EDFA
Features
Select internationally renowned brands oflow noise pump lasers.
Mini EDFA has low distortion, wide band, high output optical.
Imported high-performance Erbium-doped fiber, high energy conversion
32-bit ARM processor, light control output accuracy of ±1dBm.
Optical power receiving range -5dBm ~ +10dBm, optical power output 13~24dBm.
Operating mode
All control circuits and devices use high-efficiency switching chips, and the overall power consumption is≤10W.
External 9V power supply, power connector can select national standard, European standard, or American.
Built-in lithium battery,to ensure equiptment can go on work after power.
Product Paramenters of Mini EDFA
| Item | Technical Parameter | Note |
| Bandwidth | 1535~1565nm | |
| Input Power Range | -5dBm~ +10dBm | Nominal input + 3 dBm |
| Output Power Range | (13~14)dBm | |
| Output Power Stability | ±0.1dBm | |
| Noise Figure | ≤5.0dB | @+0dBm input,λ=1550nm |
Return |
Input | ≥45dB |
| Output | ≥45dB | |
| Optical Connector Type | SC/APC(Standard)& FC/APC | Customizable |
| C/N | ≥50dB | Test condition：GT/T 184-2002 |
| C/CTB | ≥63dB | |
| C/CSO | ≥63dB | |
| Power Supply | DC 9V | External power supply |
| Power consumption | ≤10W | |
| Operating Temperature | -5~+42℃ | |
| Storage Temperature Range | -30~+70℃ | |
| Humidity | 95%(non-condensing) | |
| Size | 310(L)*243(W)*81(H)mm | |
| Weight(with packing box) | 1.2Kg | Equipment & Power Supply |
