XGS-PON 10G EDFA

It provides a high stability but low cost solution for the triple-play and large area coverage of FTTH.

Send Inquiry

Product Introduction

XGS-PON 10G EDFA

I. Product Overview

SPA Series 1550nm high power fiber amplifier adopts two-stage amplification, the first stage adopts low-noise EDFA, the second stage adopts high-power EYDFA, the total output optical power can reach 41dBm. It can replace several or dozens of EDFA, which can greatly reduce the cost of network building and maintenance and reduce the space of head-end. Each output port is built in with CWDM to multiplex CATV signal and OLT PON Data flow. The device will play an increasingly important role in the process of continuous extension and expansion of optical fiber network. It provides a high stability but low cost solution for the triple-play and large area coverage of FTTH.

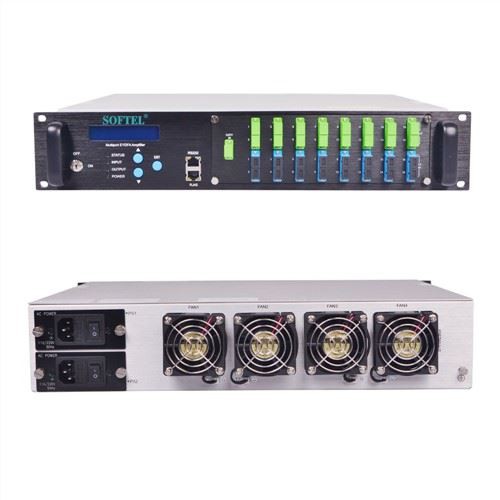

Detailed image of XGS-PON 10G EDFA

Product parameters of XGS-PON 10G EDFA

Category	Items	Unit	Index			Remarks
Category	Items	Unit	Min.	Typ.	Max.	Remarks
Optical Index	CATV Operating Wavelength	nm	1545		1565
	OLT PON Pass Wavelength	nm	1310/1490/1270/1577			CWDM
	Optical Input Range	dBm	-8		+10
	Output Power	dBm			41	1dBm interval
	Output adjustment Range	dB	-4		0	Adjustable, each step 0.1dB
	Output ATT	dB		-6		Output ATT at one time And recover
	Output Ports Uniformity	dB			0.7
	Output Power Stability	dB			0.3
	No. of OLT PON Ports				32	SC/APC
	No. of OLT PON Ports				64	LC/APC
	No. of COM Ports				32	SC/APC
	No. of COM Ports				64	LC/APC
	CATV Pass Loss	dB			0.8
	OLT Pass Loss	dB			0.8
	Isolation between CATV and OLT	dB	40
	Switching Time of Optical Switch	ms			8.0	Optional
	Insertion Loss of Optical Switch	dB			0.8	Optional
	Noise Figure	dB			6.0	Pin：0dBm
	PDL	dB			0.3
	PDG	dB			0.4
	PMD	ps			0.3
	Remnant Pump Power	dBm			-30
	Optical Return Loss	dB	45
	Fiber Connector		SC/APC			FC/APC LC/APC
General Index	RF Test	dBμV	78		82	Optional
	Network Management Interface		SNMP,WEB supported
	Power Supply	V	90		265	AC
	Power Supply	V	-72		-36	DC
	Power Consumption	W			100	Dual PS,1+1 standby,40dBm
	Operating Temp	℃	-5		+65
	Storage Temp	℃	-40		+85
	Operating Relative Humidity	%	5		95
	Dimension	mm	370×483×88			D、W、H
	Weight	Kg	7.5
