Product Introduction
Touch Screen Cable TV EDFA 1550nm
Touch Screen Cable TV EDFA 1550nm adopts two-stage amplification, the first stage adopts low-noise EDFA, the second stage adopts high-power EYDFA, the total output optical power can reach 37dBm. It can replace several or dozens of EDFA, which can greatly reduce the cost of network building and maintenance and reduce the space of head-end.
Instead of the button-type operation way, it is equipped with a super comprehensive touch-sensitive display LCD, equipped with a intelligent exclusive operation interface, with easy-to-understand pictures, icons and layout, users can easily and conveniently operate the device without the manual.
Features
1 Adopting a full touch screen operating system, it can display rich contents including each index in detail and intuitively, so that it is clear at a glance, simple operation, what you see is what you get, users can operate the device simply and conveniently without the manual. A maintenance button that rapid drops 6dB is added to the main menu. This function can rapidly reduce 6dBm in each port (≤18dBm output), and it can avoid the fiber core ofthe patch to be burnt when it plugged in and out l. After maintenance, it can quickly restore to the original working state.
2 It adopts the top brand pump laser and double cladding active fiber.
3 Each output port of this Touch Screen Cable TV EDFA 1550nm is built in with CWDM.

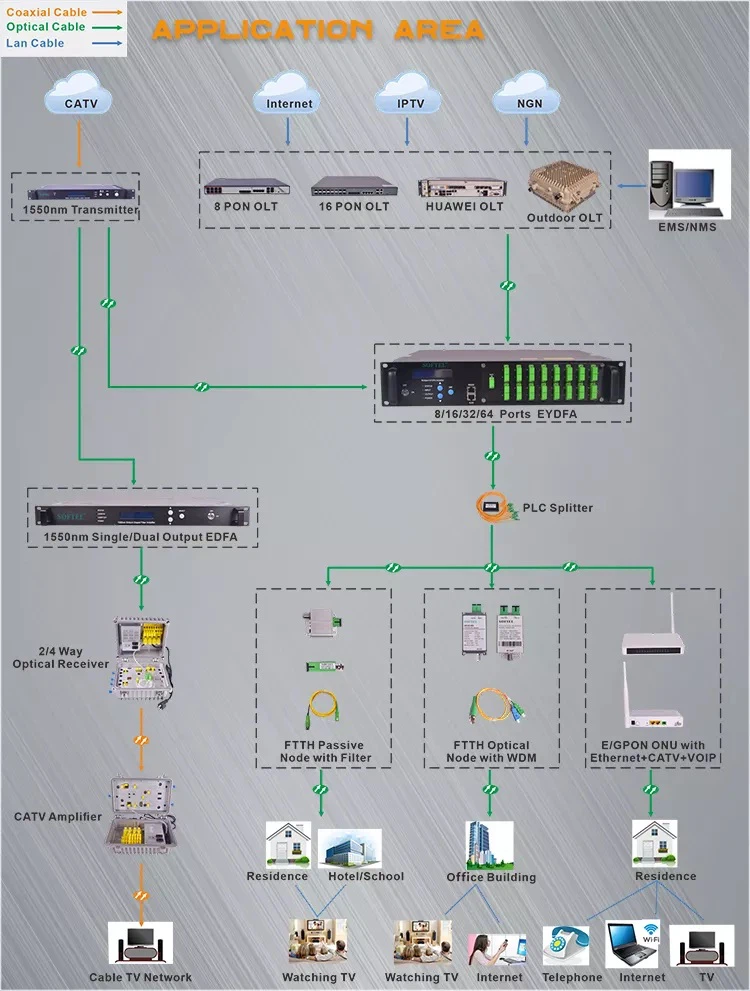

4 Compatible with any FTTx PON：EPON、GPON、10GPON.
5 Perfect APC, ACC, ATC and AGC optical circuit design ensures low noise, high output and high reliability of the device in the whole operating band (1545 ~ 1565nm). Users can switch APC, ACC and AGC functions according to actual needs.
6 It has the function of automatic protection of low input or no input. When the input optical power is lower than the set value, the laser will automatically shut down to protect the operating safety of the device.
7 Output adjustable, adjustment range : 0~-4dBm.
8 RF test in the front panel(optional).
9 The switching time of optical switch is short and the loss is small. It has the functions of automatic switching and forced manual switching.

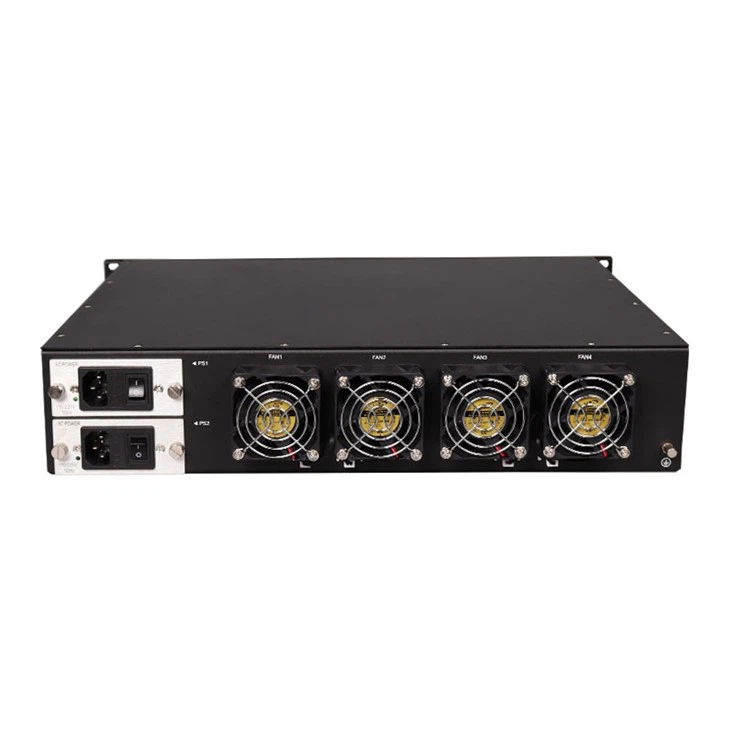

10 Built- in dual power supply, automatically switched and hot plug supported.
11 The operating parameters of the whole Touch Screen Cable TV EDFA 1550nm are controlled by microprocessor, and the LCD status display on the front panel has many functions such as laser status monitoring, parameter display, fault alarm, network management, etc.; once the operating parameters of the laser deviate from the allowed range set by the software, the system will alarm promptly.
12 Standard RJ45 interface is provided, supporting SNMP and WEB remote network management.
