FFTH 2 Outputs AGC WDM Node
Production Introduction

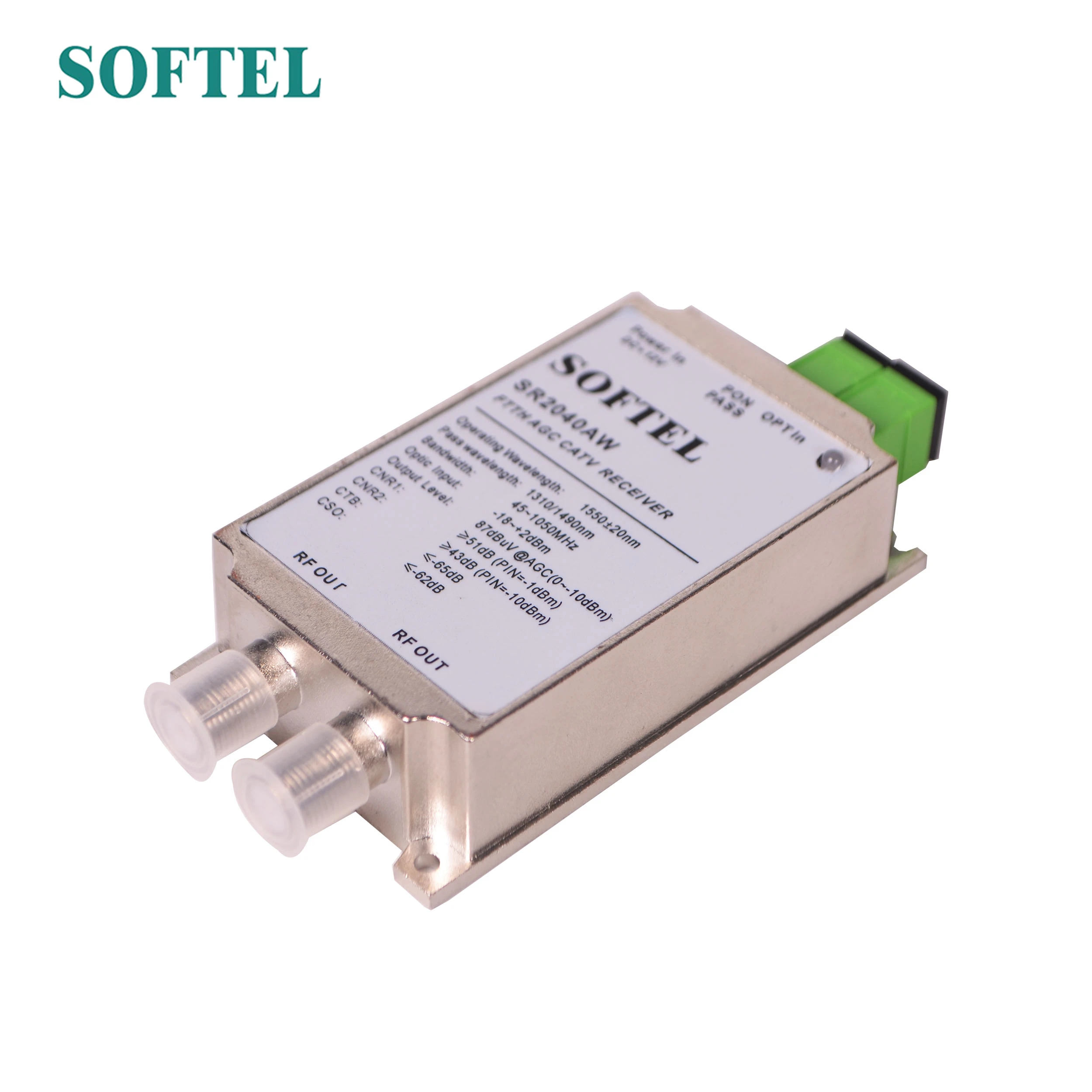

Ftth 2 Ouputs AGC WDM node(SR2040AW), the operating bandwidth of 47~1000MHz, is a low power, high performance,FTTH CATV optical receiver.
SR2040AW within a large dynamic range of the received optical power of +2 dBm ~-18dBm, have excellent characteristics.
Features
1. Extra-low noise
2. Wide dynamic receiving optical power range: within Pin=-16, MER≥36dB
3. Applicable GPON, EPON, compatible with FTTx PON technology
4. Greatly reduce the network configuration cost
5. Within 47~1000MHz bandwidth, all with excellent flatness feature ( FL≤±1dB )
6. Metal case, offer safeguard for optoelectronic sensitive devices
7. High output level, can be used by many users
8. Low power consume, high performance, high cost performance
Application
1. CATV FTTH
2. Integration of three network
3. FTTH PON
Specifications
Performance | Index | Supplement | ||
Optic Feature | CATV Work wavelength | (nm) | 1540~1560 | |
Pass wavelength | (nm) | 1310, 1490 | ||
Channel Isolation | (dB) | ≥35 | ||
Responsibility | (A/W) | ≥0.85 | 1310nm | |
≥0.9 | 1550nm | |||
Receiving power | (dBm) | +2~-18 | ||
Optical return loss | (dB) | ≥55 | ||
Optical fiber connector | SC/APC | |||
RF
Feature | Work bandwidth | (MHz) | 47~1000 | |
Flatness | (dB) | ≤±1 | 47~1000MHz | |
Output level(Port1&2) | (dBμV) | 87±2 | Pin=+0~-10dBm AGC | |
Return loss | (dB) | ≥14 | 47 ~ 862MHz | |
Output impedance | (Ω) | 75 | ||
Output port Number | 2 | |||
RF tie-in | F-Female | |||
Analog TV Link Feature | Test channel | (CH) | 59CH(PAL-D) | |
OMI | (%) | 3.8 | ||
CNR1 | (dB) | 53.3 | Pin=-2dBm | |
CNR2 | (dB) | 45.3 | Pin=-10dBm | |
CTB | (dB) | ≤-61 | ||
CSO | (dB) | ≤-61 | ||
Digital TV Link Feature | OMI | (%) | 4.3 | |
MER |
(dB) | ≥36 | Pin=-16dBm | |
≥30 | Pin=-20dBm | |||
BER | (dB) | <1.0E-9 | Pin:+2~-21dBm | |
General Feature | Power supply | (V) | DC+12V | ±1.0V |
Power Consume | (W) | ≤3 | +12VDC, 180mA | |
Work Temp | (℃) | -25~ +65 | ||
Storage Temp | (℃) | -40 ~ 70 | ||
Work relative temp | (%) | 5 ~ 95 | ||
Size |
(mm) | 50×88×22 | ||
Packing& Shipping
