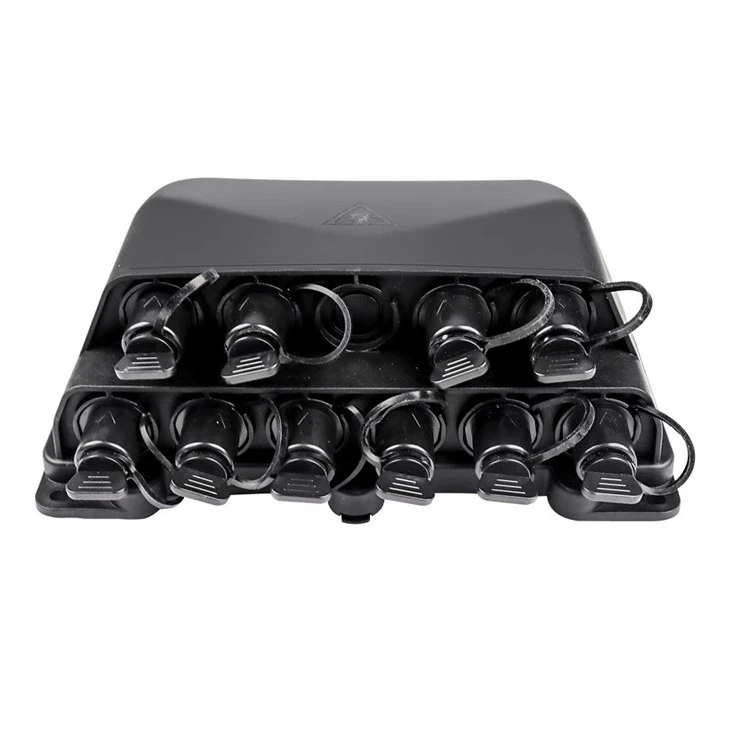

10 Port Teminal Box
Description of 10 Ports Pre Connectorized CTO Termination Box Huawei mini SC Hardened Connector. This is a Huawei FastConnect FAT/CTO/NAP box, it is widely used as a termination point for the feeder cable to connect with drop cable. The fiber splicing, splitting, distribution can be done in this box. All ports are equipped with Huawei mini SC hardened adapters. The operators do not need to splice fibers or open boxes during ODN deployment, which can highly improve the efficiency and reduces the total cost.
Send Inquiry
Product Introduction
Product Description
Item Description
Description of 10 Ports Pre Connectorized CTO Termination Box Huawei mini SC Hardened Connector. This is a Huawei FastConnect FAT/CTO/NAP box, it is widely used as a termination point for the feeder cable to connect with drop cable. The fiber splicing, splitting, distribution can be done in this box. All ports are equipped with Huawei mini SC hardened adapters. The operators do not need to splice fibers or open boxes during ODN deployment, which can highly improve the efficiency and reduces the total cost.
Keyed Characteristics
All-in-one design
Clamping for feeder cable and drop cable, fiber splicing, fixation, storage; distribution etc all in one. cable, pigtails, and patch cords are running through their own paths without disturbing each other, micro type PLC splitter installation, easy maintenance.
IP65 Protection
Total enclosed structure with material made of PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65. Suitable for both indoor and outdoor use.
Easy Maintenance
The distribution panel can be flipped up, and the feeder cable can be placed by expression port, making it easy for maintenance and installation. The box can be installed by the way of wall-mounted or poled-mounted.
Features
High compatibility support harden adapter of OptiTap, Slim and FastConnect;
Strong enough: working under 1000N pulling force long term;

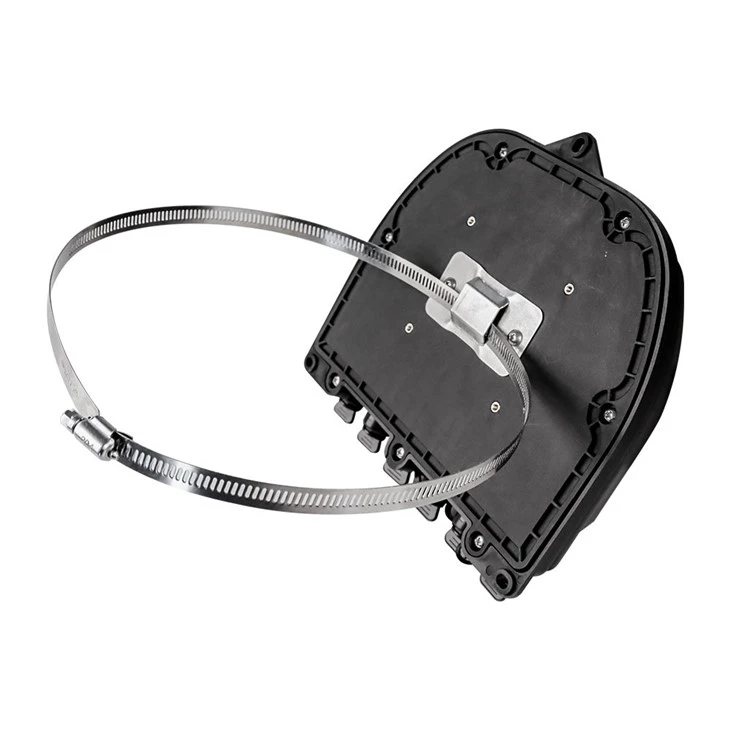

Installation on Wall/Pole/Aerial mounted, underground;
Available with PLC fiber divide; Decreased angle surface and height make sure no connector interfering when operating;
Cost effective: save 40% operating time and less manpower.
Cost effective: save 40% operating time and less manpower.
Specification
|
Dimension (L x W x H) |
224.8 x 212 x 8 0 mm |
|
Waterproof Level |
IP65 |
|
Port Type Solution |
10pcs of Harden FastConnect Adapters |
|
Color |
Black |
|
Material |
PC + ABS |
|
Max Capacity |
10 Ports |
|
UV resistance |
ISO 4892-3 |
|
Fire protection rating |
UL94-V0 |
|
Number of PLC (Solution) |
1x9 PLC Splitter |
|
Warranty Life Time (Non-artificial damage) |
5 Years |
