Fiber Optic Cable Distribution Box

The SPD‑16QX pre-connected optical fiber distribution box is a high-end distribution node device designed for FTTX networks. It is made of PP material and has an IP68 protection rating, suitable for wall-mounted, pole-mounted, and aerial installations in various scenarios. The box supports 16 pre-connected adapters, is compatible with various splice trays and miniature PLC splitters, with a maximum capacity of 136 cores. It features reasonable wiring, efficient connections, high and low-temperature resistance, dustproof and waterproof performance, and anti-aging properties, meeting the fast deployment and stable operation and maintenance needs of operators and government and enterprise broadband access.

Send Inquiry

Product Introduction

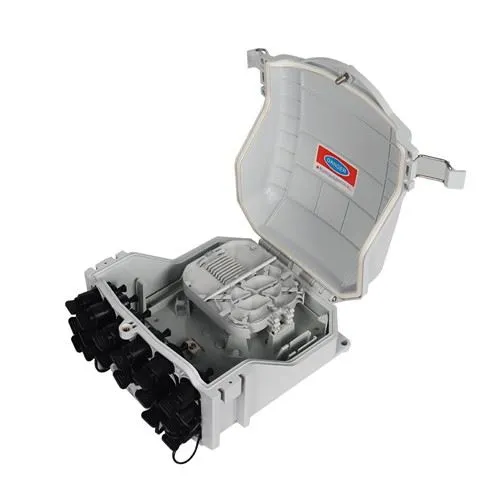

SPD-16QX Fiber Optic Cable Distribution Box

Technical specifications

SPD-16QX is Fiber Optic Cable Distribution Box as the most advanced FTTX network distribution node equipment, provide quick and reliable connection, good protection and management for the FTTX network.

Application

FTTX FTTH broadband access
Operator optical network
Government and enterprise private networks
Outdoor communication nodes
Metropolitan area network edge distribution

spd-16qx

Characteristics

1. Advanced structure design, easy operation and reasonable routing.

2. Material: PP.

3. Moisture proof, waterproof, dust-proof, anti-aging.

4. Protection level up to IP68.

5. 1 oval optical cable entry, 2 branch optical cable entries and 16 pre-connected adapters.

6. 2 type splice trays optional.

7. Installation method: pole-mounted, aerial-mounted, wall-mounted.

optical distribution box

Parameters of SPD-16QX

Item	Specifications	Remark
External dimension(mm)	378255136(ABC)
Installation hole position(mm)	215266239(DEF)
Color	Black	Customizable
Size and quantity of optical cable hole	1 oval optical cable entry, 2 branch optical cable entries and 16 pre-connected adapters
Capacity(Max)	48	Tray A , 12x4=48, 2 layers of heat-shrinkable splice protection sleeve.
	96	Tray C, 12x8=96, 1 layer of heat-shrinkable splice protection sleeve.
	128	Tray F, 16x8= 128, 1 layer of heat-shrinkable splice protection sleeve.
	96	Tray D,Tray E, 24x4=96, 2 layers of heat-shrinkable splice protection sleeve.
	136	Max=7F+1E=7 16+24= 136
Micro PLC Splitter	1x2	Splitter size：60x7x4mm. Can be installed in type A and type E splicing tray, 1 PC per splicing tray.
	1x4
	1x8
	1* 16	Splitter size：60x12x4mm. Can be installed in type A- 1, and type E- 1 splicing tray, 1 PC per splicing tray.
Into the largest cable diameter (mm)	ᴓ18	* Note: Provide the type and diameter of the optical cable when purchasing, to matching the appropriate sealing plug to ensure the sealing performance.
Maximum size of bifurcation hole (mm)	ᴓ18
IP protection level	IP68
