Branch Patchcord Supplier

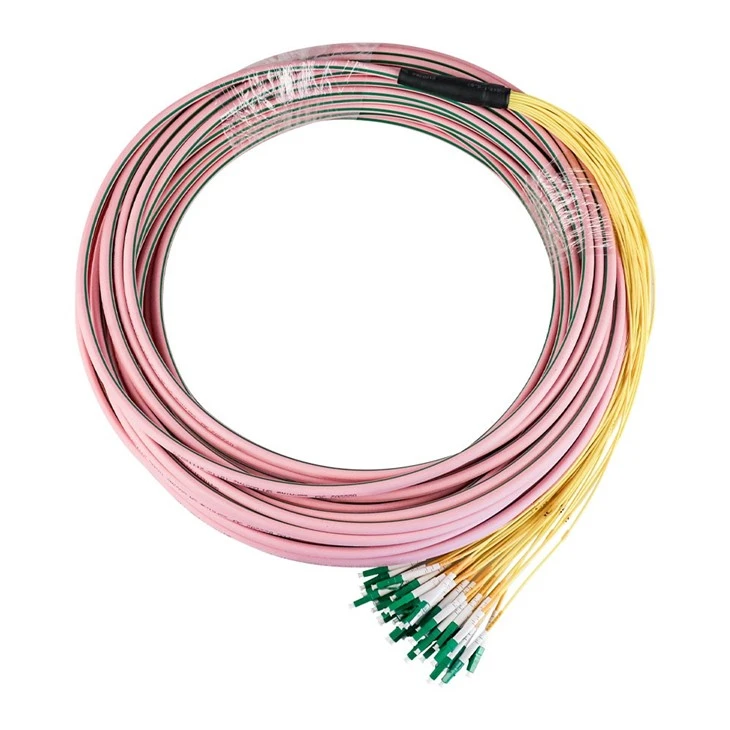

         PATCHCORD Branch optical cable 12/16/24/48core SC FC LC ST E2000 2.0mm G652D LSZH LM





Product Deatial Images





Main Features for branch patchcord



•



• ★Material for outer sheath of optical cable ：PVC/LSZH

  ★Connector Type ：￠3.0mm

  ★Accord With ROHS





Specifications

Fiber type	G652D G657A OM1 OM2 OM3 OM4
Sub-cable	Φ1.9mm±0.1mm PVC/LSZH
Tight buffer fiber	Φ0.85mm±0.05mm PVC/LSZH
Cable diameter	12 CORE 12.5±0.5mm 16 CORE 12.5±0.5mm 24 CORE 15.5±0.5mm 16 CORE 19.5±0.5mm
Outer sheath material	PVC
Strength member	Glass yarn
tensile(N)	Long term 200
	Short term 660
Crush (N/100cm)	Long term 300
	Short term 1000
Bending radius (cm)	Dynamic 20×H(cable axis)
	Static 10×H(cable axis)
Attenuation	1310/1550nm≤0.4/0.3



Insertion loss return loss

MODEL	Il (db)		Rl (db)
	sm	mm	sm	mm
upc	≤0.3	≤0.2	≥50	≥35
apc	≤0.3	≤0.2	≥60	≥35



technical specifications

★Insertion Loss：IEC 61300-3-4

★Return Loss：IEC61300-3-6

★End Face Geometry： 3D

UPC Radius of curvature：10～ 25mm

APC Radius of curvature：5 ～18mm

Apex offset ：0 ～ 60um

Optical fiber depression：+50 ～ -100

APC Angle: 8±0.5°

★Mechanical properties ：

Durability：500 times<0.2dB

★3D APC≥70%

UPC≥80%



Environmental technology requirements

Transport storage environment：-40℃to+85℃

Work Environment ：-20℃ to+75℃





Softel is a well-known one-stop FTTH supplier in China, offering a variety of fiber optic equipment, PLC splitters, patch cords, optical connectors, and more.



Company Infomation



FAQ



1.How can I place an order?

(1) Negotiation is agreed upon for the product price and specifications.

(2) The Proforma invoice will be sent for confirmation.

(3) After the agreement on the proforma invoice, the customer makes the deposit.

(4) Manufacturing will be started as soon as the payment is confirmed by our bank.

(5) Ship out the goods within the agreed delivery deadline.



2.How about the Warranty?

There are 12 months for the warranty.

While the warranty is not responsible for those broken by violence or updated with other brands.



3.Can you do OEM for us?

Of course. If there is a certain order quantity, we can do OEM including printing, logo, and custom packing for you.



4. How about techinal support?

We are glad to help you to solve techinal problems, if you buy our equipments, this service will be no charge.
