Fiber Optic Tool Kits Kevlar Scissors Connection Tool
Our company shows the business integrity and social responsibility of the enterprise with the continuous improvement of Optical Fiber Fast Connector, Cable Transmission Equipment, Catv 1310nm Optical Fiber Transmitters quality and considerate pre-sale, in-sales and after-sales services. We put efforts in improving the comprehensive strength of innovation, R&D, manufacturing, and marketing, and also providing a full range of services for domestic and foreign customers. Our practice of "full worry-free and advanced service" has won high recognition and praise from our customers.
KF-500 is an installation and maintenance fiber optic tool kit for FTTH drop cable. It is especially used for FTTX solution, combining the function of in-door cable stripper, cleaver, cleaning and testing.
Features
Used with Pre-Polished Fiber Optic Connectors
Shorten overall fiber installation cost by reducing termination time
No polishing required
Fast and easy to terminate
Waterproof protection bag
Safe handling of fiber off-cuts
Product name | Qty(pcs) |
1) Fiber optic stripper CFS-2 | 1 |
2) Pen Type Fiber Checker 10MW | 1 |
3) 6'' Side Cut Pliers | 1 |
4) Kim Wipes IPA | 10 |
5) 250ML .Bottle of Alcohol withlocked | 1 |
6) Round Cable Slitter TB-330A | 1 |
7) Precision Fiber Cleave TK-711 | 1 |
8) Optic Power Mete | 1 |
9) CarryingTool Case(240X150X210mm) | 1 |

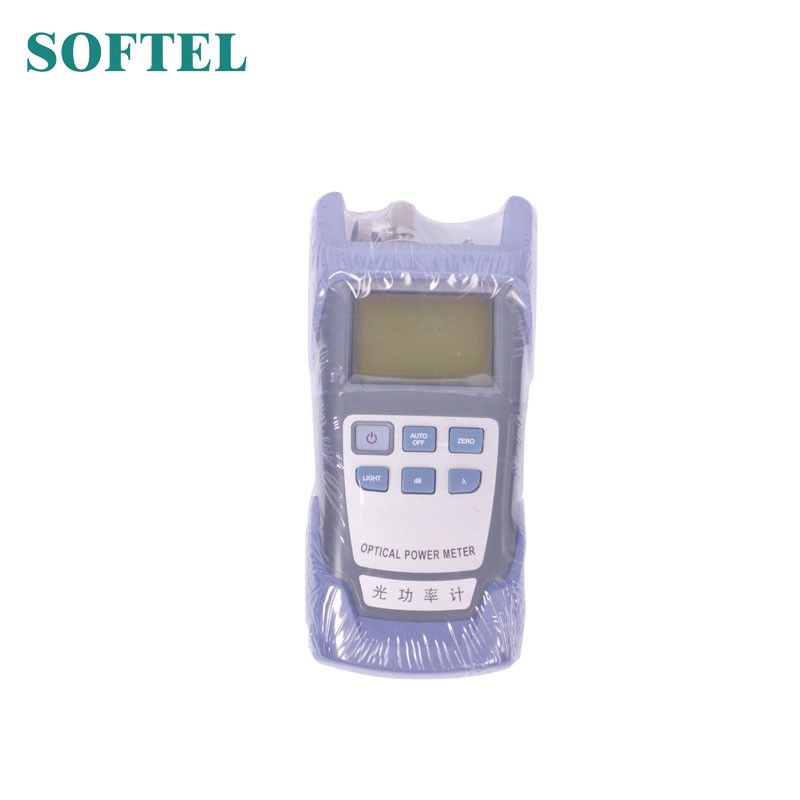

Specifications of the power meter
Model | A | B |
Measurement range | -70～+3 | -50～+26 |
Type of probe | InGaAs | |
Range of wave length | 800～1700 | |
Uncertainty | ±5% | |
Standard wave length (nm) | 850、980、1300、1310、1490、1550 | |
Resolution | Linear indication: 0.1% Logarithmic indication: 0.01dBm | |
Working temperature (℃) | -10～+60 | |
Storage temperature (℃) | -25～+70 | |
Auto power-off time (min) | 10 | |
Continuous working hours | At least 48 hours | |
Dimensions (mm) | 190×100×48 | |
Power supply | Rechargeable lithium battery | |
Weight(g) | 400 | |
Notice
1． Range of wave length: a standard working wave length that we specified: λmin – λmax, the optical power meter within this range can work well with all indicators meeting requirements.
2． Measurement range: the maximum power that the meter can measure as per required indicators.
3． Uncertainty: the error between the test results and standard test results over a popular optical power.
Our Fiber Optic Tool Kits Kevlar Scissors Connection Tool integrates excellent corporate culture and technical advantages, with mature and reliable performance. While improving the quality of our products, we win the trust of the public, enhance the image and reputation of the enterprise, and gain market advantages. Our company has a strict production process management system to ensure the first-class quality.
