Indoor Fiber Drop Flat Cable Outdoor 1 2 4 Core FTTH Single Mode Fibra Optica Wire
We take Iptv Gateway, Fiber Optic Cables, LNB that cater to and meet the needs of customers as our responsibility, and we have an independent research and development department to continuously introduce new ones. The company has a group of experienced professional and technical personnel. Welcome the supervision and support from all walks of life, we will always use high-quality products and value-added services to dedicate to the vast number of customers and friends. We are fully determined to control the whole supply chain so as to provide quality products at competitive price in a timely manner. Under no circumstances disappearing major functions in a quick time, it's a should for you of excellent good quality.

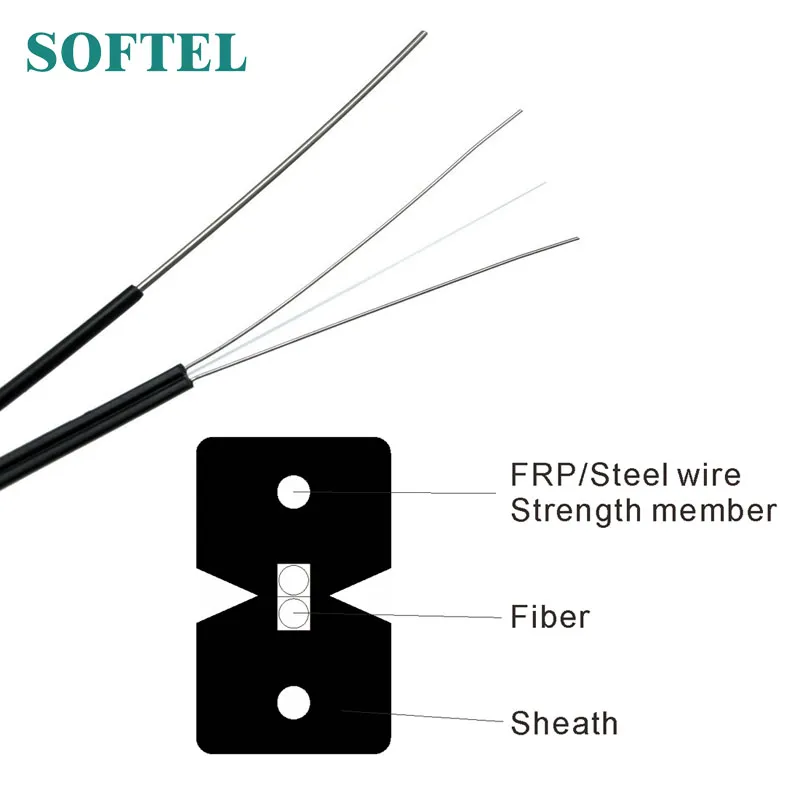

The optical fiber unit of indoor drop fiber cable GJXH is positioned in the centre, two parallel fiber reinforced plastics (FRP) are placed at the two sides, a steel wire as the additional strength member is also applied. Then, the cable is completed with a black or color LSZH sheath.
Features
1. Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.
2. Novel flute design, easily strip and splice, simplify the installation and maintenance.
Technology specification of Indoor Drop Fiber Cable
Item | Technology parameter | ||
Cable type | GJXH-1B1 | GJXH-2B1 | GJXH-4B1 |
Cable specification | 3.0×2.0 | ||
Fiber type | 9/125 (G.652D) | ||
Fiber counts | 1 | 2 | 4 |
Fiber color | Nature | Blue, orange | Blue, orange, green, brown |
Sheath color | Black | ||
Sheath material | LSZH | ||
Cable dimension mm | 3.0(±0.1)*2.0(±0.1) | ||
Cable weight Kg/km | Approx. 10.0 | ||
Min. bending radius mm | 30 (Static) | ||
Attenuation dB/km | ≦ 0.4 at 1310nm, ≦ 0.3 at 1550nm | ||
Short term tensile N | 200 | ||
Long term tensile N | 100 | ||
Short term crush N/100mm | 2200 | ||
Long term crush N/100mm | 1100 | ||
Operation temperature ℃ | -20~+60 | ||
We're proud from the higher client fulfillment and wide acceptance due to our persistent pursuit of high quality both on product and service for Indoor Fiber Drop Flat Cable Outdoor 1 2 4 Core FTTH Single Mode Fibra Optica Wire. Group operation and expansion is the inevitable process of our company's continuous growth and maturity. We are well aware that the competition of enterprises in the future is the competition of enterprise strategy and overall strength.
