Passive 1 Way FTTH Dbc Optical Receiver Node for Digital TV

The bandwidth is up to 1G and provides a high output level up to 110dBuV, with High AGC Range -7 to +3 at a very low power consumption. It has SNMP Network management to improve overall network performance and reliability.

Send Inquiry

Product Introduction

We always adhere to the business philosophy of 'treat people with sincerity and win with quality' and the belief of 'more professional and stronger', and strive to create cost-effective Optical Fiber Communication, Underground Fiber Optical Splice Closures, 1GE 3FE Wifi CATV GPON ONT. We have strong technical force and stable quality products and constantly improve ourselves. Base upon the presence and look into the future, we will continue to increase our investment and strengthen the management system.

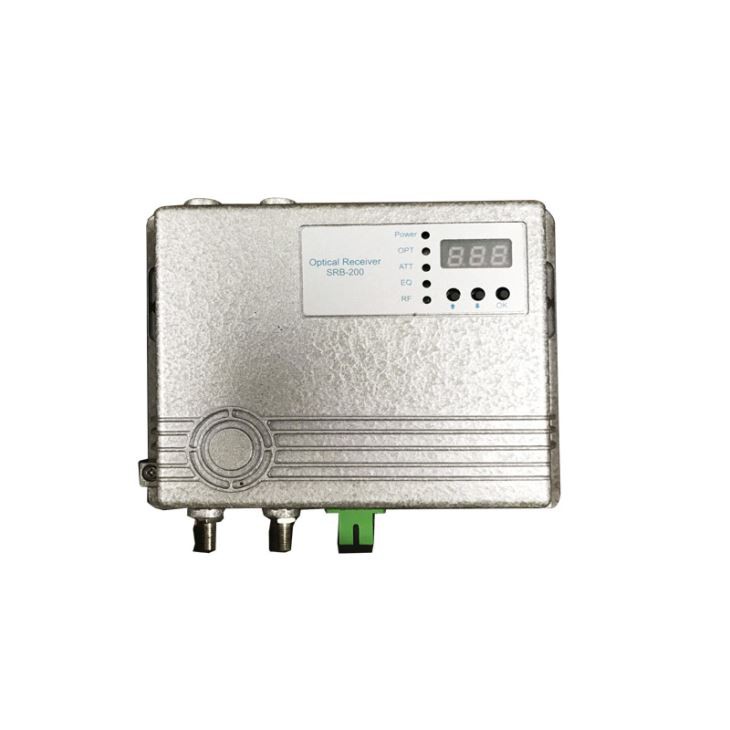

DBC Optical Receiver Node

FTTB Optical Receiver

This dbc optical receiver is designed for CATV and FTTB network solution. The bandwidth is up to 1G and provides a high output level up to 110dBuV. With High AGC Range -7 to +3, it is at a very low power consumption.

Features

The bandwidth range is 47-1000mhz.

Its SNMP Network management and monitoring is compliance international HMS standard.

The AGC range is -7 to +3dBm.

It supports ATT and EQ adjustment in software management.

There are 2 RF output interface.

It has SNMP Network management.

Parameters of DBC Optical Receiver Node

		Unit	Value	Notes
Optical Specifications (Forward Path)
Wavelength		nm	1100~1600
Optical Power Input Range		dBm	-9~+3
Optical AGC Range		dBm	-7～+3
Responsibility		V/mW	0.85/0.9	1310nm/1550nm
Optical Input Return Loss		dB	≥45
RF Specifications (Forward Path)
Bandwidth		MHz	47~1000	Or 870 MHz（Without duplex）
Flatness		dB	≤±0.75
Nominal Slope		dB	0~1
Nominal RF Output Level		dBμV	1*108
			2*104	With AGC
Return Loss		dB	≥14
Impedance		Ω	75
CNR		dB	≥51	59 PAL CW carrier, 1310nm transmitter, 4.0% OMI, 10km optical fiber plus Attenuator, -1 dBm optical input power, 106 dBuV output level with 8dB equilibrium
CSO		dB	≥60
CTB		dB	≥65
Surge Compliance		V/A	4000	Surge (1.2/50us), IEEE62.41 and IEC 1000-4-5
Power Supply
Input Voltage Range	VAC		90~265		220VAC/110VAC
Power consumption	W		<6
Environmental Parameters
Operating Temperature	℃		-25~60
Storage Temperature	℃		-40~85
Storage Humidity	RH%		≤95
Dimension
Weight
User Interface
Optical Connector Type			SC/APC		FC/APC
RF Output Connector			F-type		Male or Female
Forward Receiving Optical Power Indicator			One-colored LED

001

002
