Sc/APC to RF CATV Mini Passive Optical Receiver FTTH Node Male/Female Type
We have been focusing on the production of 16 In 1 Agile CATV Analog Modulator, Network Cable Cat 6, FTTH 16 Port GPON OLT and pursuing the brand strategy. Our products are sold all over the world, the reliable quality assurance and enthusiastic after-sales service have enabled us to occupy the market. We hope that employees can share the achievements of enterprise development, so as to form a strong cohesion, centripetal force and creativity. Our company takes 'highlighting specialization, optimizing regionalization, realizing differentiation' as the development idea, implements rational management and continues to maintain a rapid development speed. We uphold the basic principles of 'Quality, Assistance, Benefit, Growth' and have won the trust and praise of domestic and foreign customers.

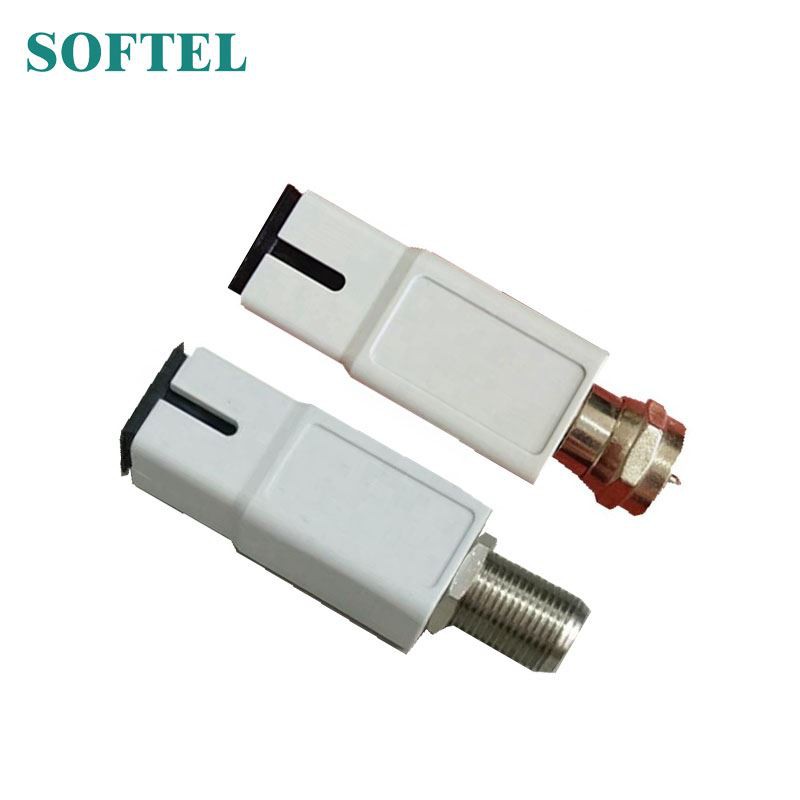

Passive Optical Node SR100SC3 is an enamel type mini node with SC/APC optical fiber connector.
Features
No Power required
Green or White for option
Input Wavelength is 1310,1490/1550nm
Female F-type Connector or Male F-type Connector for option
Specifications of Passive Optical Node
Item | Unit | Index | Supplement | |
Optic Feature | CATV work wavelength | nm | 1260~1620 | Option |
| 1540~1563 | Option | |||
Channel Isolation | dB | ≥40 | 1550nm&1490nm | |
Response | A/W | ≥0.85 | 1310nm | |
| ≥0.9 | 1550nm | |||
Receiving Power | dBm | +2~-14 | ||
Optical return loss | dB | ≥55 | ||
| Optical fiber connector | SC/APC | |||
RF Feature | Work bandwidth | MHz | 45~1050 | |
Output level | dBμV | >68 | Digital TV (pin=-1dBm) | |
Return loss | dB | ≥14 | 47~862MHz | |
Output impedance | Ω | 75 | ||
| Output port number | 1 | |||
| RF tie-in | F-female | Option | ||
| F-male | Option | |||
| Digital TV nature | OMI | % | 4.3 | |
| MER | dB | 38 | pin=-1dBm | |
| 30 | pin=-13dBm | |||
| BER | <1.0E-9 | pin:+2~-14dBm | ||
General feature | Work temperature | ºC | -20~+55 | |
Storage temperature | ºC | -40~+85 | ||
Work relative temperature | ºC | 5~95 |
Since the establishment of the company, we continue to innovate and develop to get the support of our customers, and we are committed to providing customers with professional Sc/APC to RF CATV Mini Passive Optical Receiver FTTH Node Male/Female Type. We strive to improve the professional quality and management capabilities of professionals, and promote the implementation of the concept of compound talent training. Our company always takes independent innovation and user experience as the source and power of enterprise development.
