Softel 4ge+CATV+WiFi Gpon Ont with English Firmware
After years of pioneering and enterprising, our company has built a modern production line of RF Splitters, Onu Xpon Onu Wifi Catv, FTTH Catv Fiber Optic Satellite Transmitter. We take the industry's advanced companies as an example, and strive to achieve leading technology, stable products, and develop ourselves in the service of society. In the future, we will continue to pursue the corporate tenet of using technology to create value, relying on management to improve quality, and to win the market with integrity.

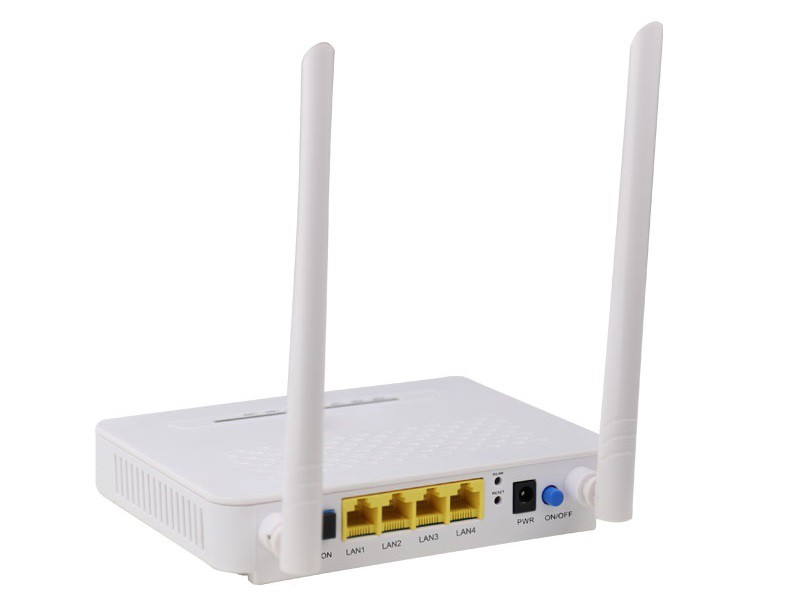

ONT-4GE-W HGU GPON ONT is one of the GPON optical network units designed to meet the requirement of the broadband access network. It apply in FTTH/FTTO to provide the data, video service based on the GPON network.
4GE CATV GPON ONT provides four GE auto-adapting Ethernet ports and one 802.11 n/b/g WiFi port. The features high-performance forwarding capabilities to ensure excellent experience with Internet and HD video services. Therefore, it provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment. It has good third-party compatibility to work with the third party OLT, such as Huawei/ZTE/Fiberhome/Alcatel-Lucen.
Features
Full compatible with ITU-T G.984
Support fourGEauto-adapting Ethernet ports
Support one 802.11 n/b/g Wi-Fi port
Support OMCI for remote management
Support Web for local management
Support Auto-negotiation and MDI/MDIX
Support the Ethernet interface rate, working mode and flows control
Support loop-back at UNI
Support packet filtering and anti-illegal message attack protection
Support performance statistics of Ethernet lines
Support VLAN tagged label processing, traffic classification and packet filtering, STP/RSTP etc.
Support IGMP Snooping
Support AES-128
Specifications
Item | Parameters | 4GE CATV GPON ONT |
Interface | PON Port | 1*GPON port, FSAN G.984.2 standard, Class B+ |
Ethernet Port(LAN) | 4*10/100/1000M Auto-negotiation RJ45 ports | |
Power Supply Port | 12V DC input | |
Management | Network Management | Standard compliant OMCI interface as defined by ITU-T G.984.4 |
Management | Status monitor, Configuration management, Alarm management, Log management | |
Environmental | Shell | Plastic casing |
Power | External 12V 1A AC/DC power supply adapter | |
Dimensions | 170mm(L)*130mm(W)*30mm(H) | |
Environment | Operating Temperature: 0～50℃ |
CATV Service Functions
Turn on/off RF output remotely
Wavelength：1550 +/- 10nm
Optical return loss：>45dB
Input optical power：-8dBm～+2dBm
RF frequency：47MHz~875MHz
RF output lever：75～80dBuV
CNR：>46dB，CSO: >58dBc，CTB: >58dBc
RF output return loss： >14dB
RF impedance： 75Ohm
AGC function optional
FAQ
1. What are the payment terms?
Usually, we accept T/T, PayPal, Western Union, and Alibaba Trade Assurance. You can select the terms of payment which is the most convenient for you.
2. What about the lead time?
Usually, if there's stock, we ship the goods within 3~5 working days after the deposit is confirmed. If it is out of stock, the lead time depends.
3. How about the shipping?
When the package is small, we normally choose FedEx, DHL, TNT, UPS and so on. While for the goods of heavy weight and large volume, air or sea shipment will be recommended.
4. How can I place an order?
(1) Negotiation should be agreed upon the prices and specifications of the products.
(2) Then a proforma invoice will be sent for confirmation.
(3) The deposit can be made according to the proforma invoice.
(4) Manufacturing will be started as soon as the payment is confirmed by our bank.
(5) Goods will be sent out within the agreed delivery deadline. And tracking number will be informed.
5. Can you do OEM for us?
Yes, of cause. If there is a certain quantity, we can do OEM including printing, logo, and customized model etc.
6. How about the Warranty?
There are 12 months for the warranty.
While the warranty is not responsible for those broken by violence or updated with other brands.
