XGSPON ONT
XGSPON ONT
ONTX-253GVU-W6
XGS-PON + 1*2.5GE + 3*GE + 1*POTS + 1*USB3.0 + WiFi 6 HGU ONT
Leveraging the latest WiFi 6 (AX3000) technology and equipped with IEEE 802.3av(10G- EPON)/ITU-T G.987(XG-PON)/ ITU- T G.9807.1 (XGS- PON) PON interface and IEEE802.11ax(WiFi 6 ) interface, SOFTEL XGS- PON HGU ONTX-253GVU-W6 supports the full Triple-play of services enabling Data, Voice and Video services through Ethernet, Wi-Fi, FXS, and USB standard interfaces, helping Internet Service Providers to deliver internet service more than 2.5 Gbps which is limited by GPON.
ONTX-253GVU-W6 built-in Ethernet LAN ports, one 2.5 GE BASE-T port, and 3 x 1*GE BASE-T ports support ultrafast device connection and include powerful and enhanced WLAN interface based on MU-MIMO OFDMA 2.4 GHz 2 x2 MIMO and 5 GHz 2 x2 MIMO Wi-Fi antennas supporting 802.11 a/b/g/n/ac/ax standards over 2.4 GHz and 5 GHz wireless frequency bands for Internet application such as video, email, web surfing, files upload/download and online gaming, and it provides VoIP service through POTS port.

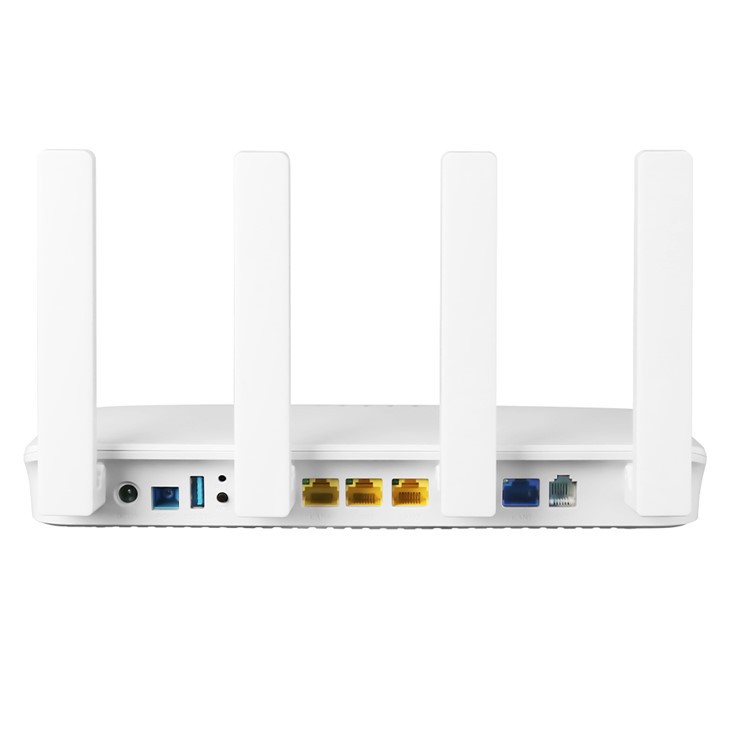

Picture of Wifi 6 XGSPON ONT
Features
|
10G PON Solution Realtek Chipset |
Next-Gen Gigabit WiFi6 2.4GHz & 5GHz Dual Band Speed up to 3Gbps |
IPv4/IPv6 Dual Stack |
USB 3.0 Interface For Shared Storage/Printer |
Application Chart
Hardware Specifications
|
Dimension |
244mm * 131mm * 36mm ( L*W*H) |
|
Net weight |
425g |
|
Operating condition |
Operating temp: 0 ~ +55 °C Operating humidity: 5 ~ 90% ( non-condensed) |
|
Storing condition |
Storing temp: - 30 ~ + 60°C Storing humidity: 5 ~ 90% (non-condensed) |
|
Power adapter |
DC 12V, 2A |
|
Power supply |
≤24W |
|
Interface |
1*2.5GE+ 3*GE+ 1 *POTS+ 1 *USB3 . 0 +WiFi 6 |
|
Indicators |
PON/LOS, WAN, USB, PHONE, WI-FI |
Interface parameter
|
PON Interface |
• 10 GPON port: Class B+ • SC single mode, SC/ UPC connector • TX optical power: 8dBm • RX sensitivity: - 29.5dBm • Overload optical Power: - 7 dBm • Transmission Distance: 20km • Wavelength: • 10GEPON: DS 1577nm/US 1310nm • XG(S)-PON: DS 1577nm/US 1270nm |
|
10G PON layer |
• IEEE 802. 3av( 10G-EPON) • ITU-T G. 987( XG-PON) • ITU-T G 98071 ( XGS-PON) |
|
User interface |
• 1*2.5 GE, Auto-negotiation, RJ45 ports • 3*GE, Auto-negotiation, RJ45 ports • 1*POTS, RJ11 Connector • 1*USB3 0 |
|
Antenna |
4x5 dBi External Antennas |
| USB |
1xUSB 3.0 for Shared Storage/Printer |
Function Data
|
O&M |
• WEB/TELNET/OAM/OMCI/TR0 6 9 • Support private OAM/ OMCI protocol and Unified network management of SOFTEL OLT |
|
Internet |
Support Bridge/Router Mode |
|
Multicast |
• IGMP v1/v2/v3, IGMP snooping • MLD v1/v2 snooping |
|
VoIP |
• SIP and IMS SIP • G.711a/G.711u/G.722/G.729 Codec • Echo cancellation, VAD/ CNG, DTMF Relay • T.30/T.38 FAX • Caller Identification/Call Waiting/Call Forwarding/Call Transfer/Call Hold/3-way Conference • Line testing according to GR-909 |
|
WIFI |
• Wi-Fi6: 802.11a/n/ac/ax 5GHz & 802.11g/b/n/ax 2.4GHz • Wi-Fi Encryption: WEP-64/WEP-128/ WPA/WPA2/WPA3 • Support OFDMA, MU-MIMO, Dynamic QoS, 1024 -QAM • Smart Connect for one Wi-Fi name-One SSID for 2.4 GHz and 5GHz dual band • Support WIFI Easy-mesh function |
|
L2 |
802.1D&802.1ad bridge, 802.1p Cos, 802.1Q VLAN |
|
L3 |
IPv4/IPv6, DHCP Client/Server, PPPoE, NAT , DMZ , DDNS |
|
Firewall |
Anti-DDOS , Filtering Based on ACL/ MAC / URL |
|
Product Name |
Product Description |
Accessories |
|
ONTX-253GVU-W6 |
1 *2.5GE+ 3*GE+ 1*POTS+ USB 3.0 +WiFi 6 |
AC-DC power adaptor: DC 12V/2A |
