Name: China ONU XGS PON Manufacturers, Suppliers - Factory Direct Wholesale - Softel
Brand: Softel
SKU: 299040624

ONTX-S425H ONU XGS PON is equipped with 3*GE LAN and 2.5G LAN gigabit ports, automatically adapts to 10G EPON/XGSPON modes, and is compatible with OLT devices from various manufacturers. It features 4kV lightning protection and 65°C high temperature resistance, with a metal casing that balances heat dissipation and on-site adaptability. It also supports port loop detection and rate limiting, stably adapting to the harsh conditions of industrial scenarios, providing a reliable solution for high-speed optical access.

Send Inquiry

Product Introduction

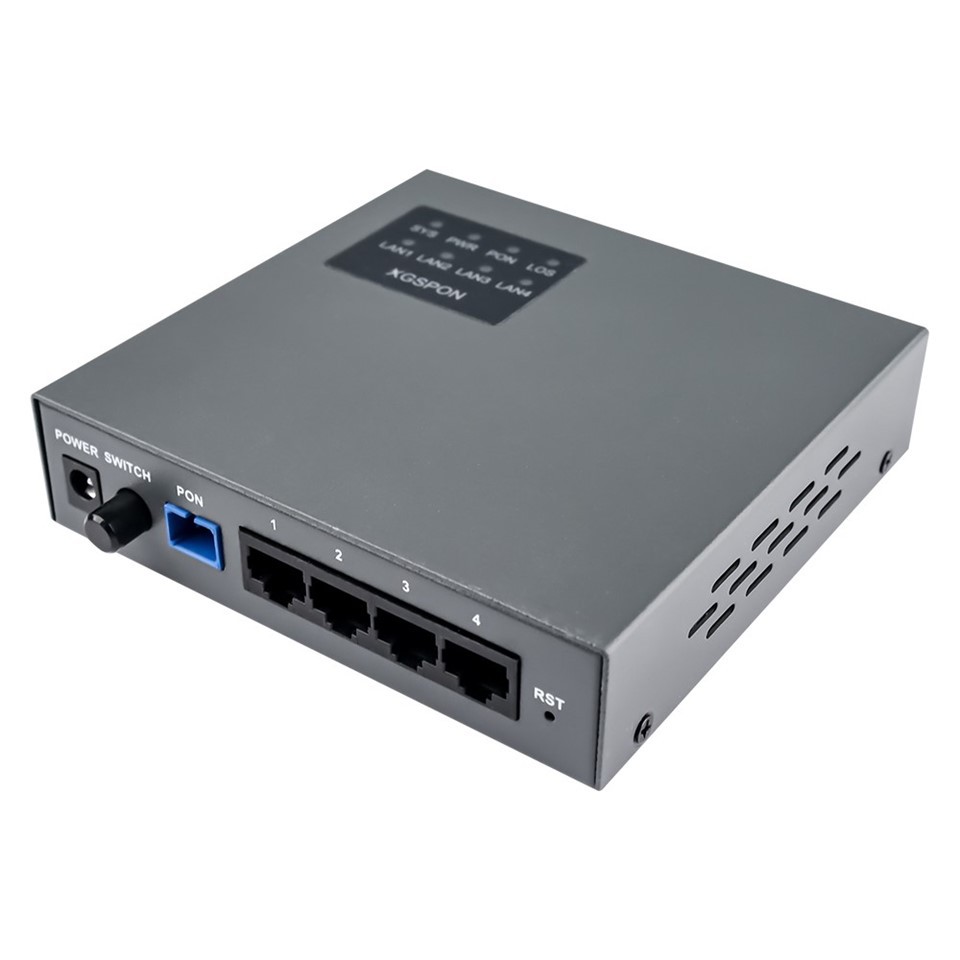

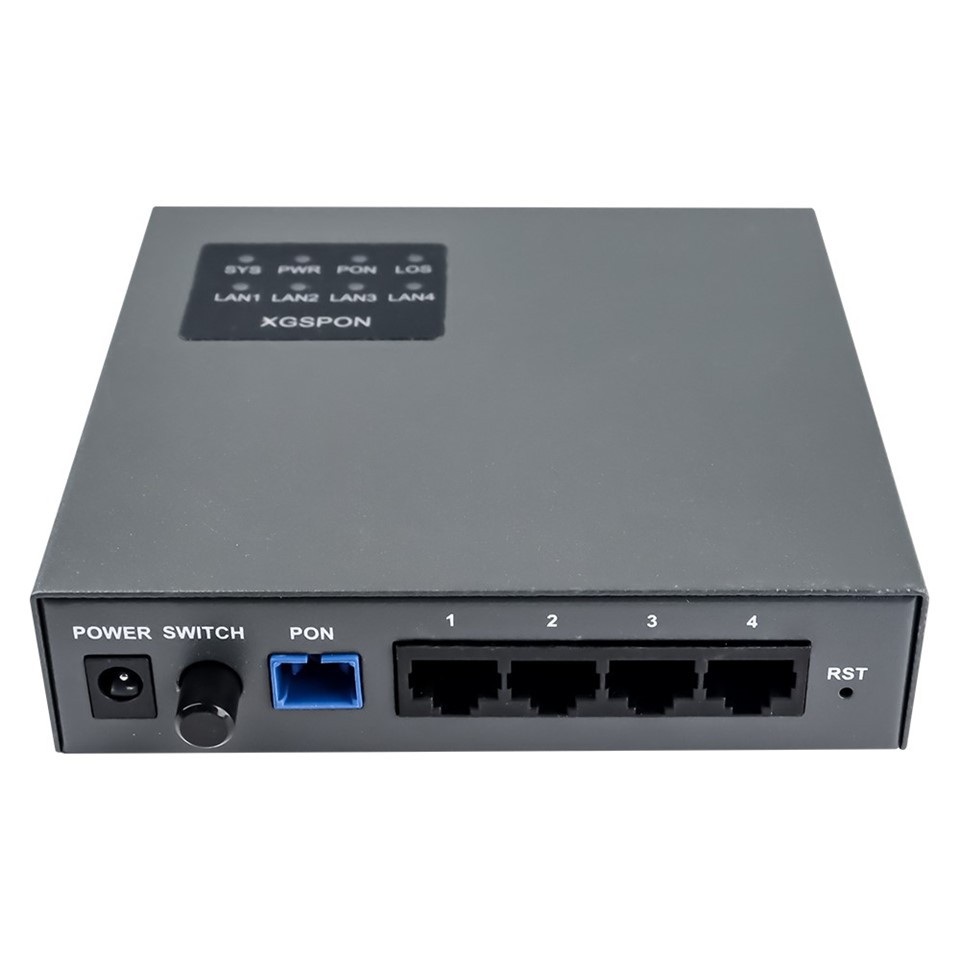

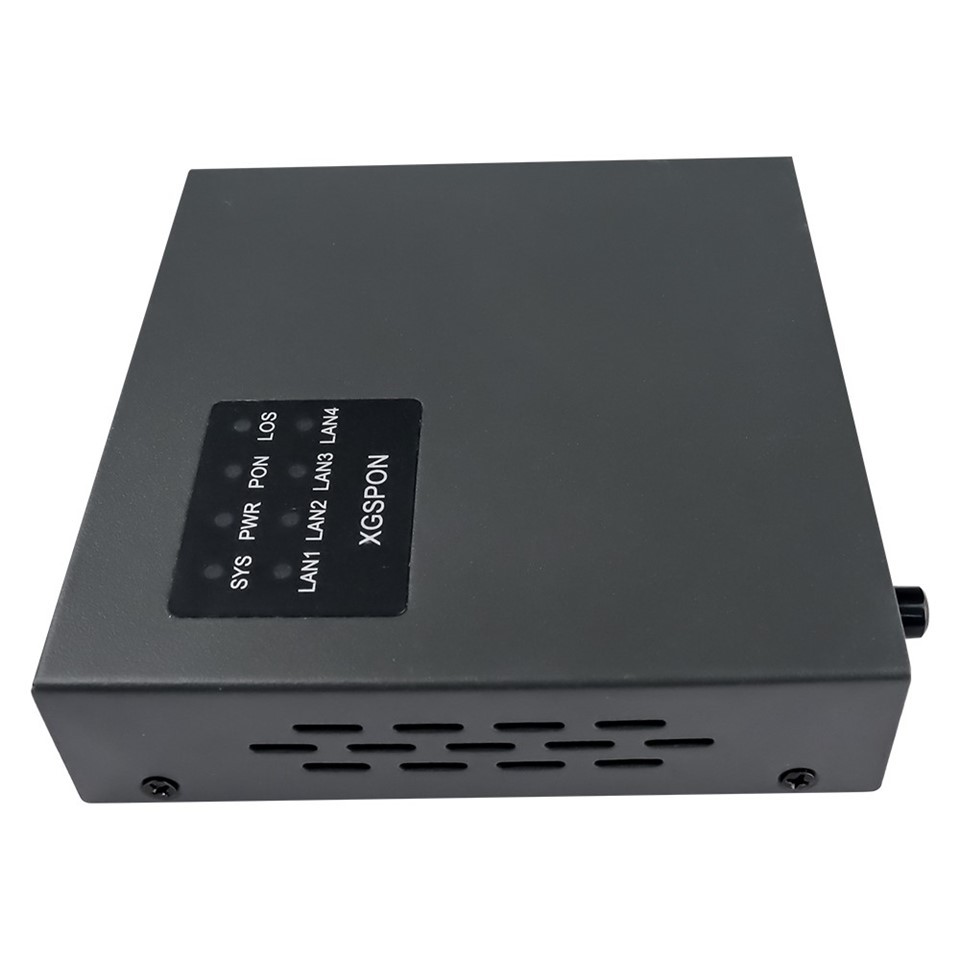

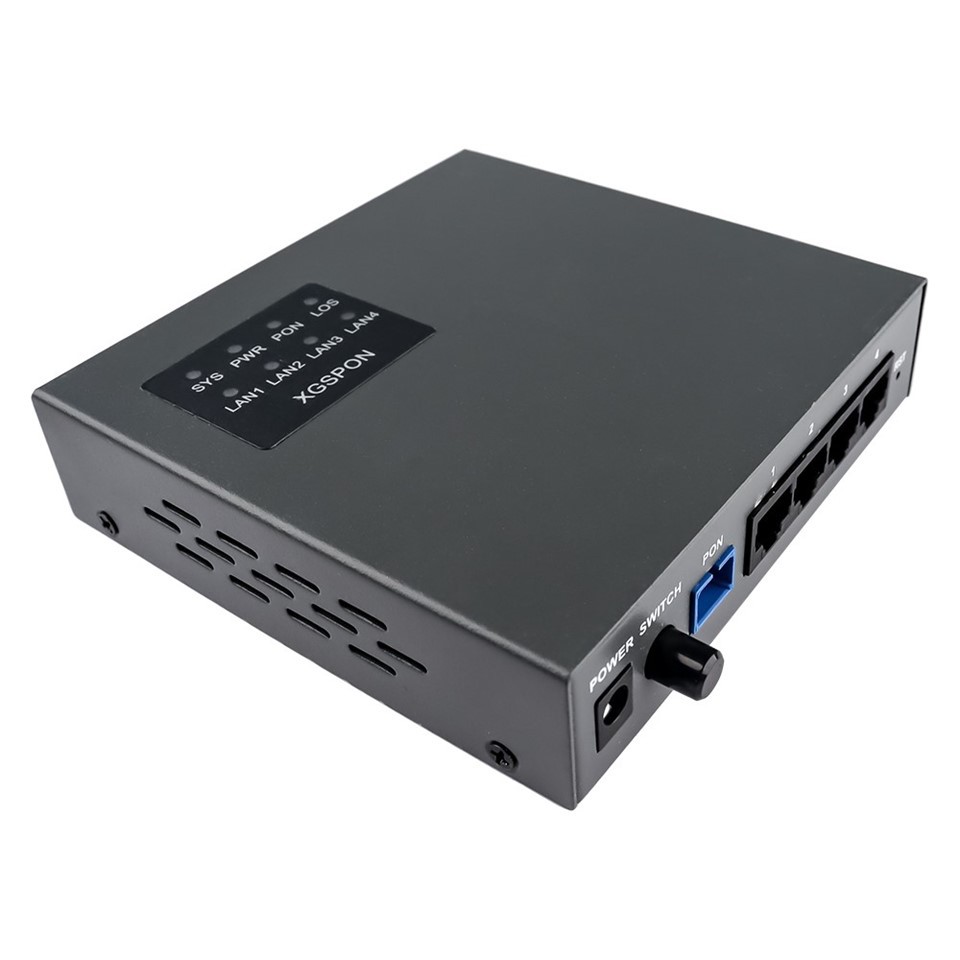

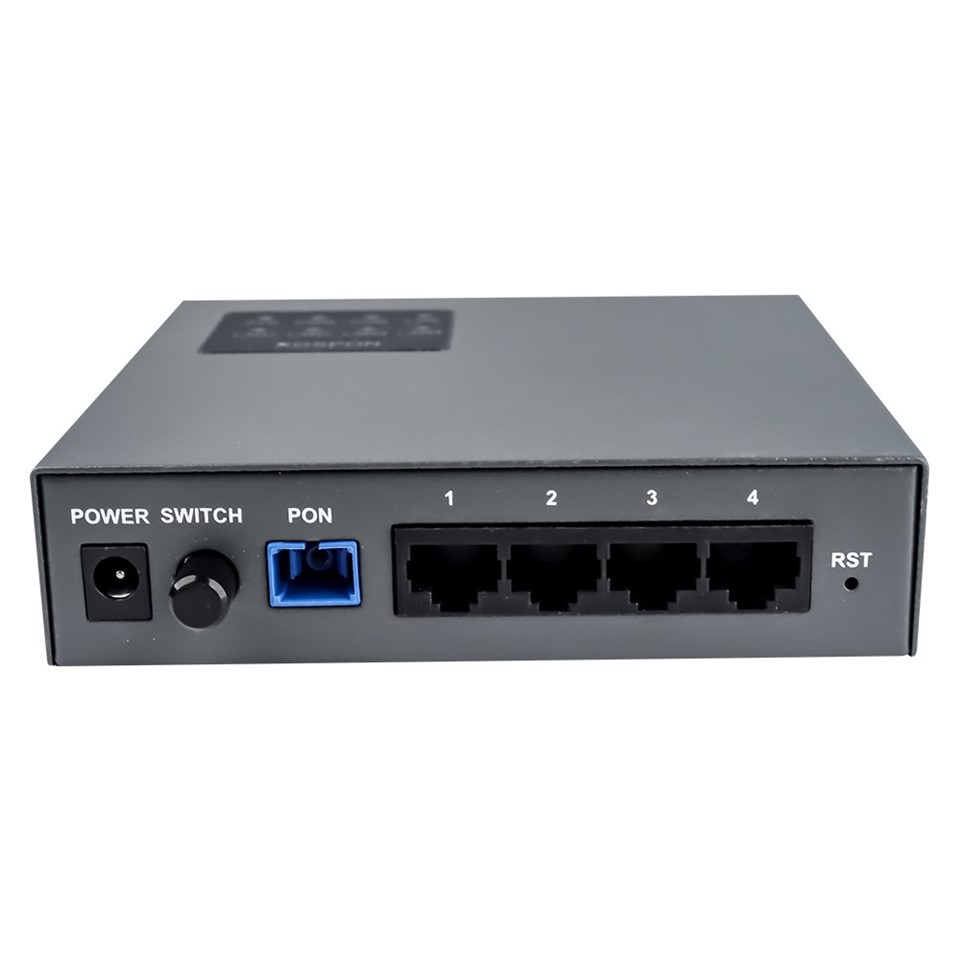

ONTX-S425H ONU XGS PON

XGS+3GE LAN+2.5G LAN

XGSPON/Symmetric-10G-EPON

ONTX-S425H provides industrial-grade high-reliability ONU. By optimizing software and hardware processing, it supports lightning protection of up to 4 kV and high temperature resistance of up to 65 degrees, and supports docking compatibility with OLT of various manufacturers. What's more, it supports Gigabit ports, and ensures smooth transmission under large burst video traffic. The metal shell has good field adaptability while ensuring heat dissipation.

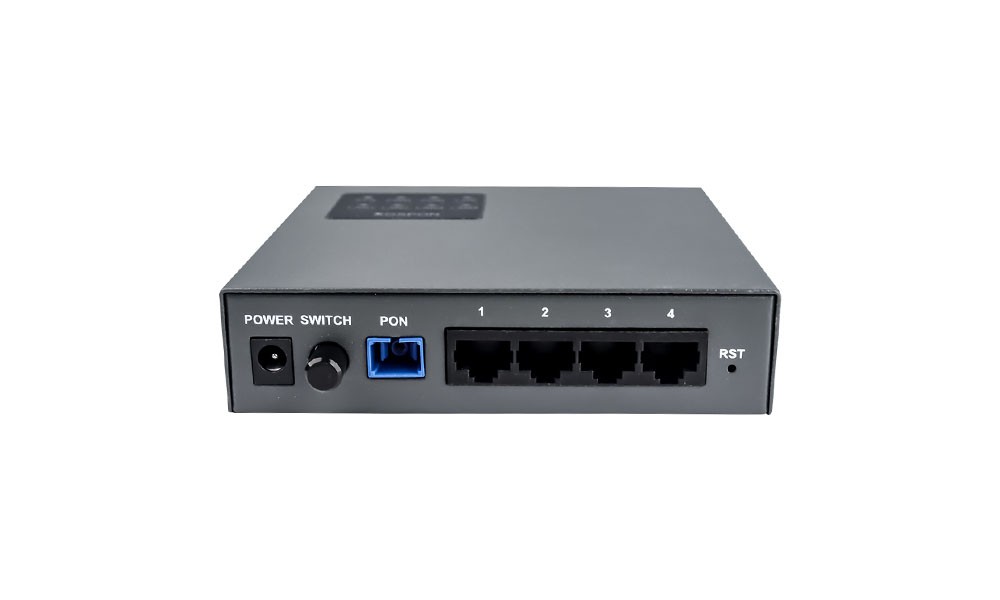

ONTX-S425H-3

Highlights: --------------------------------------

Support docking compatibility with OLT of various manufacturers

Support automatically adapt to the 10G EPON or XGSPON mode used by the peer OLT

Support port loop detection and rate limit

Support lightning protection of up to 4 kV and high temperature resistance of up to 65 degrees

Features: --------------------------------------

Compliance with IEEE 802.3av(10G EPON) & ITU-T

G.9807.x(XGSPON) standard

Support Layer 2 802.1Q VLAN, 802.1P QoS

Support IGMP V2 snooping

Support lightning protection of up to 4 kV

Support port loop detection

Support port rate limit

Support hardware watchdog

Support bi-directional FEC

Support dynamic bandwidth allocation function

Support LED indication

Support remote upgrade by olt and web

Support factory settings restore

Support remote reset and reboot

Support dying gasp outage alarm

Support data encryption and decryption

Support sending device alarm to OLT

supports docking compatibility with various OLT

Technical Specifications

Hardware Specifications
Interface	110 G EPON/XGSPON+3GE+1*2.5GE
Power adapter input	100V-240V AC, 50Hz-60Hz
Power Supply	DC 12V/1A
Indicator light	SYSTEM/POWER/PON/LOS/LAN1/ LAN2/LAN3/LAN4
Button	Power switch Button, Reset Button
Power Consumption	<12W
Working temperature	-30℃～+65℃
Environment humidity	5% ~ 95% (non-condensing)
Dimension	125mm x 120mm x 30mm (L×W×H)
Net Weight	0.42Kg
PON Interface
Interface Type	SC/UPC, CLASS B+
Transmission distance	0～20km
Working wavelength	XGSPON：Up 1270nm;Down 1577nm; Symmetric 10G-EPON：Up 1270nm;Down 1577nm;
RX Optical power sensitivity	-27dBm
Transmission rate	XGSPON Up 9.95328 Gbps;Down 9.95328 Gbps Symmetric10G-EPON Up 10.3125 Gbps;Down 10.3125 Gbps
Ethernet Interface
Interface type	4* RJ45
Interface parameters	10/100/1000BASE-T+2.5GBASE-T
