Technical item

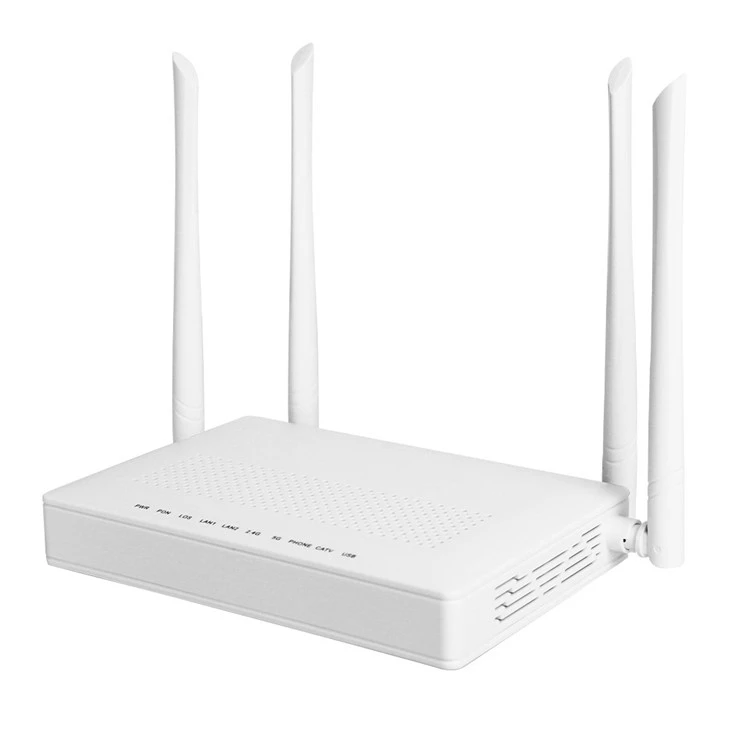

1*xPON+2*GE+1*POTS+WiFi+USB

PON interface

1 G/EPON port(EPON PX20+ and GPON Class B+) Receiving sensitivity: ≤-28dBm

Transmitting optical power: 0～+4dBm

Transmission distance: 20KM

Wavelength

Tx1310nm,Rx 1490nm

Optical interface

SC/UPC connector

LAN interface

2*10/100/1000Mbps auto adaptive Ethernet interfaces, Full/Half, RJ45

connector

USB interface

USB 3.0, Transmission Rate: 4.8Gbps

CATV interface

Optical receiving wavelength: 1550±10nm RF frequency range: 47～1000MHz Optical power input range: 0～-3dBm

RF output impedance: 75Ω

RF output level: 50～60dBuV(0～-3dBm optical input) MER: ≥32dB(-3dBm optical input)

POTS interface

1*RJ11 connectors

G.711A/G.711U/G.723/G.729 Codec,T.30/T.38/G.711 Fax mode, DTMF Relay

WiFi interface

Compliant with IEEE802.11b/g/n/ac

2.4GHz Operating frequency: 2.400-2.483GHz (WiFi 4) 5.0GHz Operating frequency: 5.150-5.825GHz (WiFi 5 wave 2)

WiFi:4*4 MIMO,,5dBi antenna, rate up to 1.167Gbps,Multiple SSID

TX power: 11n--22dBm/11ac--24dBm

LED

5, For Status of PON/LOS, WiFi,TEL,LAN1,LAN2

Operating Enviroment

Temperature: 0℃～+50℃

Humidity: 10%～90%(non-condensing)

Storing Enviroment

Temperature: -30℃～+60℃

Humidity: 10%～90%(non-condensing)

Power Supply

DC 12V/1.5A,12W

Dimension

178mm×120mm×30mm(L×W×H)

Net weight

0.28kg

Fuction

Description

Management Mode

OAM/OMCI,Telnet,WEB,TR069,Support full management by VSOL OLT

Data Service Functions

Full speed non-blocking switching 2K MAC address table

64 full range VLAN ID

Support QinQ VLAN, 1:1 VLAN, VLAN reusing, VLAN trunk, etc Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc Support auto polarity detection of Ethernet ports (AUTO MDIX) Integrated IEEE802.1p QoS with four level priority queues

Support IGMP v1/v2/v3 snooping/proxy and MLD v1/v2 snooping/proxy Support bridge, router and bridge/router mixed mode

IP address assignment: dynamic PPPoE/DHCP Client and static IP

WiFi Service Functions

Integrated 802.11b/g/n/ac(WIFI5), support Easymesh protocol. Support max 128 users.

Authentication : WEP/WAP-PSK(TKIP)/WAP2-PSK(AES) Modulation type: DSSS,CCK and OFDM

Encoding scheme: BPSK,QPSK,16QAM and 64QAM

POTS Service Function

SIP protocol(IMS compatible) seamless compatible with all popular call agent Integrate heartbeat function and support active/standby call agent

Voice coding: ITU-T G.711/G.722/G.729, auto-negotiate with call agent

Echo cancellation exceeding ITU-T G.165/G.168-2002, up to 128ms tail length Support high/low speed fax, bypass fax, and T.38 fax

Support high speed MODEM(56Kbps) dial access

Support RFC2833 and redundant RFC2833, difference rings, MD5 authentication, call forward, call waiting, hot-line call, alarm clock, and all kinds of value-added voice service

Call loss less than 0.01%
