Product Description

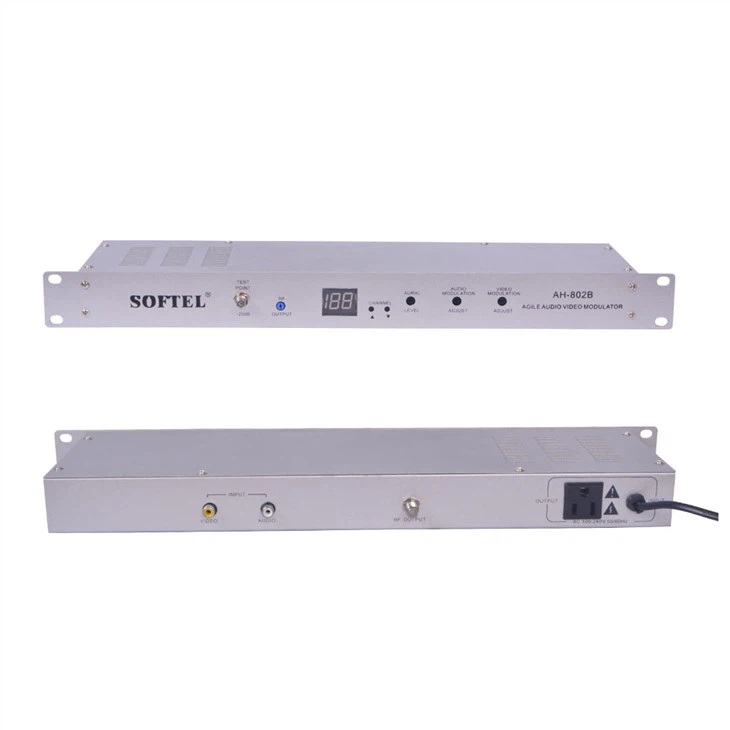

The AH-802B is a commercial grade, SAW filtered, and frequency single port agile modulator. Setup and tuning are easy and straightforward taking advantage of the front panel access to all level controls and indicators. The AH-802B single port agile modulator provides system operators the engineering ease and flexibility associated with new headend deployments, upgrades and system maintenance.
Features
1. SAW filtered for maintenance free adjacent channel configuration
2. 55dBmV RF output level
3. Phase lock loop frequency control
4. None-volatile memory maintains channel selection in event of power loss
5. Three-digit blue LED display and controls for convenient monitoring and operation
6. Switching power supply for installation flexibility and precise voltage regulation
7. Available in NTSC or PAL BG/DK configurations
Specification
RF | Output Frequency | 45~860MHz any channel |
Output Connector | F Connector | |
Output Level | 115 dBµV (Adj.) | |
Test Point | -20 dB ±3dB | |
A / V Ratio | -11 ~ -18 dB (Adj.) | |
Frequency Stability | ±10KHz | |
Output Impedance | 75 Ohms | |
VIDEO | Video Input Level | 0.6-1.5Vp-p (87.5% Modulation) |

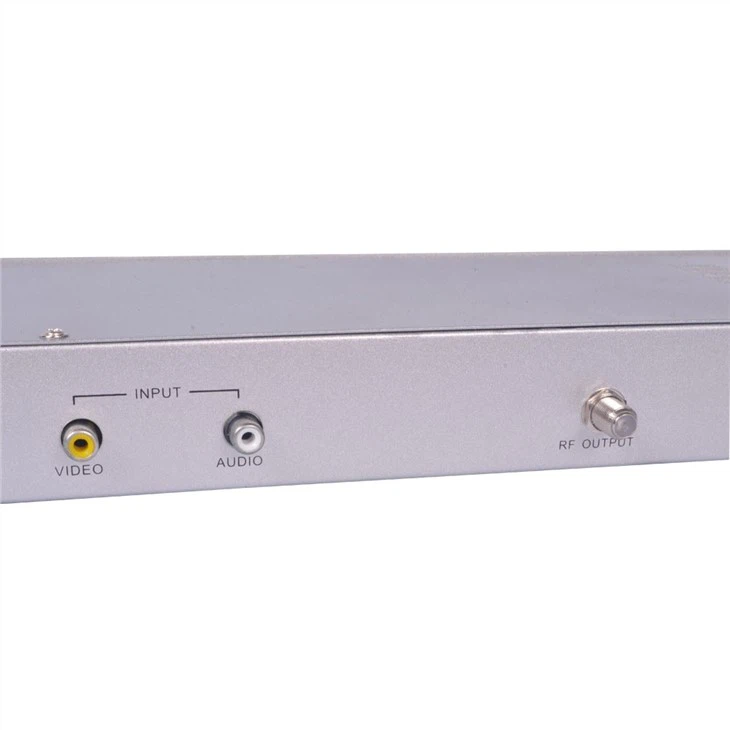

Input Connector | Yellow RCA Jack | |
Video C/N | 60dB | |
AUDIO | Input Level | 0.8Vp-p(25KHz Peak Deviation) |
Input Connector | White RCA Jack | |
GENERAL | Voltage | AC 110 ~ 220V |
Power Consumption | 10W | |
Dimension | 19” x 1.75” x 6.6” |
