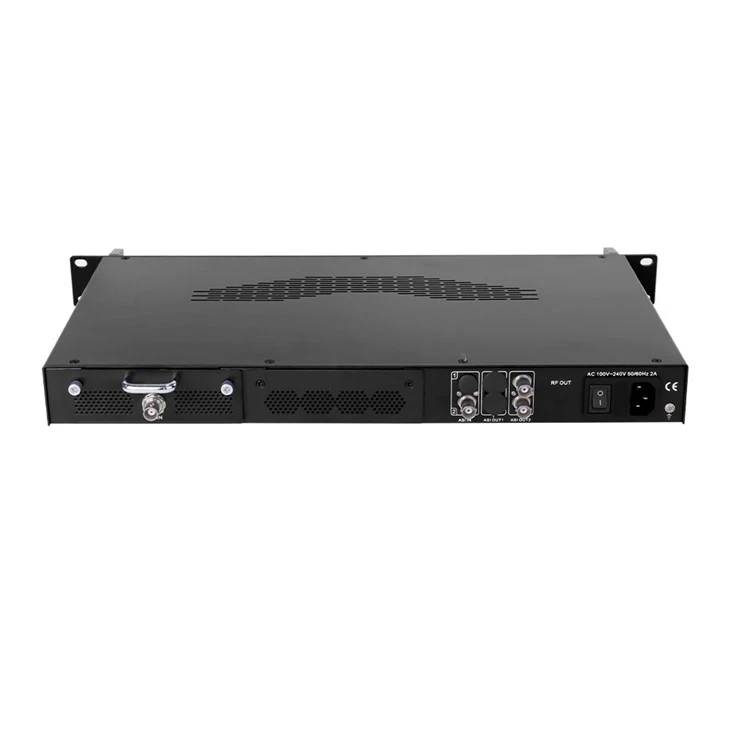

4 ‐ in ‐ 1 MPEG2/ H .264 HD Encoder
SFT3242A
4 ‐ in ‐ 1 MPEG2/ H .264 HD Encoder
SFT3242A 4 ‐ in ‐ 1 MPEG2/ H .264 HD Encoder is a SOFTEL new professional HD/SD audio & video encoding device with a powerful functionality. It is equipped with 4 SDI or 4
HDMI inputs supporting MPEG‐ 2 and MPEG‐ 4 AVC/ H .264 video encoding and
MPEG 2, MPEG 2 ‐ AAC, MPEG 4 ‐ AAC and DD AC3 audio encoding . The 4 encoded programs will output through ASI and IP ports in MPTS or SPTS, and there is also one ASI in port for re- multiplexing .
It adopts inner drawer ‐ type structural design which greatly facilitates the change of encoding modules if needed .
Product Features
|
Encoding |
MPEG2 & MPEG4 AVC/ H.264 |
|
|
Input |
SDI*4 or HDMI*4 + 1 ASI in |
|
|
Resolution |
1920*1080_60P, 1920*1080_50P, (-for MPEG4 AVC/ H.264 only) 1920*1080_60i, 1920*1080_50i, 1280*720_60p, 1280*720_50P 720*480_60i, 720*576_50i |
|
|
Support object resolution (for downscale conversion) |
1920*1080_60P, 1920*1080_50P, (-for MPEG4 AVC/ H.264 only) 1440*1080_60i, 1440*1080_50i, 1280*720_60p, 1280*720_50P 720*480_60i, 720*576_50i |
|
|
Bit Rate |
1~19.5Mbps |
|
|
Chroma Sample |
4 :2 :0 |
|
|
Aspect Ratio |
16:9, 4 :3 |
|
|
Audio |
||
|
encoding |
MPEG 2, MPEG2-AAC, MPEG4-AAC, Dolby Digital AC3 (2.0) |
|
|
Dialog Normalization |
(Applicable for DD AC3 encoding only) -31 ~ - 1 d B |
|
|
Sample rate |
48KHz |
|
|
Bit rate |
64kbps, 96kbps, 128kbps, 192kbps, 256kbps, 320kbps |
|
Factory Picture
FAQ
1. What are the payment terms that you support?
Usually, we accept T/T, PayPal, Western Union, and Alibaba Trade Assurance. You can select the terms of payment which is more convenient for you.
2. What about the lead time?
Usually, if there's stock, we ship the goods within 3~5 working days after the deposit is confirmed. If it is out of stock, the lead time depends.
3. How about the shipping?
When the package is small, we normally choose FedEx, DHL, TNT, and UPS and so on, while the goods have high weight and volume, we suggest using air or sea shipment.
Key Features
Dual power supply
MPEG2 HD/SD & MPEG4 AVC/H.264 HD/SD video encoding
MPEG 2, MPEG 2-AAC, MPEG 4-AAC and DD AC3 audio encoding
Support dialog normalization (applicable for DD AC3)
4*SDI inputs or 4*HDMI inputs or 2* SDI + 2* HDMI inputs
1*ASI in for re-multiplexing
Support resolution downscale conversion
Support CC (closed caption) EIA 608 & EIA 708 & Line 21 (for SDI input version only)
Support Low Delay function
Support PSI/SI editing and inserting
Supports IP null packet filter
ASI output as mirror of MPTS or SPTS 1-4, IP (MPTS & 4 SPTS) output over UDP, RTP/RTSP
LCD display, Remote control
Web-based NMS management; Updates via web
Principle Chart
Technical Comparison
|
The Former Version |
The Current Version (V2) |
|
|
ASI in |
No |
Yes |
|
Bit rate Mode |
CBR/VBR option |
CBR |
|
Audio Group/Pair option-SDI |
No |
Yes |
|
Video Bit Rate |
0.5~ 19.5Mbps for H.264 encoding 1~ 19.5Mbps for MPEG-2 encoding |
1~ 19.5Mbps |
|
Low Delay |
Normal/Mode 1/Mode 2 |
Normal/Mode 1/Mode 2/Manual |
|
Character Encoding option |
No |
Yes |
|
Output Protocol |
UDP, RTP |
UDP, RTP/RTSP |
|
DATA Port |
100M port |
1000M port |
