Hdmi H.264 Encoder

Product Description

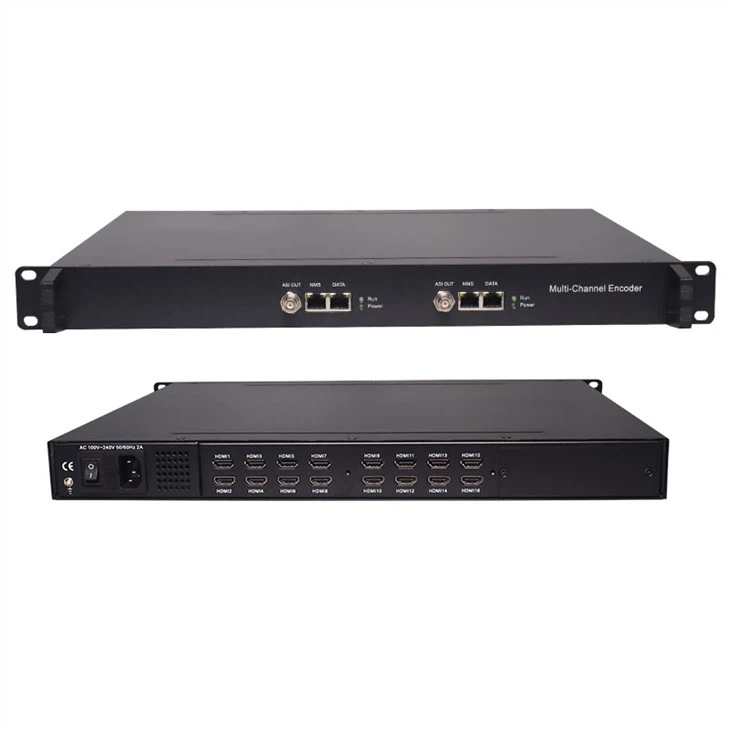

SFT3228S( hdmi h.264 encoder) Multi-Channel encoder is a professional HD/SD audio & video encoding device. It has 8/16/24 HDMI inputs for option. Every 8 HDMI ports share one encoder module with each module supporting 1MPTS and 8SPTS output.

Its high integration and cost effective design makes the device widely used in varieties of digital distribution systems such as cable TV digital head-end, digital TV broadcasting etc.

Features

• 8 HDMI inputs with 8 SPTS and 1 MPTS output (each encoder module), max 24 HDMI inputs
• MPEG4 AVC/H.264 video encoding format
• MPEG1 Layer II, LC-AAC，HE-AAC audio encoding format and AC3 Pass Through, and audio gain adjustment
• IP output over UDP and RTP/RTSP protocol; 1 ASI out as mirror of MPTS (Optional)
• Support QR code, LOGO, caption insertion (Language Supported:  中文, English, ية   عرب  ال, ไทย, , руская, اردو for more languages please consult us…)
• Support “Null PKT Filter” function
• Control via web management, and easy updates via web

Specifications

Input	8/16/24 HDMI inputs
Video	Resolution	input		1920×1080_60P, 1920×1080_60i, 1920×1080_50P, 1920×1080_50i, 1280×720_60P, 1280×720_50P, 720 x 576_50i,720 x 480_60i
		Output		1920×1080_30P, 1920×1080_25P, 1280×720_30P, 1280×720_25P, 720 x 576_25P, 720 x 480_30P
	Encoding			MPEG-4 AVC/H.264
	Bit-rate			1~13Mbps each channel
	Rate Control			CBR/VBR
	GOP Structure			IP…P (P Frame adjustment, without B Frame )
Audio	Encoding			MPEG-1 Layer 2, LC-AAC, HE-AAC and AC3 Pass through
	Sampling rate			48KHz
	Resolution			24-bit
	Audio Gain			0-255 Adjustable
	MPEG-1 Layer 2 Bit-rate			48/56/64/80/96/112/128/160/192/224/256/320/384 kbps
	LC-AAC Bit-rate			48/56/64/80/96/112/128/160/192/224/256/320/384 kbps
	HE-AAC Bit-rate			48/56/64/80/96/112/128 kbps
Stream output	IP output through DATA (GE) over UDP and RTP/RTSP protocol (8 HDMI inputs with 8 SPTS and 1MPTS output for each encoder board) 1 ASI out as mirror of MPTS (Optional as order)
System function	Network management(WEB)
	Chinese and English language
	Ethernet software upgrade
Miscellaneous	Dimension (W×L×H)		482mm×328mm×44mm
	Environment		0~45℃(work)；-20~80℃（Storage）
	Power requirements		AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz
