l Support 2/4/8//16/24 HDMI inputs, with2/4/ 8/16/24 SPTS output (each encoder module, only support STPS, NO MPTS), max 24 HDMI inputs l MPEG4 AVC/H.264/H265 video encoding format l MPEG1 Layer II, LC-AAC，HE-AAC audio encoding format and AC3 Pass Through, and audio gain adjustment l Support IP Output over UDP (Unicast/Multicast), SRT, RTSP, RTP, RTMP, HTTP, HLS, M3U8 l Support QR code, LOGO, caption insertion (Language Supported: 中文, English, العربية, ไทย, हिन्दी, руская, اردو for more languages please consult us…) l Support “Null PKT Filter” function l Control via web management, and easy updates via web

Send Inquiry

Product Introduction

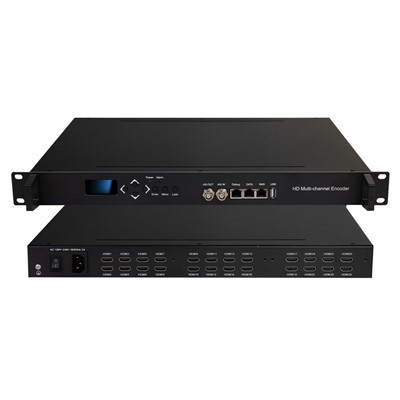

HDMI input support H264+H265 encoder (DUP/RTP/RTSP/RTMP/HLS/M3U8/SRT/etc)

SFT3228M-N24-1

SFT3228M-N24-2

SFT3228M-N24-3

SFT3228M-N24-4

SFT3228M-N24-5

SFT3228M-N24-6

SFT3228M-N24-7

SFT3228M-N24-8

Product Features

HDMI Encoding Section
Video	Encoding	HEVC/ H.265 , MPEG 4 AVC/H.264
	Interface	2/4/8/16/24 HDMI input
	Resolution	19201080_60P, 19201080_50P; 19201080_59.94P, 1280720_60p, 1280720_59.94 1280720_50P
	Chroma	4:2:0
	Bitrate	1Mbps~15Mbps
	Rate Control	CBR/VBR
	GOP Structure	IP
Audio	Encoding Format	MPEG-1 Layer 2, LC-AAC, HE-AAC, HE-AAC V2; AC3 Pass-through
	Sample rate	32KHz,44.1KHz,48KHz
	Bit-rate	48~384Kbps

Stream output	IP out over UDP (Unicast/Multicast),SRT, RTP,RTSP, RTMP, HTTP, HLS (RJ45, 1000M ) (8 HDMI inputs with 8 SPTS for each encoder board)
System function	Network management(WEB)
	Chinese and English language
	Ethernet software upgrade
Miscellaneous	Dimension (W×L×H)	482mm×328mm×44mm
	Environment	0~45℃(work);-20~80℃(Storage)
	Power requirements	AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz

Factory Picture

product-800-1121

FAQ

1. What are the payment terms that you support?

Usually, we accept T/T, PayPal, Western Union, and Alibaba Trade Assurance. You can select the terms of payment which is more convenient for you.

2. What about the lead time?

Usually, if there's stock, we ship the goods within 3~5 working days after the deposit is confirmed. If it is out of stock, the lead time depends.

3. How about the shipping?

When the package is small, we normally choose FedEx, DHL, TNT, and UPS and so on, while the goods have high weight and volume, we suggest using air or sea shipment.

Principle Chart

product-662-619
