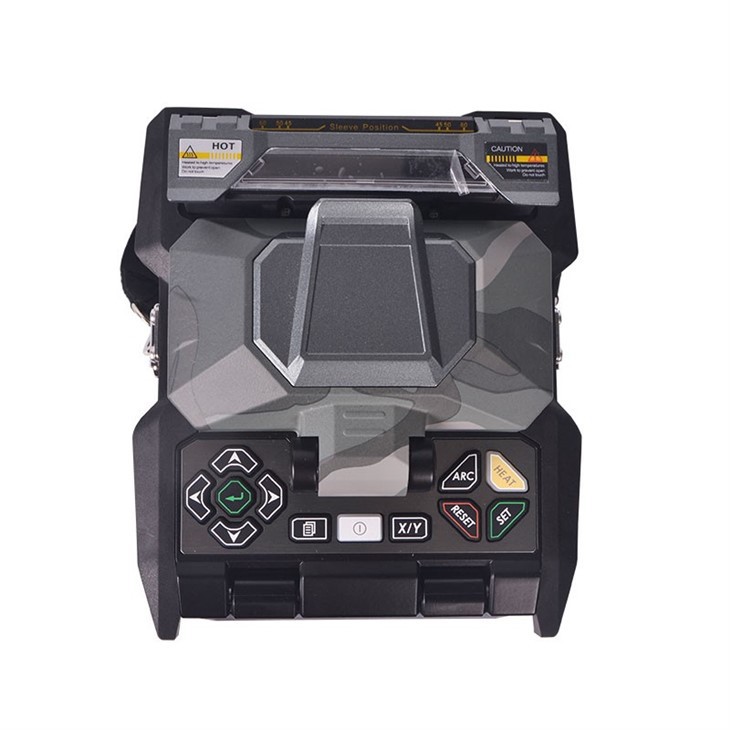

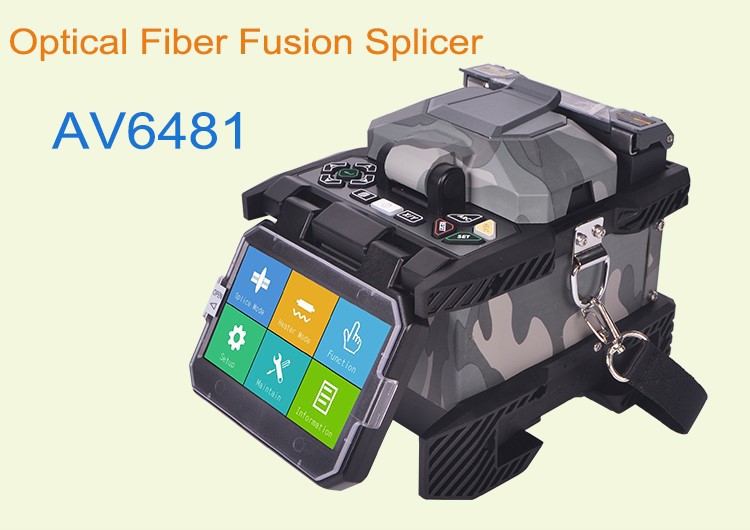

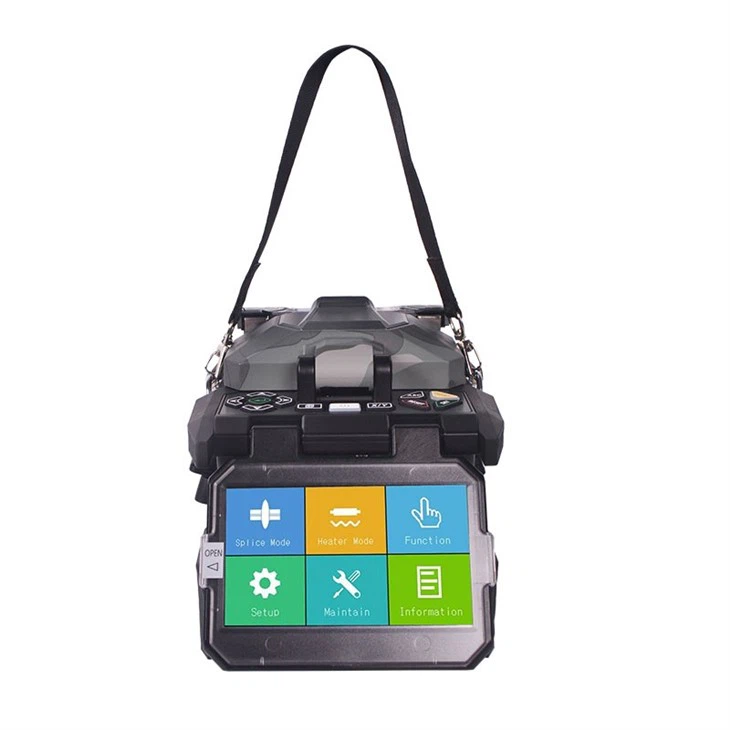

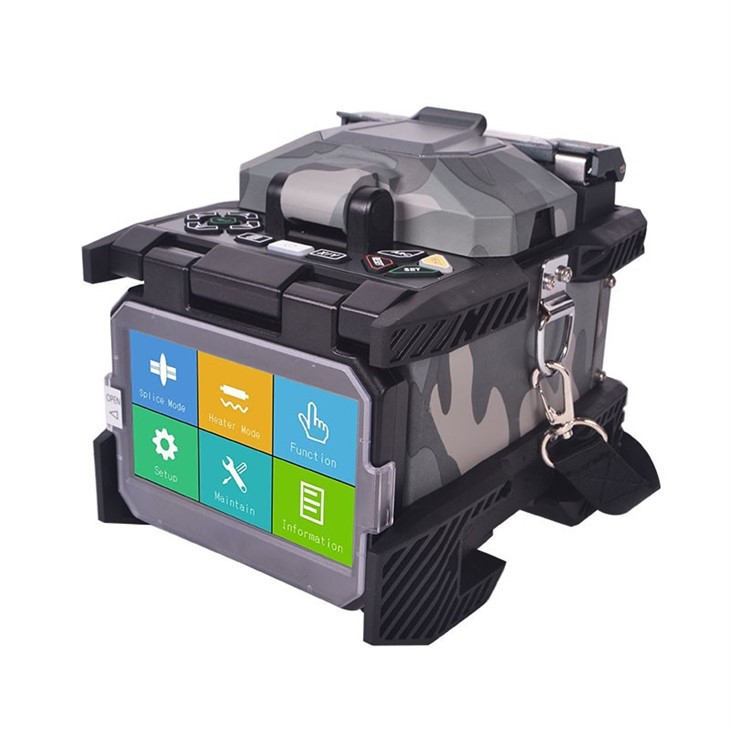

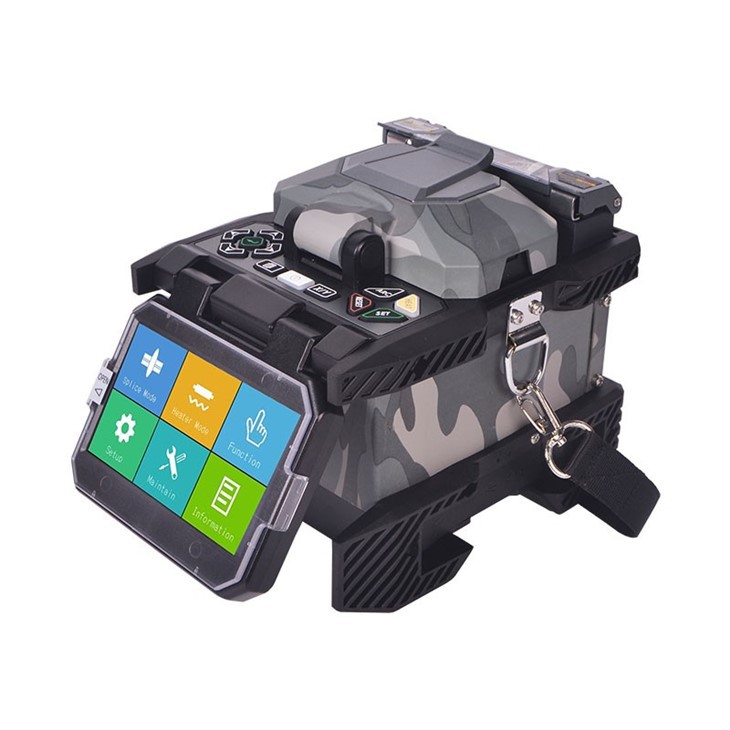

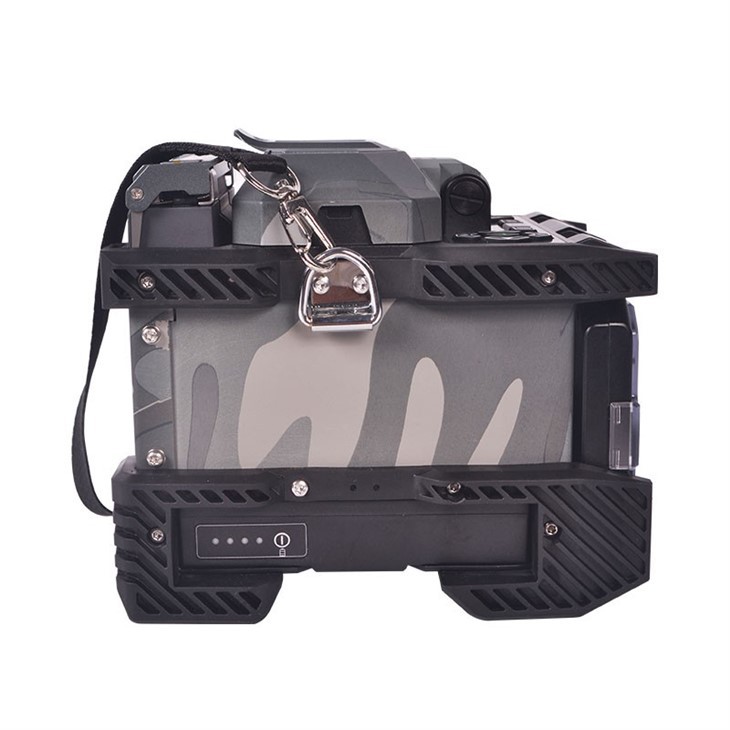

AV6481A Fiber Optic Splice Machine Price 6s Fiber Optic Fusion Splicer

Model

6481A9+ Optical Fiber Fusion Splicer

Motor qty

6 motors

Alignment method

Precise core alignment and cladding alignment

Applicable fibers

Any common optical fibers, rubber-insulated fibers and jumpers that meet requirements of ITU-TG.651~653, ITU-TG.655 and ITU-TG.657.

Optical fiber diameter

Cladding： 80～ 150μm, coating layer: 0.1 ～3mm

Cutting length

5～ 16mm( coated optical fiber diameter≤250μm); 10mm( coated optical fiber diameter： 0.25~3mm)

Fusion splicing

consumption(typical

0.02dB(SMF); 0.01dB( MMF);

0.04dB( DSF); 0.04dB( NZDSF)

Return loss

Better than 60dB

Fusion splicing time (typical value)

7s

Heating time (typical value)

15s

Pulling force test

1 .96～2.25N

Thermal shrinkage

60mm, 40mm and a series of thermal shrinkage tubes

Graphical display

High-performance 4.3 inch LCD

Fusion splicing record

30000 groups, 200 images

Battery capacity

1 1 .1V,6400mAh,typical value of fusion splicing and thermal cycle is more than 220 times

Battery service life

Cycle charging times reach 300～ 500, can be replaced by customers

Electrode service life

Typical value is 3000 times, can be replaced by customers

Construction lighting

Built-in lights with high-brightness and wide lighting area

Working environment

Temp:-10～ 50℃; hum: 0～95%RH, height above sea level:0 ～6000m

Operation interfaces

GUI graphical operation interfaces

External power

AC: AC100～240V, 60Hz ,0～ 1 .5A; DC: DC10～ 15V

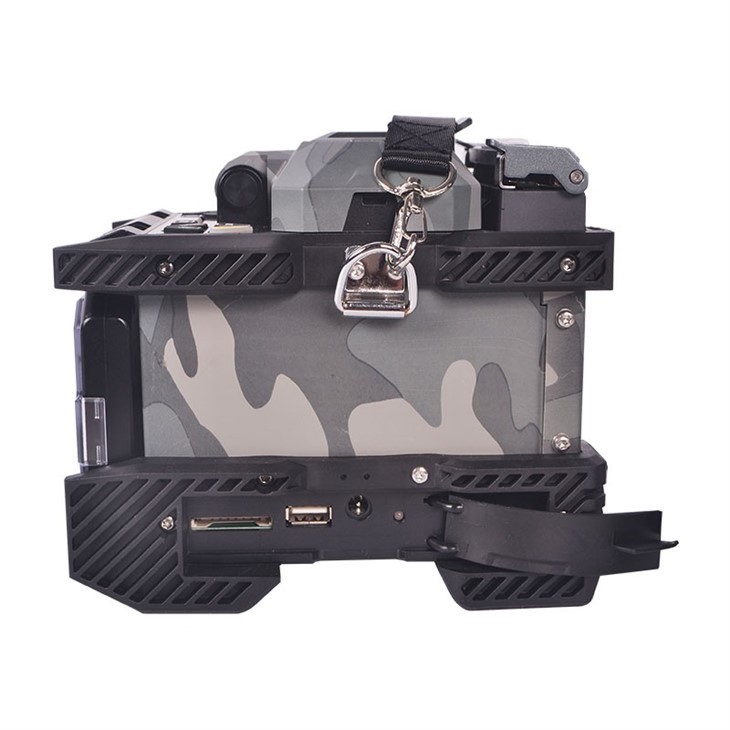

External port

USB / SD

Dimensions

120mm(W)×130mm(H)×154mm(D)(without rubber anti-vibration pad)

Weight

1 .8kg( host engine),0.3kg( battery)
