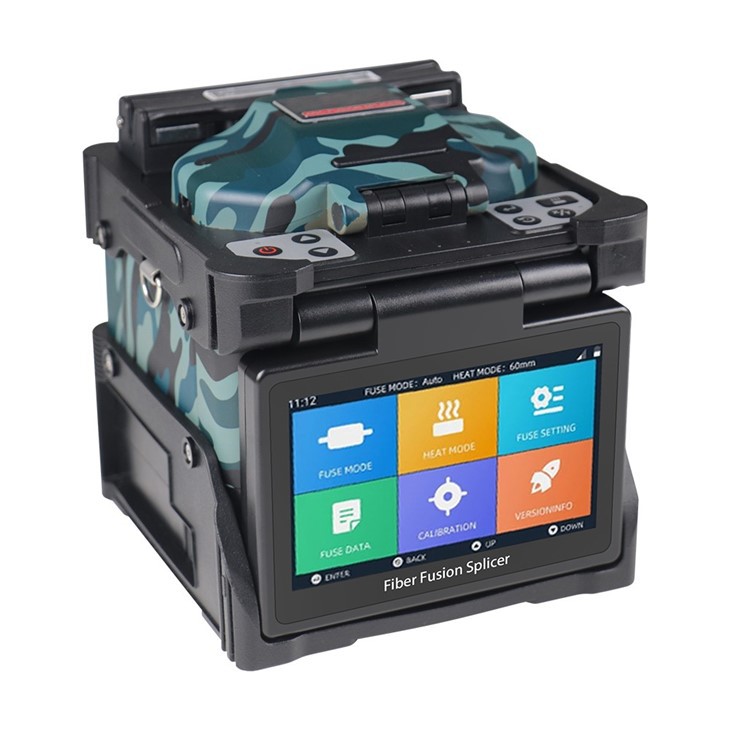

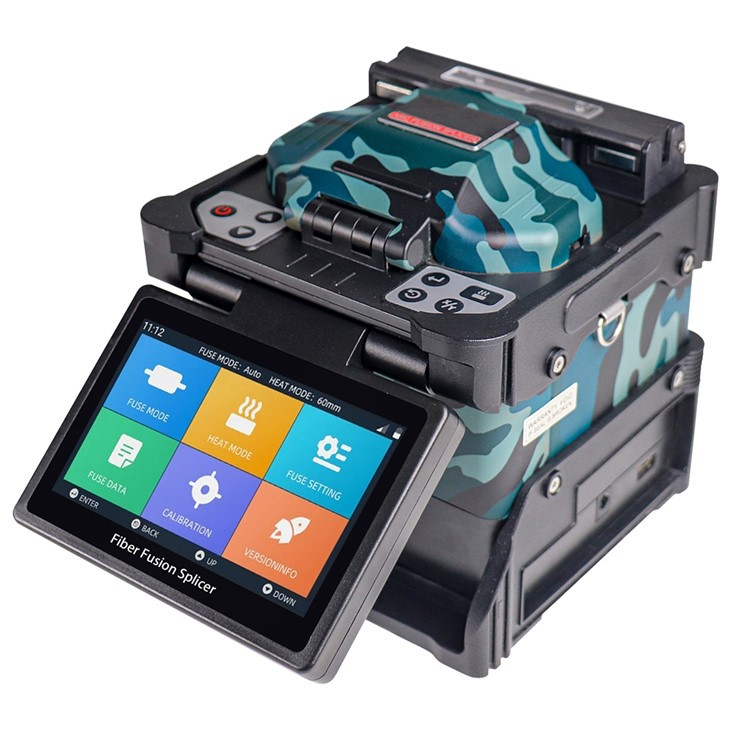

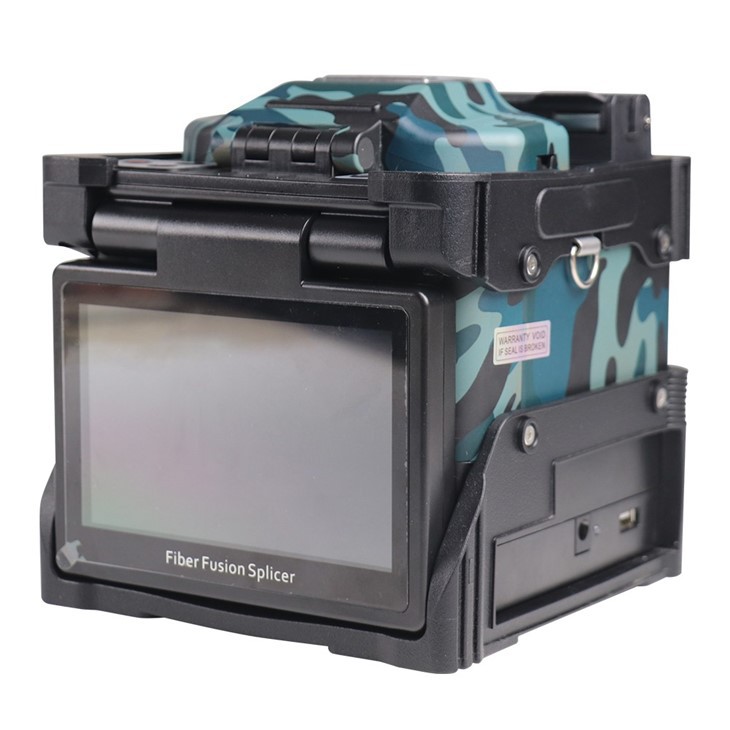

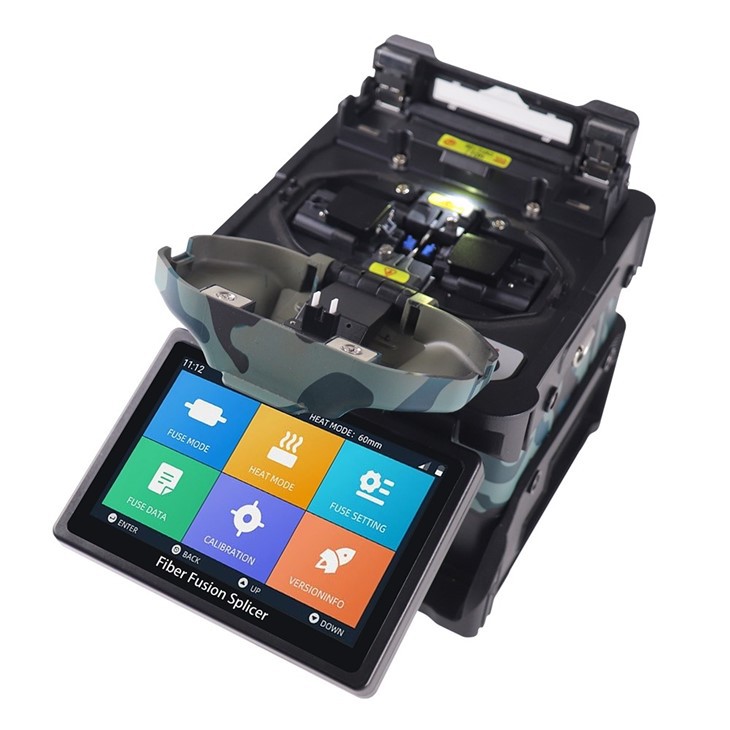

Splice Machine
Product Description
#6 motors
#15 seconds fast heating
Advantages
- boot within 3 secs

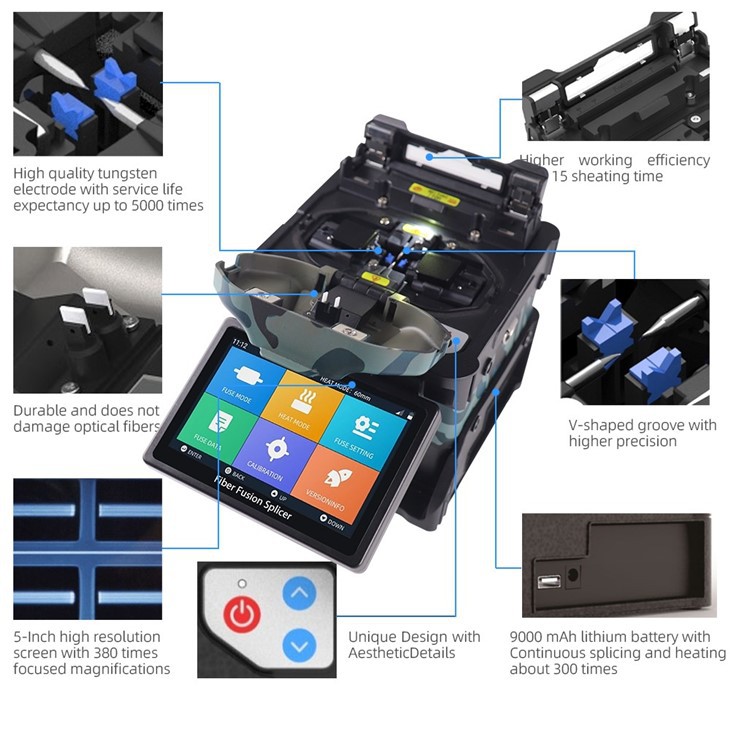

Features
High quality tungsten electrode with service life expectancy up to 5000 times
Durable and does not damage optical fibers
5-Inch high resolution screen with 380 times focused magnifications
Higher working efficiency with 15s heating time
V-shaped groove with higher precision
Unique Design with Aesthetic Details
9000 mAh lithium battery with Continuous splicing and heating about 300 times
Parameter
|
CPU
|
Industrial grade dual CPU with 4 core
|
| Fiber alignment |
Core/cladding alignment/auto-focus
|
| Applicable Fibers |
SM(G.652), MM(G.651),DS(G.653),
NZDS(G.655), BIF/UBIF(G.657)
|
| Fiber diameter |
cladding diameter:80~150μm /Coating
diameter: 100μm~3mm
|
| Fiber Cleave Length |
5~16mm
|
| Align Mode |
Auto focus
|
| Align Mode |
manual/auto
|
| Welding/heating mode |
Preset a variety of welding mode and
heating mode, can be customized
|
| Average Splicing Loss |
0.02dB (SM), 0.04dB(MM),0.04dB(DSF),
0.04dB(NZDSF)
|
|
Splicing time
|
6s
|
|
heating time
|
15s |
|
Storage
|
10000 groups
|
|
image magnification
|
380 times
|
|
Screen
|
5 inch digital high-quality touch LCD screen
|
|
lighting
|
Built-in high beam lighting
|
|
Power supply
|
Input AC100-240V (50-60Hz), output
DC10~13.5V
|
| external interface |
DC adapter,USB interface
|
|
tensile testing
|
1.96~2.25N
|
|
shrinkable sleeve
|
10mm-60mm
|
|
Battery life
|
7800mAh, 500 cycles splicing and heating
|
|
Electrode lifetime
|
3000~5000 counts(Recommended)
|
|
Communicatio
n interface
|
U-disk automatic software upgrade,Melding
data export
|
|
opetarating
condition
|
altitude:0~5000m,wind speed:15m/s,
temperature:-10~+50ºC,humidity:0~95%RH
|
|
resistance
|
Dust/shock/water
|
| Storage condition |
Humidity: 0-95%,Temperature:-
20~50ºC,Battery storage:-20-30ºC
|
|

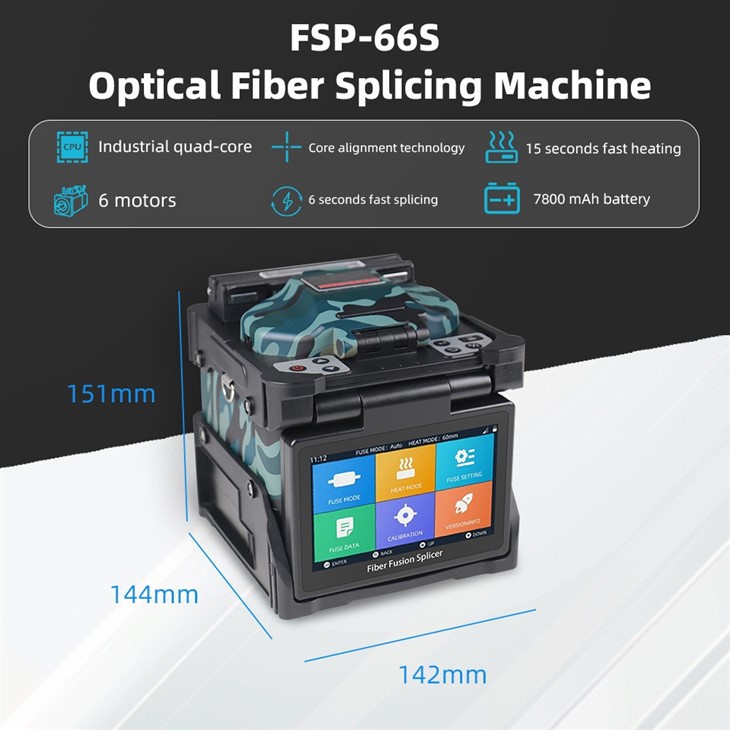

dimensions(mm)
|
144*142*151
|
| weight | 2.2kg |
