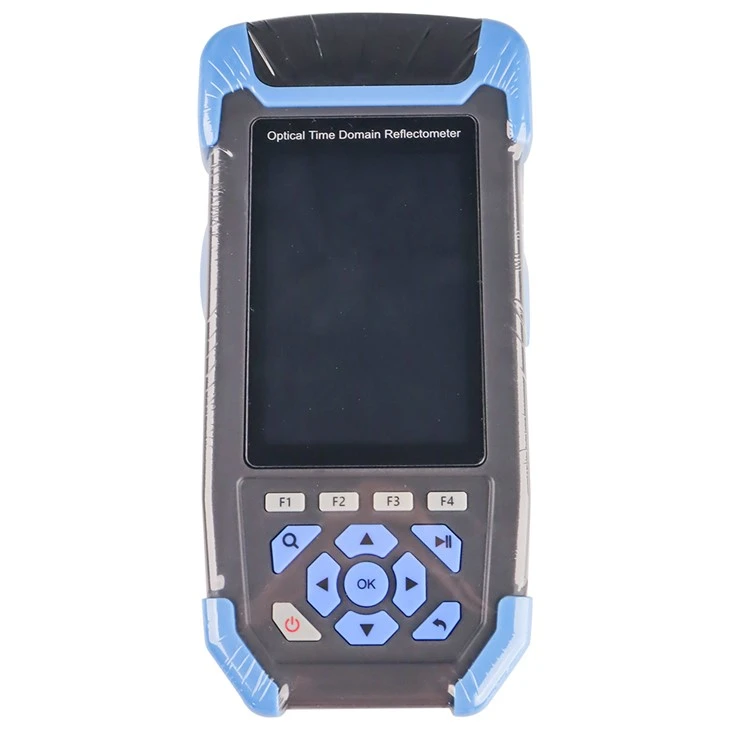

OTDR 60km 1310/1550nm
Parameter
| Mini-Pro OTDR | ||
| Model | SFT3302SJ | |
| Wavelength | 1310/1550nm or 1610nm±20nm online testing | |
| Fiber Type | G.652 SM Fiber | |
| Dynamic Range | 24dB | |
| Event Blind Zone | 3m | |
| ATT Blind Zone | 8m | |
| Test Range | 10m~60km | |
| Pulse Width | 5ns~10us | |
| Ranging Accuracy | ±(1m+Sampling Interval +0.005%×Test Distance) | |
| Loss Accuracy | ±0.2dB/dB | |
| Sampling Points | 16k~ 128k | |
| Sampling Resolution | 0.05m~8m | |
| Reflection Accuracy | ±3dB | |
| Data Storage | Internal:≥600;External:TF Card | |
| Laser Safety Level | Class level | |
| File Format | SOR Standard File Format | |
| Connector | FC/APC(Interchangeable SC ,ST) | |
| OPM | ||
| Wave Range | 800nm~ 1700nm | |
| Interface Type | Universal Joint FC/SC/ST | |
| Test Range | -50dBm~+26dBm | |
| Uncertainty | ±5% | |
| Frequency Identification | CW/270/330/1k/2kHz | |
| Calibration Wavelength | 850/1300/1310/1490/1550/1577/1625nm | |
| LS | ||
| LD Type | FP-LD | |
| Output Wavelength | 1610nm±20nm | |
| Output Power | ≥-5dBm | |
| Modulation Frequency | 270/330/1k/2kHz | |
| Stability | CW ,±0.5dB/15min(Test after15mins of preheating) | |
| Connector | FC/APC(Interchangeable SC ,ST) | |
| VFL | ||
| Work Wavelength | 650nm±20nm |
| Output Power | ≥10mW |
| Mode | CW/1Hz/2Hz |
| Connector | FC/SC/ST |
| RJ45 Cable Length Measurement | |
| Test Range | 300m |
| Other Parameters | |
| Dispaly | 3.5 inch Color LCD |
| Data Interface | Micro USB |
| External Storage | TF Card |
| Power Supply | Polymer Li-battery:3.7V ,4000mAh Power Adapter:5VDC ,2A |
| Battery Life | Standby>20h;Measuring Time>12h |
| Operating Temperature | - 10ºC~+50ºC |
| Storage Temperature | -40ºC~+70ºC |
| Relative Humidity | 0~95%Non Condensing |
| Weight | ≤350g |
| Dimension | 173mm×82mm×37mm |
| Functions:OTDR/OPM/LS/VFL/RJ45 Sequence/ Insertion loss /Flashlight | |
1. What are the payment terms that you support?
Usually, we accept T/T, PayPal, Western Union and so on. You can select the termsof payment which is more convenient for you.
2. What about the lead time?
Usually, if there's stock, we ship the goods within 3-5 working days after the deposit is confirmed. lf it is out of stock. the lead time depends.
3.How about the shipping?
When the package is small, we normally choose FedEx, DHL, TNT, and UPS and so on, while the goods have high weight and volume, we suggest using air or sea shipment.
4. How can I place an order?
(1) Negotiation is agreed upon for the product price and specifications.
(2) The Proforma invoice will be sent for confirmation.
(3)After the agreement on the proforma invoice, the customer makes the deposit
(4) Manufacturing will be started as soon as the payment is confirmed by our bank
(5) Ship out the goods within the agreed delivery deadline.
5.Can you do OEM for us?
Yes. If there is a certain order quantity, we can do OEM including printing, logo, and customized model for you.
6.How about the Warranty?
There are 12 months for the warranty. While the warranty is not responsible for those broken by violence or updated with other brands.
