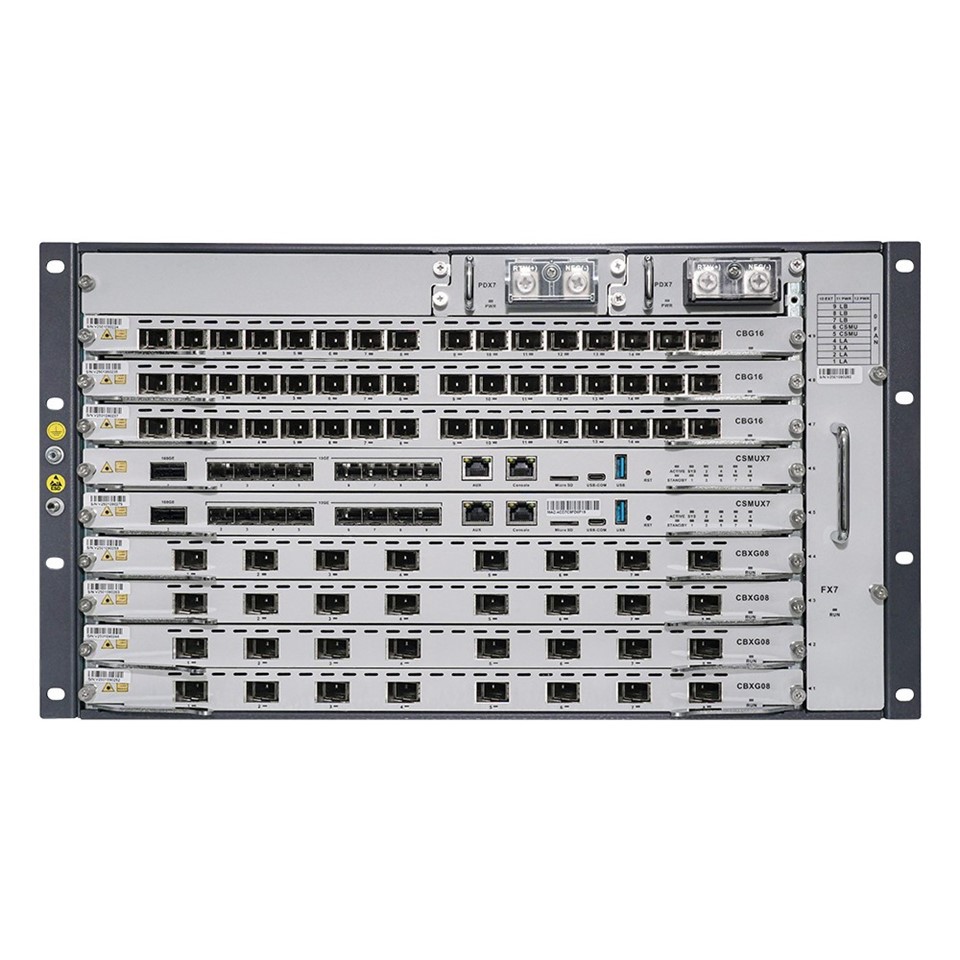

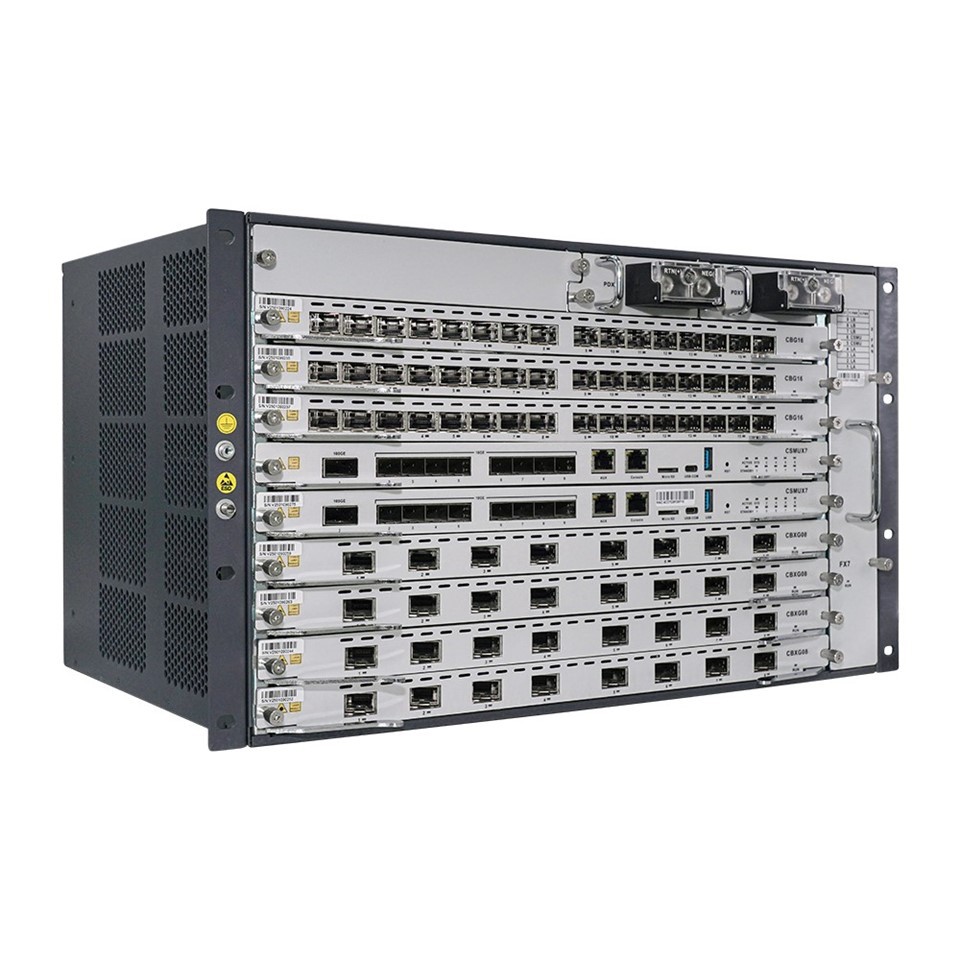

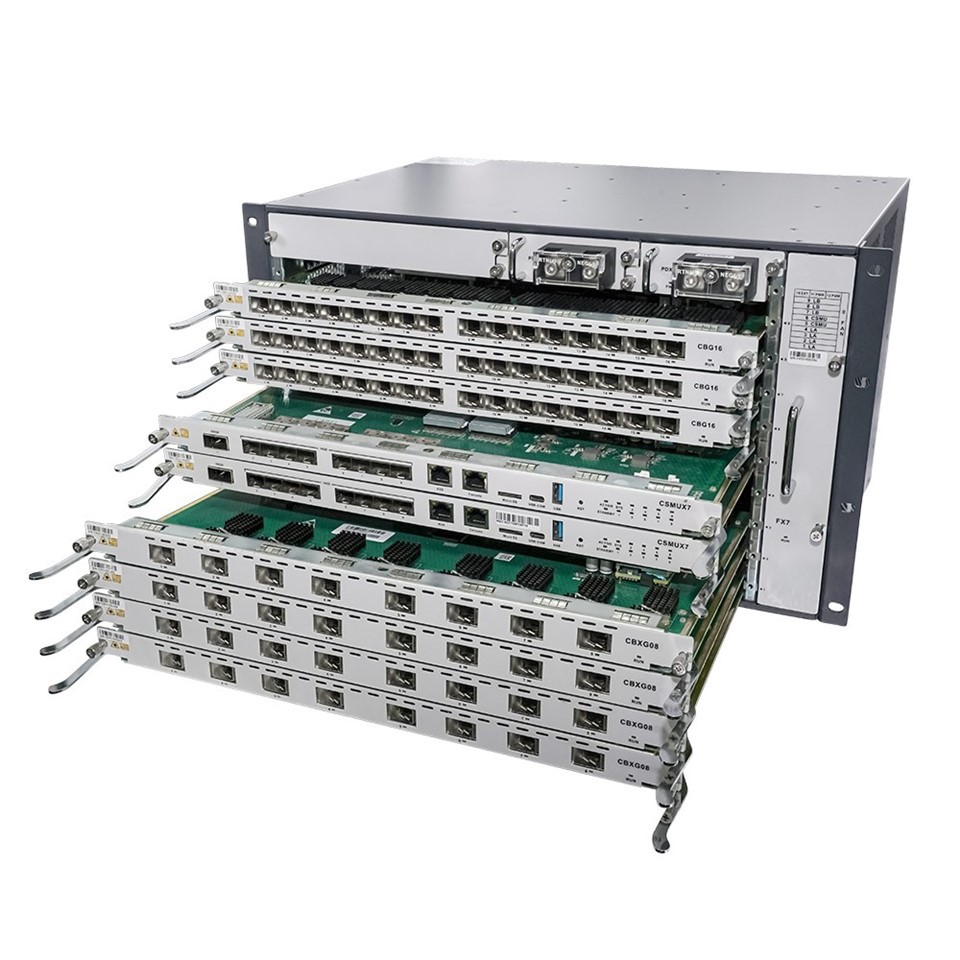

Chassis OLT X7
SOFTEL OLT-X7 series are self-developed high-end chassis OLTs,include the two models, which adopt high
performance chipset and complies with ITU-T interational standards.OLT-X7 series provide multiple access methods such as GPONXG-PON, XGS-PON and Combo PON, supports multiple network solutions such as FTTH, FTTB,
FTTC, FTTD and FTTM,realizes high-bandwidth and high-speed data transmission, and meets the needs of large-
scale deployment.The products have comprehensive management and monitoring functions, simplifies the operation and maintenance process, andprovide rich business functions and scalablity. it provides operators with excellent user experience and high-quality services, and alsomeets the challenges faced by operators in the development of "wider, faster and smarter" gigabit uitra-wide networks.
|
Item |
OLT-X7 Series |
|
|
Chassis |
Rack |
19 Inch Standard |
|
Dimension(L*W*H) |
442*299*266.7mm(Without mounting ears) |
|
|
Weight |
Full of cards |
22.3kg |
|
Chassis only |
8.7kg |
|
|
Working Temperature |
-20.C ~+60.C |
|
|
Working Humidity |
5%~95%(non-condensing) |
|
|
Storage Temperature |
-40 ~ +70.C |
|
|
Storage Humidity |
5%~95%(non-condensing) |
|
|
Power Supply |
DC |
-48V |
|
Backplane Bandwidth (Gbps) |
3920 |
|
|
CSMU Card: CSMUX7 |
||
|
Uplink Port |
QTY |
9 |
|
SFP(GE)/SFP+( 10GE) |
8 |
|
|
QSFP28(40GE/50GE/ 100GE) |
1 |
|
|
Management Ports |
1*AUX(10/100/1000BASE-T out-band port), 1*CONSOLE port, 1*MicroSD port, 1*USB-COM, 1*USB3.0 |
|
|
Slot position |
Slot 5-6 |
|
|
Service Card: CBG16 |
||
|
GPON Port |
QTY |
16 |
|
Physical Interface |
SFP Slots |
|
|
Connector Type |
Class C+++/C++++ |
|
|
PON Port Specification (Class C+++ module) |
Transmission Distance |
20KM |
|
PON Port Speed |
Upstream: 1.244Gbps, Downstream: 2.488Gbps |
|
|
Wavelength |
Upstream: 1310nm , Downstream: 1490nm |
|
|
Connector |
SC/UPC |
|
|
TX Power |
+4.5 ~ + 10dBm |
|
|
Rx Sensitivity |
≤ -30dBm |
|
|
Saturation Optical Power |
-12dBm |
|
|
Slot position |
Slot 1-4, Slot 7-9 |
|
|
Service Card: CBXG08 |
||
|
GPON&XG(S)-PON Combo Port |
QTY |
8 |
|
Physical Interface |
SFP+ Slots |
|
|
Connector Type |
N2_C+ |
|
|
GPON&XG(S)-PON Combo Port Specification (N2_C+ module) |
Transmission Distance |
20KM |
|
XG(S)-PON Port Speed |
GPON: Upstream1.244Gbps, Downstream 2.488Gbps XG-PON: Upstream 2.488Gbps, Downstream 9.953Gbps XGS-PON: Upstream 9.953Gbps, Downstream 9.953Gbps |
|
|
Wavelength |
GPON: Upstream 1310nm , Downstream 1490nm XG(S)-PON: Upstream 1270nm , Downstream 1577nm |
|
|
Connector |
SC/UPC |
|
|
TX Power |
GPON: +3dBm ~ +7dBm , XG(S)PON: +4dBm ~ +7dBm |
|
|
Rx Sensitivity |
XGS-PON: -28dBm , XG-PON: -29.5dBm , GPON: -32dBm |
|
|
Saturation Optical Power |
XGS-PON: -7dBm , XG-PON: -9dBm , GPON: -12dBm |
|
|
Slot position |
Slot 1-4 |
|
