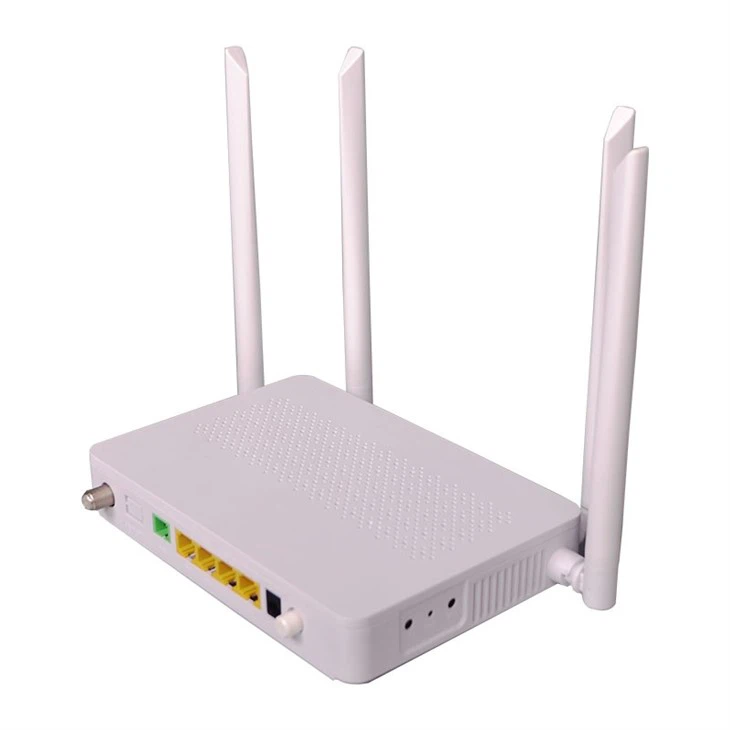

XPON ONU Dual Band 4 Ports
ONT-4GE-RFDW is launched to be oriented to multi-service integration network as an optical network unit device, which belongs to XPON HGU terminal for FTTH/O scenario.
It configures four 10/100/1000Mbps ports, WiFi (2.4G+5G) port and RF interface that providing with high-speed data services and high-quality video services to users.
Hardware parameters
|
Dimension |
220mm x 150mm x 32mm(Without antenna) |
|
Weight |
Approximately 310g |
|
Working environment temperature |
0℃～+40℃ |
|
Working environment humidity |
5% RH～95% RH, non-condensing |
|
Power adapter input level |
90V～270V AC,50/60Hz |
|
Device power supply |
11V～14V DC,1 A |
|
Static power consumption |
7.5 W |
|
Maximum power consumption |
18 W |
|
Interfaces |
1RF+4GE+Wi-Fi(2.4G+5G) |
|
indicator light |
POWER/PON/LOS/LAN/WLAN/RF |
Interface parameters
|
PON interface |
ClassB+ -27dBm receiver sensitivity Wavelength：upstream 1310nm,downstream 1490nm Support WBF Flexible mapping between GEMPort and TCONT Authenticationmethod:SN/password/LOID(GPON) Two-way FEC(Forwarderrorcorrection) Support DBA for SRand NSR |
|
Ethernet port |
Stripping based on VLAN Tag/Tag for Ethernet port. 1:1VLAN/N:1VLAN/VLAN Pass-through QinQVLAN MACaddress limit MACaddress learning |
|
WLAN |
IEEE 802.11b/g/n 2×2MIMO Antenna gain：5dBi WMM(Wi-Fi multimedia) Multiple SSID multiple WPS |
|
RF interface |
Supports standard RF interfaces Support hd data streaming |
5G parameters
|
Network standard |
IEEE 802.11ac |
|
Antennas |
2T2R, support MU-MIMO |
|
Maximum supported rates |
20M:173.3Mbps 40M:400Mps 80M:866.7Mbps |
|
Data modulation type |
BPSK QPSK 16QAM 64QAM 256QAM |
|
Maximum output power |
≤20dBm |
|
Typical channel (customizable) |
36,40,44,48,52,56,60,64,100,104, 108,112,116,120 ,124,128,132,136, 140,144,149,153,157,161,165 |
|
Encryption mode |
WPA,WPA2,WPA/WPA2,WEP,NONE |
|
Encryption type |
AES,TKIP |
Function Data
Intelligent interconnection
WiFi intelligence coverage
Support hd data streaming
Any port anyservice
Parental control
L2/L3(IPv4) re-transmission: 1G forward,2G backward
Properties for three layers
PPPoE/static IP/DHCP address access
NAT/NAPT
ALG,UPnP
DDNS/DNS server/DNS client
IPv6/IPv4 dual-stack,DS-Lite
Static route/default route
Multicast
IGMP v2/v3snooping
IGMP v2proxy
IGMP v3proxy
MLD v1/v2snooping
Qos
Ethernet port speed limit
802.1p priority
SP/WRR/SP+WRR
Broadcast message speed limit
Security
SPIFirewall
MAC/IP/URL address filtering
O&M
OMCI/WebUI/TR069
Powersaving
Indicator light energy-efficient
Timing switch
FAQ
1. How can I place an order?
(1) Negotiation is agreed upon for the product price and specifications.
(2) The Proforma invoice will be sent for confirmation.
(3) After the agreement on the proforma invoice, the customer makes the deposit.
(4) Manufacturing will be started as soon as the payment is confirmed by our bank.
(5) Ship out the goods within the agreed delivery deadline.
2. Can you do OEM for us?
Yes. If there is a certain order quantity, we can do OEM including printing, logo, and customized model for you.
3. How about the Warranty?
There are 12 months for the warranty.
While the warranty is not responsible for those broken by violence or updated with other brands.
