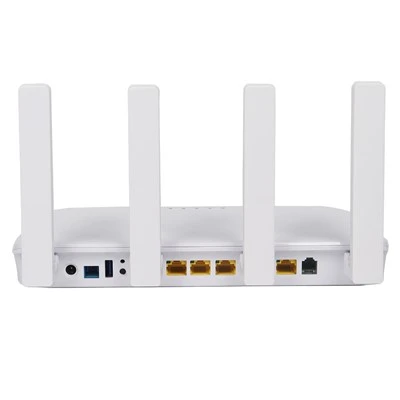

Xpon Hgu 4ge + CATV + WiFi6 Ax3000 (2.4G +5G)

ONT-R4630H



Introduction

ONT-R4630H is launched to be oriented to multi-service integration network as an optical network unit device, which belongs to XPON HGU terminal for FTTH/O scenario. It configures four 10/100/1000Mbps ports, WiFi6 AX3000 (2.4G+5G) port and RF interface that providing with high-speed data services and high-quality video services to users.

Functional Features

Support docking compatibility with OLT of various manufacturers

Support automatically adapt to the EPON or GPON mode used by the peer OLT

Support 2.4 and 5G Hz dual band WIFI

Support multiple WIFI SSID

Support EasyMesh WIFI function

Support WIFI WPS function

Support multiple wan configuration

Support WAN PPPoE/DHCP/Static IP/Bridge mode.

Support CATV video service

Support fast transmission of hardware NAT

Support OFDMA, MU-MIMO,1024-QAM

Properties for three layers

Compliance with IEEE802.11b/g/n/ac/ax 2.4G & 5G

WIFI standard

Support IPV4 & IPV6 Management and

transmission

Support TR-069 remote configuration and

maintenance

Support Layer 3 gateway with hardware NAT

Support Multiple WAN with Route/Bridge mode

Support Layer 2 802.1Q VLAN, 802.1P QoS,

ACL etc

Support IGMP V2 and MLD proxy/ snooping

Support DDNS, ALG, DMZ, Firewall and

UPNP service

Support CATV interface for video service

Support bi-directional FEC





Qos
Ethernet port speed limit
802.1p priority
SP/WRR/SP+WRR
Broadcast message speed limit

Security
SPIFirewall
MAC/IP/URL address filtering



O&M
OMCI/WebUI/TR069



Powersaving
Indicator light energy-efficient

Timing switch

Specification

PON interface	Interface Type: SC/APC, CLASS B+ Transmission distance: 0~20km Working wavelength: Up 1310nm; Down 1490nm;CATV 1550nm RX Optical power sensitivity: -27dBm Transmission rate: GPON: Up 1.244Gbps;Down 2.488Gbps EPON: Up 1.244Gbps;Down 1.244Gbps
Ethernet port	Interface type:4* RJ45 Interface parameters:10/100/1000BASE-T
Wirless	Interface type:External 4*2T2R External antenna Antenna gain: 5dBi Interface maximum rate: 2.4G WLAN: 574Mbps 5G WLAN: 2402Mbps Interface working mode: 2.4G WLAN:802.11 b/g/n/ax 5G WLAN:802.11 a/n/ac/ax
RF interface	Interface type: 1*RF Optical receiving wavelength: 1550nm RF output level : 80±1.5dBuV Input optical power: 0~-15dBm AGC range: 0~-12dBm Optical reflection loss: >14 MER: >35@-15dBm

Factory Picture

FAQ

1. What are the payment terms that you support?

Usually, we accept T/T, PayPal, Western Union, and Alibaba Trade Assurance. You can select the terms of payment which is more convenient for you.

2. What about the lead time?

Usually, if there's stock, we ship the goods within 3~5 working days after the deposit is confirmed. If it is out of stock, the lead time depends.

3. How about the shipping?

When the package is small, we normally choose FedEx, DHL, TNT, and UPS and so on, while the goods have high weight and volume, we suggest using air or sea shipment.

Hardware Specifications:

PON Interface:

Ethernet Interface :

Wireless:

CATV Interface:

POTS Interface:
