8 Port Pon EDFA Price

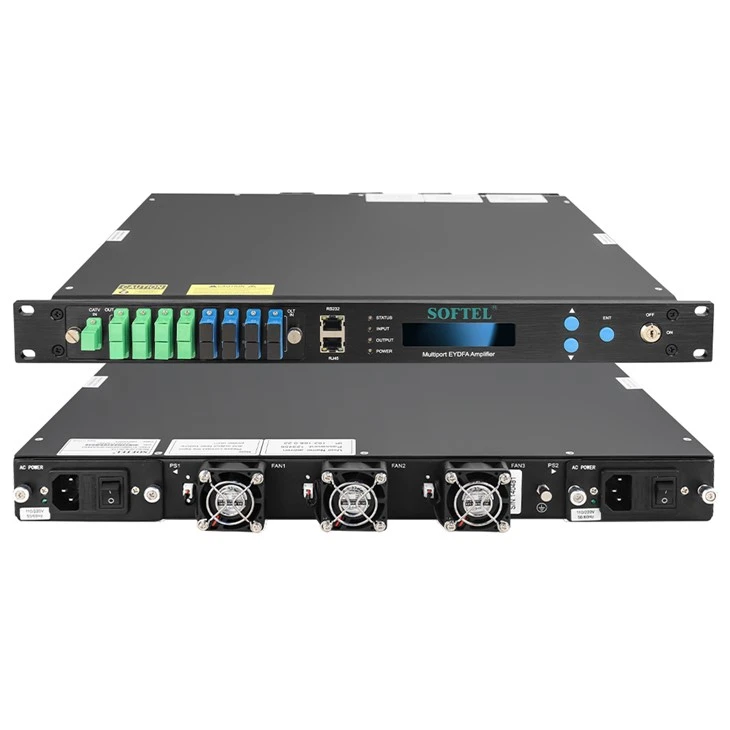

SPA-08×19 Multiport 8 Port Amplifier Pon EDFA



Features



Single/dual input for choice, built in optical switch for dual input, the switching power can be set by the button in the front panel or by web SNMP.

Output adjustable by buttons in the front panel or web SNMP, the range is down 4dBm

Maintenance function of one-time downward attenuation of 6dBm by buttons in the front panel or web SNMP, to facilitate the optical fiber hot-plug operation without turn off the device

Multi- ports output, can built in 1310/1490/1550nm WDM.

Standard RJ 45 port for remote control, we can provide output contract and web manager for choice, and also plug-in SNMP hardware can be reserved for update.

With laser key to turn on/off the laser.

With RF test function.

Adopts JDSU or Oclaro Pump laser

Led displays the working condition of the machine

Dual power hot plug power supply for choice, 90V～250V AC or -48V DC



Specifications

Items	EDFA 8 Port with WDM
Output(dBm)	31	32	33	34	35	36	37	38	39	40
Output(mW)	1250	1600	2000	2500	3200	4000	5000	6400	8000	10000
Input(dBm)	-8～+10
Range of output adjustment (dBm)	Down 4
one-time downward attenuation(dBm)	Down 6
Wavelength (nm)	1540～1565
Output stability(dB)	<±0.3
Optical Return Loss(dB)	≥45
Fiber Connector	FC/APC,SC/APC,SC/IUPC,LC/APC,LC/UPC
Noise Figure (dB)	<6.0(input 0dBm)
Web port	RJ45(SNMP)
Power Consumption  (W)	≤80
Voltage  (V)	220VAC(90～265),-48VDC
Working Temp(℃)	-0～55
Size     (mm)	370(L)×486(W)×88(H)
NW(Kg)	8
