Product Description
1310 nm optical transmitter has the perfect and stable circuit of optic power output and controlling circuit of thermoelectric refrigeration device of laser module assure the user the best quality and stable working for a long time.
1310 nm optical tranasmitter adopts 19”standard shelf and it can work with the voltage from 110V to 254V.

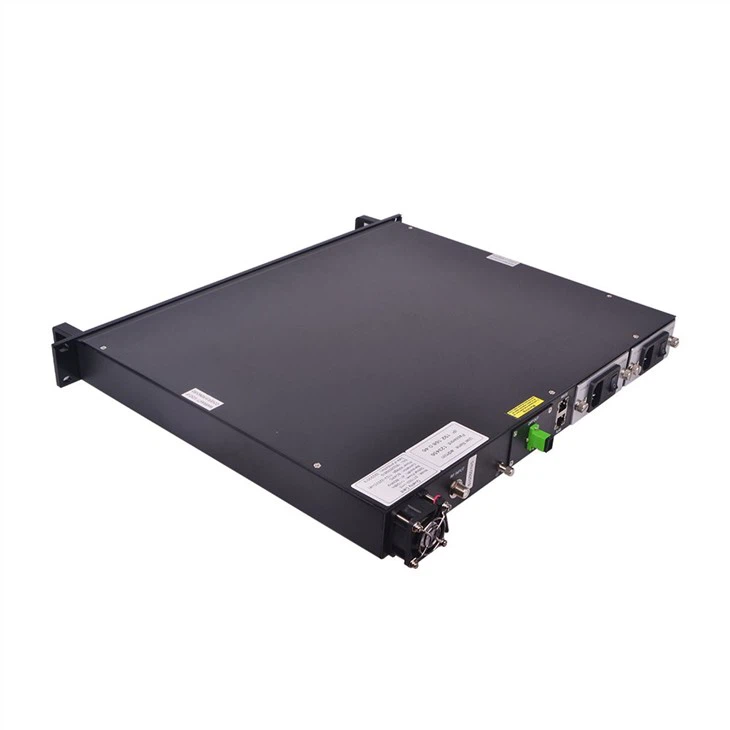

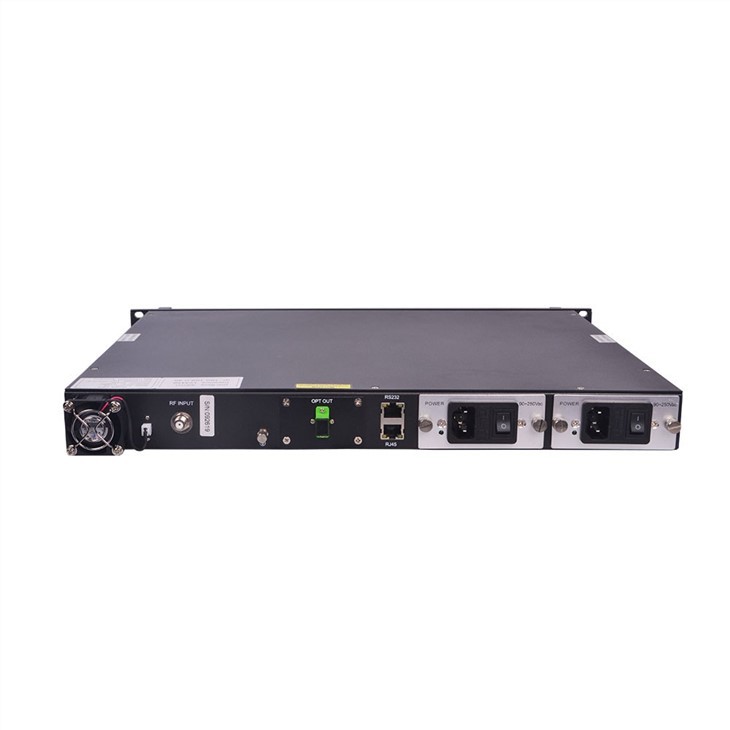

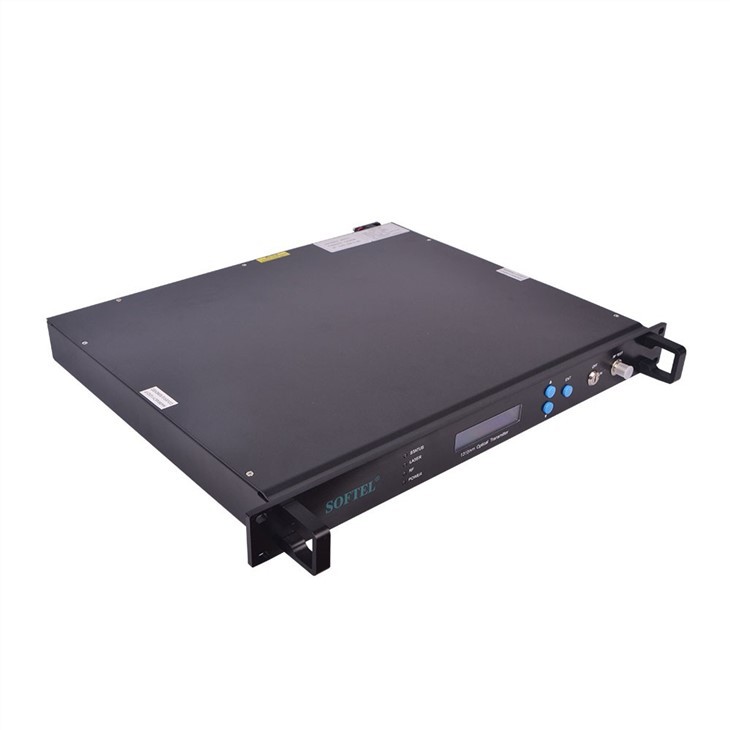

Product Display
Detail Images
Main Parameter
| Item | Unit | Feature | Supplement |
| Optic feature | |||
| Wavelength | nm | 1310±10 | |
| Output power | mW | 4~24 | |
| Return loss | dB | ≥55 | |
| Fiber connector | SC/APC or FC/APC | ||
| RF feature | |||
| Work bandwidth | MHz | 45~862 | |
| Input level | dBmV | 15~25 | AGC |
| Flatness | dB | ±0.75 | |
| Return loss | dB | 16 | |
| Input impedance | Ω | 75 | |
| RF interface | F type | ||
| Link feature | |||
| Transmit channel | PAL-D/60CH | NTSC/80CH | |
| CNR | dB | ≥52 | 10km optical fiber 0dBm receive |
| CTB | dB | ≤-70 | |
| CSO | dB | ≤-63 | |
| General feature | |||
| Network interface port | RJ45 R232 | Support I.E&SNMP | |
| Power supply | V | 90~260VAC | -48VDC optional(30~60VDC) |
| Power consume | W | ≤50 | Single power works |
| Work temperature | -40~85 | ||
| Operating relative humidity | % | 5~95 | |
| Size | “ | 19x14x1.75 |
Applications
•Used in main links and distribution network links in large and middle CATV station head-end. Analog- digital hybrid transmission >200Km (with dispersion compensation). Pure digital transmission (without dispersion compensation) >400Km, (with dispersion compensation) >700Km.
•ST1550EU ITU wavelength adjustable, applicable to the value-added service of DWDM fiber optic CATV system and CFG dispersion compensation system.
•It can be used in branch FTTH that has high system index demand. Point to Point>65Km, CSO ≤ -65dB. It can provide highly qualified and reliable value-added service such as RFTV, IPTV, and VOD for the secondary users. It can also avoid the limitation of CSO deterioration and transmission distance caused by laser chirp for adopting a 1550nm direct modulated optical transmitter.
Packaging of 1310 nm optical transmitter
Company Information
Packaging&Shipping
Lead Time
Usually, if there's stock, we ship the goods within 3~5 working days after the deposit is confirmed. If it is out of stock, the lead time depends.
OEM Service
Yes. If there is a certain order quantity, we can do OEM including printing, logo, and customized model for you.
Warranty Item
1310 nm optical transmitter are covered by 2 YEAR Limited Warranty, we provide its customer whole-life free technical supports. If warranty is expired, repair service only charges parts (if required).
The warranty is not responsible for those broken by violence or updated with other brands.
NOTE: we do not assume responsibility for damage caused by improper packing of returned unit(s).
