1550nm Optical Transmitter For CATV

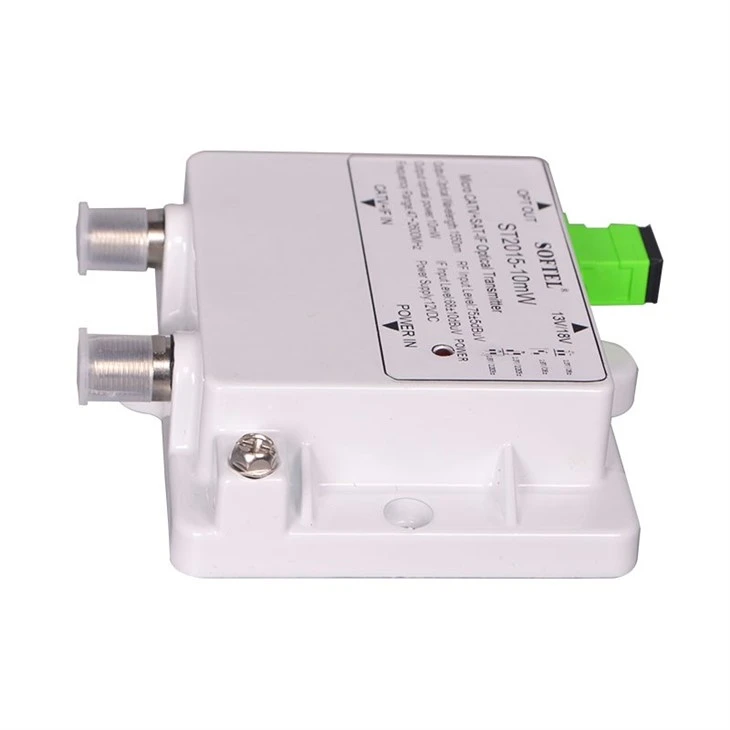

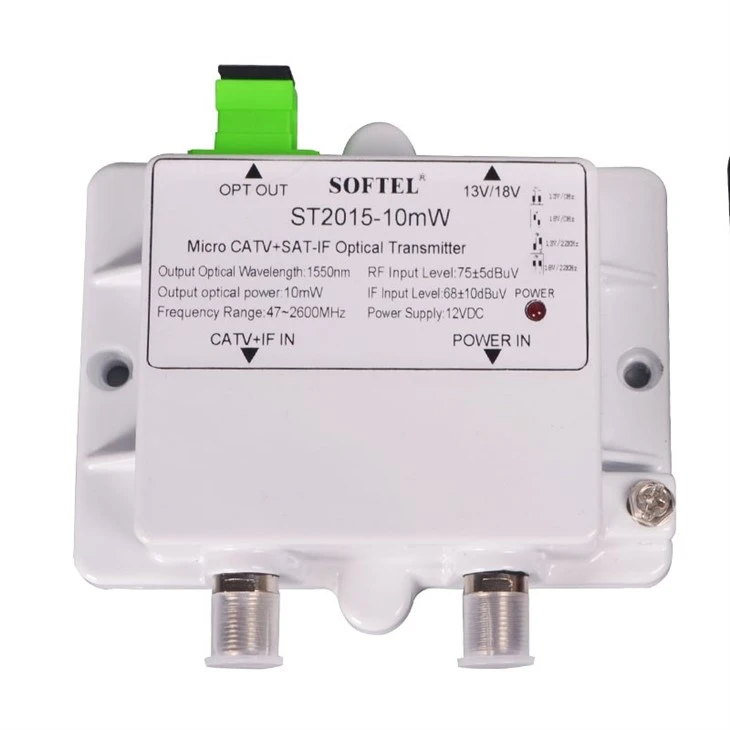

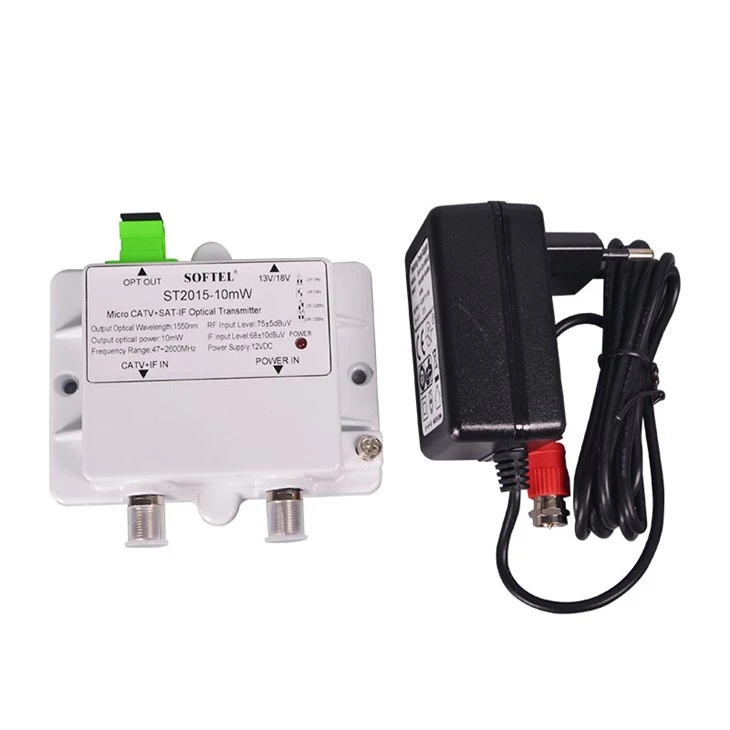

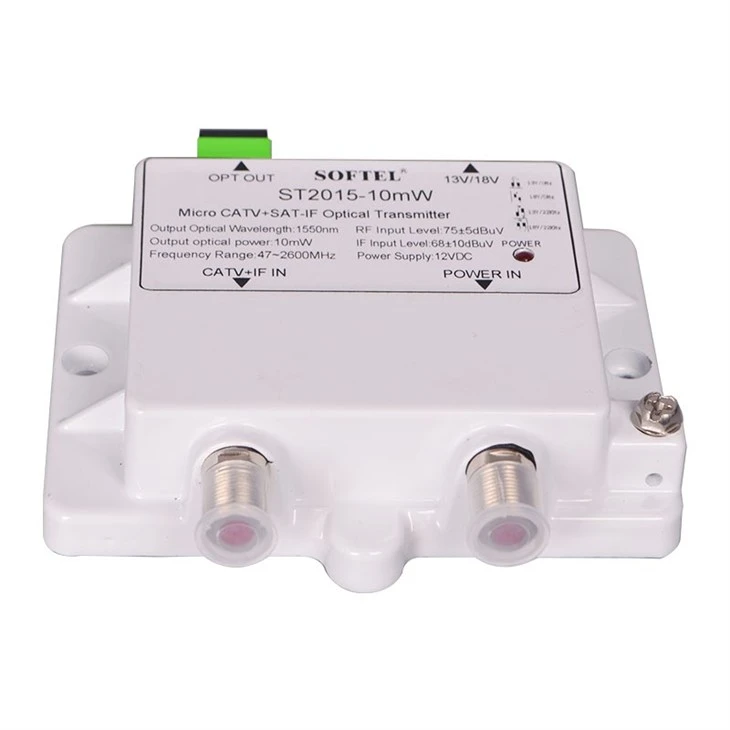

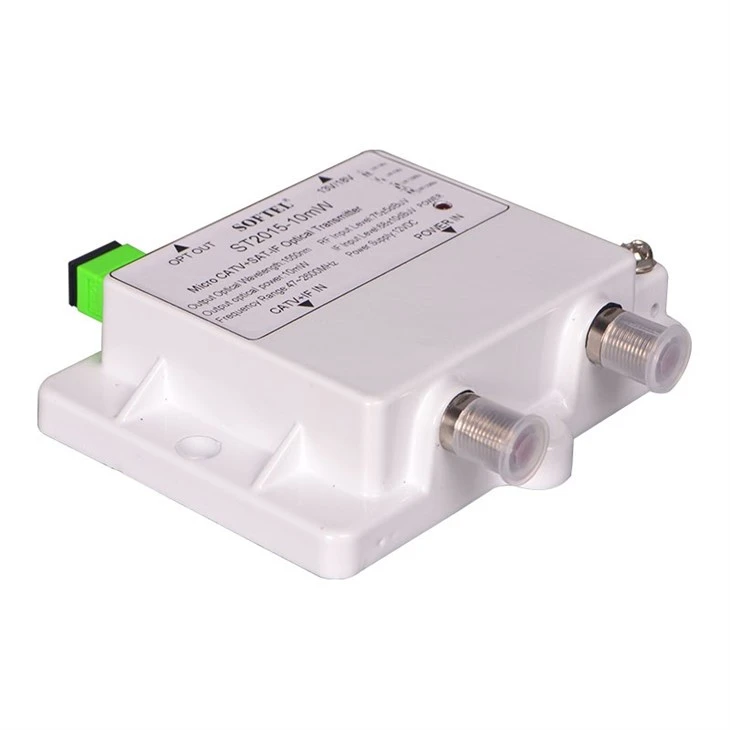

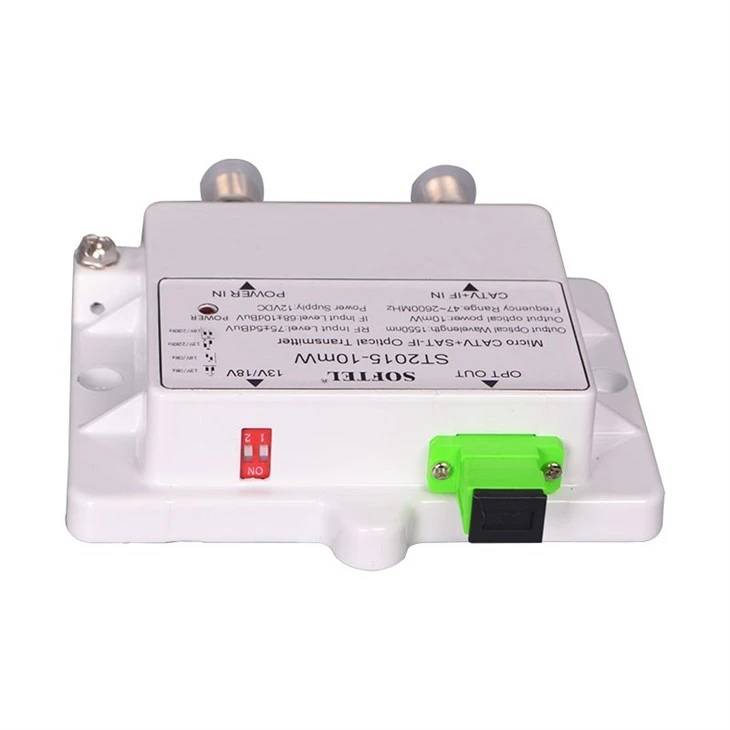

ST2015-10mW CATV SAT-IF 1550nm micro optical transmitter is a high-performance device designed for CATV and SAT-IF applications. Its core feature is the use of 1550nm wavelength laser technology, which provides up to 10mW of output power to ensure high stability of signal transmission and long-distance coverage. The device's compact size makes it easy to install and integrate, and it has low noise and high linearity to reduce signal distortion and improve transmission quality. In addition, ST2015 supports multi-channel signal transmission, strong compatibility, and is suitable for complex network environments. Its high-performance design and reliability make it ideal for CATV and SAT-IF systems that meet the demanding needs of users for high-quality signal transmission.
Send Inquiry
Product Introduction
Product Description
Specification
ST2015-10mW
ST2015-10mW CATV SAT-IF 1550nm micro optical transmitter is a high-performance device designed for CATV and SAT-IF applications. Its core feature is the use of 1550nm wavelength laser technology, which provides up to 10mW of output power to ensure high stability of signal transmission and long-distance coverage. The device's compact size makes it easy to install and integrate, and it has low noise and high linearity to reduce signal distortion and improve transmission quality. In addition, ST2015 supports multi-channel signal transmission, strong compatibility, and is suitable for complex network environments. Its high-performance design and reliability make it ideal for CATV and SAT-IF systems that meet the demanding needs of users for high-quality signal transmission.
|
NumberItem
|
Unit
|
Description
|
|
Customer Interface
|
||
|
RFConnector
|
|
F-female
|
|
Optical Connector
|
|
SC/APC orFC/APC
|
|
Power Supply
|
|
F-female
|
|
OpticalParameter
|
||
|
OpticalReturnLoss
|
dB
|
≥45
|
|
Output Optical Wavelength
|
nm
|
1550
|
|
Output OpticalPower
|
mW
|
3or10
|
|
OpticalFiber Type
|
|
SingleMode
|
|
RFParameter
|
||
|
FrequencyRange
|
MHz
|
47-2150
|
|
Flatness
|
dB
|
±0.75
|
|
CATVinputlevel
|
dBµV
|
80±5
|
|
SATVinputlevel
|
|
70±5
|
|
InputImpedance
|
Ω
|
75
|
|
ReturnLoss
|
dB
|
≥16
|
|
C/N
|
dB
|
≥52
|
|
CSO
|
dB
|
≥60
|
|
CTB
|
dB
|
≥63
|
|
OtherParameter
|
||
|
Power Supply
|
VDC
|
12
|
|
Power Consumption
|
W
|
<2
|
|
Dimensions
|
mm
|
100*98*28
|
Packaging & Shipping
Company Profile
Customer feedback
Customer feedback
FAQ
- What are the payment terms that you support?
- Usually, we accept T/T, PayPal, Western Union and so on. You can select the termsof payment which is more convenient for you.
- What about the lead time?
- Usually, if there's stock, we ship the goods within 3-5 working days after the deposit is confirmed. lf it is out of stock. the lead time depends.
- How about the shipping?
- When the package is small, we normally choose FedEx, DHL, TNT, and UPS and so on, while the goods have high weight and volume, we suggest using air or sea shipment.
- How can I place an order?
- (1) Negotiation is agreed upon for the product price and specifications. (2) The Proforma invoice will be sent for confirmation. (3)After the agreement on the proforma invoice, the customer makes the deposit (4) Manufacturing will be started as soon as the payment is confirmed by our bank (5) Ship out the goods within the agreed delivery deadline.
- Can you do OEM for us?
- Yes. If there is a certain order quantity, we can do OEM including printing, logo, and customized model for you.
- How about the Warranty?
- There are 12 months for the warranty. While the warranty is not responsible for those broken by violence or updated with other brands
