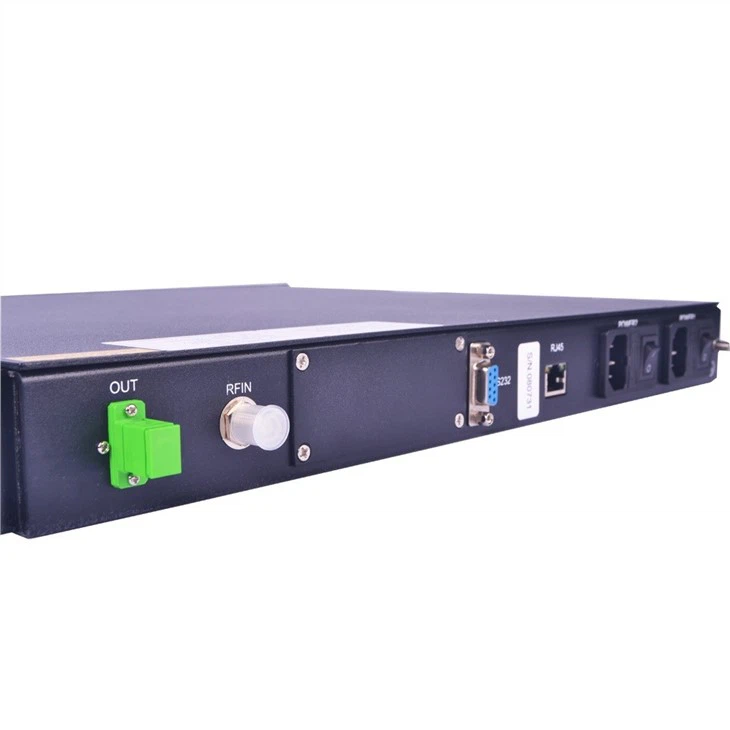

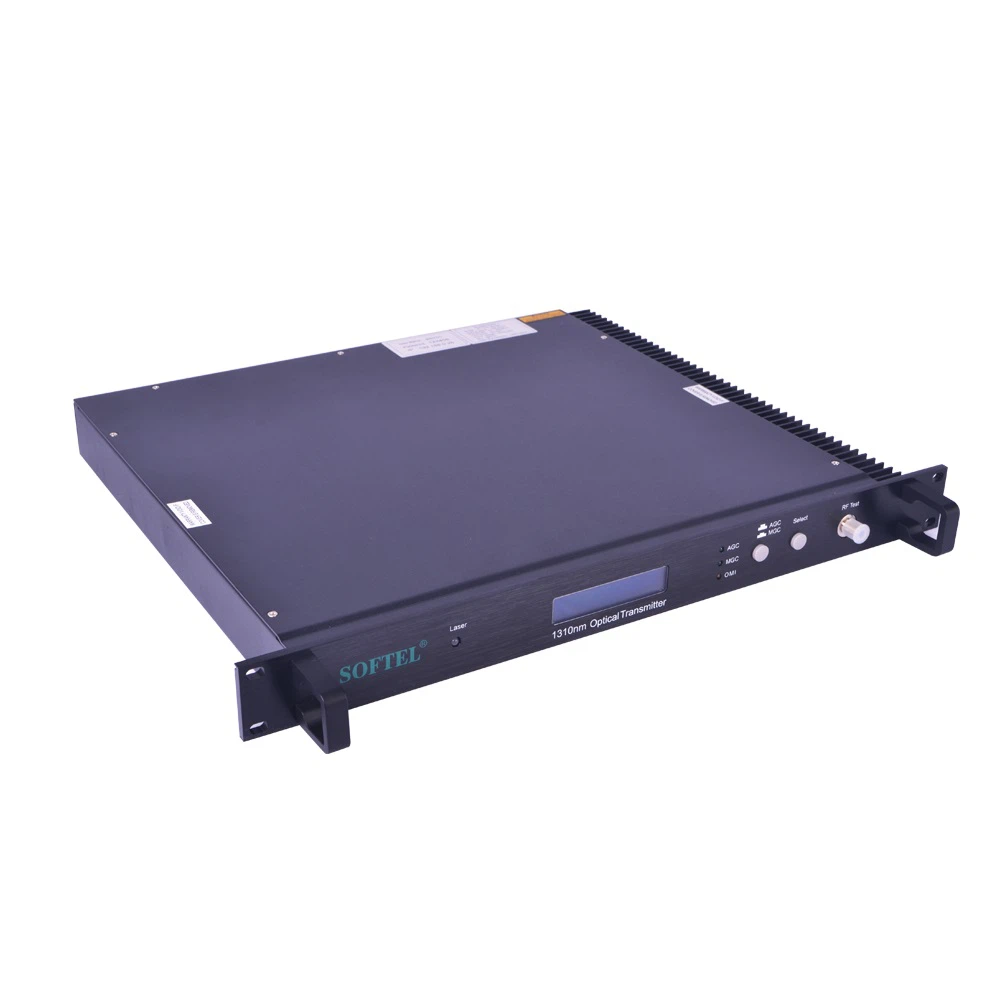

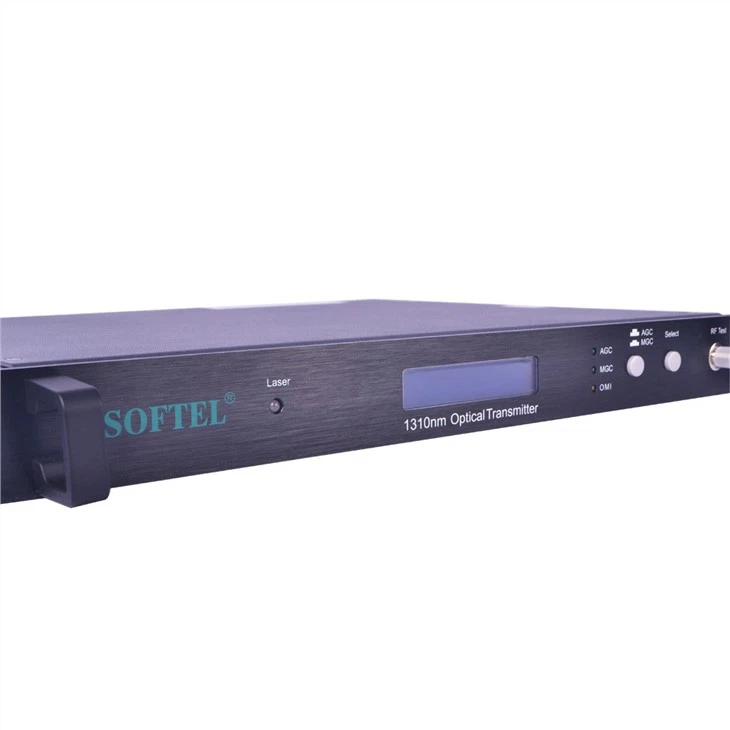

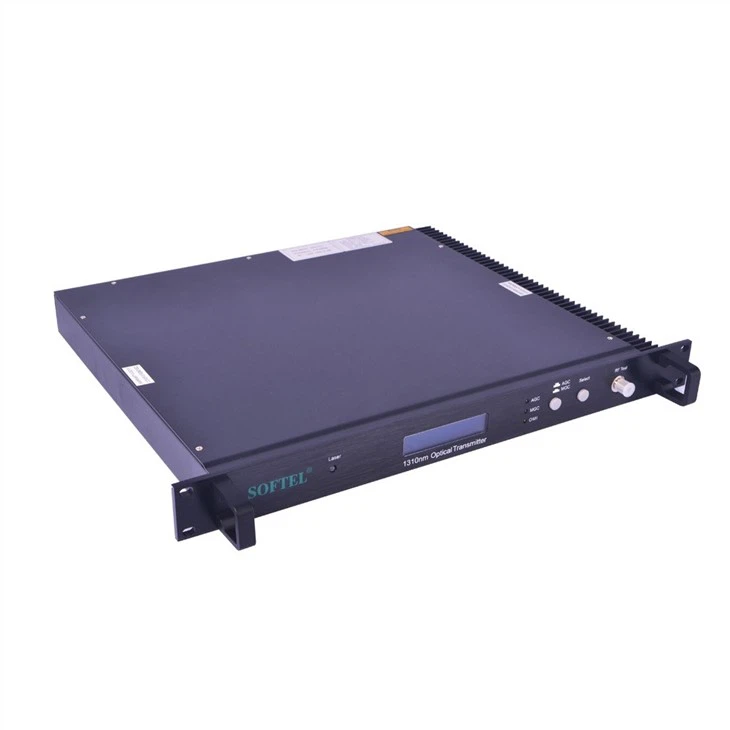

26mw 1310nm Optical Transmitter
26mw 1310nm optical transmitter
The transmitting modules of this machine adopt the imported DFB laser named Agere (ORTEL、Lucent),Mitsubishi、Fujisu、AOI and so on.
The internal RF driving amplifier and controlling circuit of this machine can ensure the best C/N. The perfect and stable circuit of optic power output and controlling circuit of thermoelectric refrigeration device of laser module assure the user the best quality and stable working for a long time.

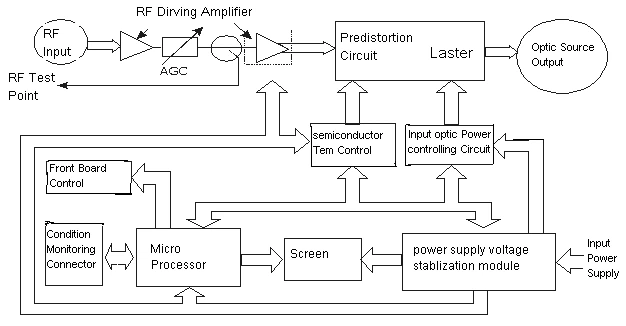

26mw 1310nm optical transmitter Diagram:
26mw 1310nm optical transmitter main Technical Parameters:
Model（ST1310） | -2 | -4 | -6 | -8 | -10 | -12 | -14 | -16 | -18 | -20 |
Optic Power （mW） | ≥02 | ≥04 | ≥06 | ≥08 | ≥10 | ≥12 | ≥14 | ≥16 | ≥18 | ≥20 |
Optic Power （dBm） | 3.0 | 6.0 | 7.8 | 9.0 | 10.0 | 10.8 | 11.5 | 12.0 | 12.3 | 12.8 |
Optic Wavelength （nm） | 1290～1310 | |||||||||
Fiber Connector | FC/APC、SC/APC、SC/UPC (Selected by the Customer) | |||||||||
Working Bandwidth (MHz) | 47～862 | |||||||||
Channels | 59 | |||||||||
CNR （dB） | ≥51 | |||||||||
CTB （dBc） | ≥65 | |||||||||
CSO （dBc） | ≥60 | |||||||||
RF Input Level (dBμV) | Not with pre-distortion | 78±5 | ||||||||
With pre-distortion | 83±5 | |||||||||
Band Unflatness | ≤0.75 | |||||||||
Power Consumption (W) | ≤30 | |||||||||
Power Voltage (V) | 220V(110～254) | |||||||||
Working Tem (℃) | 0～45 | |||||||||
Size (mm) | 483×370×44 | |||||||||
