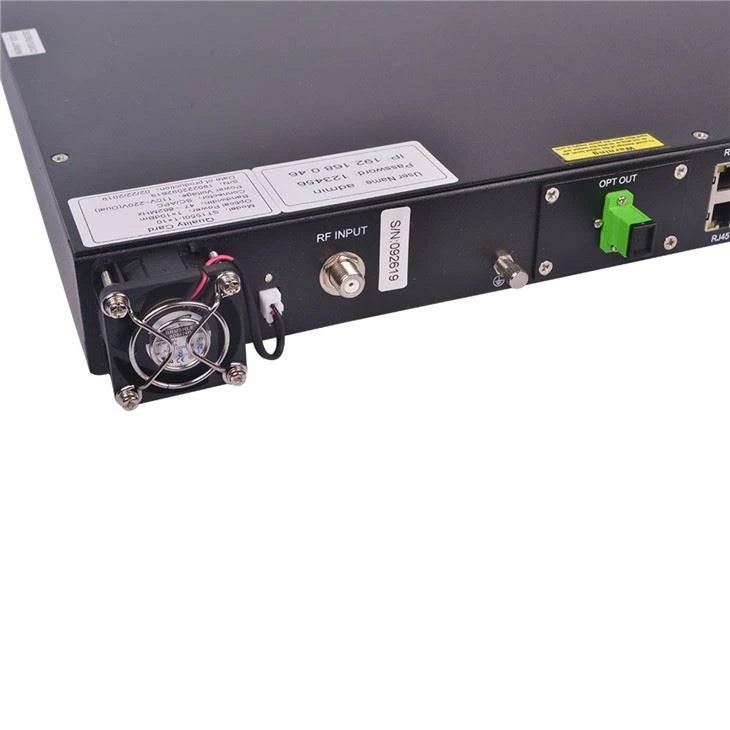

1550nm Internal Optical Transmitter
1550nm internal optical transmitter
The internal micro-processor software has many functions such as laser monitoring, number display, trouble alarm and on-line management. Once the working parameter of the laser is out of the fixed range, there will be a red light glistening to alarm.
Main Technical Parameters
|
Model (ST1550I) |
-04 |
-06 |
-10 |
-12 |
|
|
Optic Power (mW) |
4 |
6 |
10 |
12 |
|
|
Optic Power (dBm) |
6.0 |
8.0 |
10.0 |
10.8 |
|
|
Optic Wavelengt (nm) |
1550±20 |
||||
|
Fiber Connector |
FC/APC,SC/APC,SC/UPC (Selected by the Customer) |
||||
|
Working Bandwidth (MHz) |
47～862 |
||||
|
Channels |
59 |
||||
|
CNR (dB) |
≥51 |
||||
|
CTB (dB) |
≥65 |
||||
|
CSO (dB) |
≥-60 |
||||
|
RF Input Level (dBμV) |
Not with pre-distortion |
78±5 |
|||
|
With pre-distortion |
83±5 |
||||
|
Band Unflatness |
≤0.75 |
||||
|
Power Loss (W) |
≤30 |
||||
|
Power Voltage (V) |
220V(110～254) OR -48VDC |
||||
|
Working Tem (℃) |
-20～85 |
||||
|
Size (mm) |
483×370×44 |
||||
