XPON POE MDU

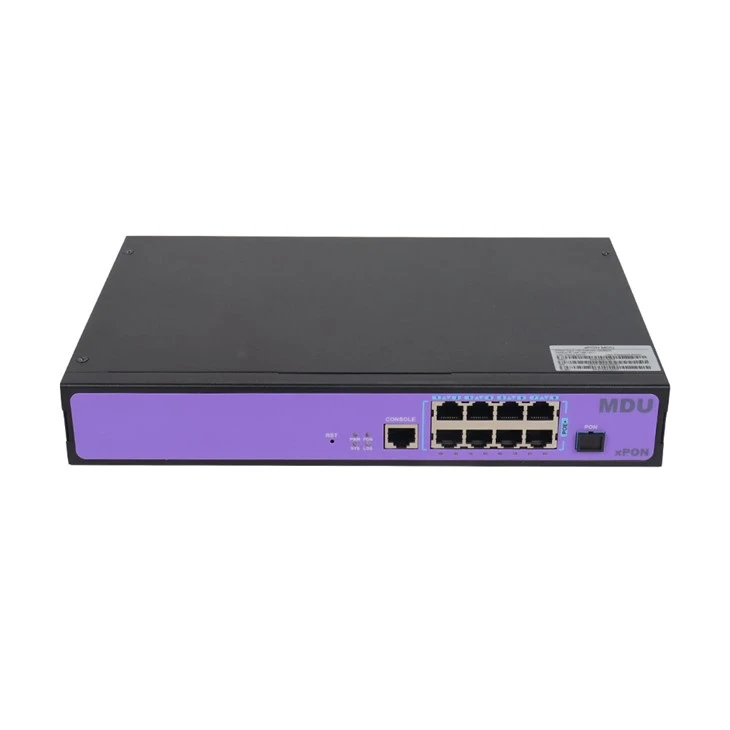

ONT-8GE-POE xPON POE MDU



ONT-8GE-POE series xPON MDU products are specially designed for FTTB/FTTO/POL application scenarios, providing multi-port data services based on xPON network.

The product provides 1 G/EPON adaptive PON port for uplink, 8 10/100/1000BASE-T electrical ports for downlink, and supports PoE/PoE+ function (optional). It is used for data transmission and can supply power to connected cameras, APs and other terminals.

ONT-8GE-POE series products have the characteristics of high reliability, quality of service (QoS) guarantee, simple management, flexible upgrade and expansion, and convenient networking. All functions and performance indicators of the equipment are in line with ITU-T/IEEE related recommended standards and related international standard technical specifications, and have good compatibility with the central office OLT of mainstream manufacturers.



Key Features

Security monitoring scene

G/EPON dual mode

PoE/PoE+

8 Gigabit Ethernet port





Ports and Indicators of xPON POE MDU

Functional Characteristics

Comply with ITU-T G.984, IEEE802.3ah standard

Support PoE/PoE+ function (optional)

Support ONU automatic discovery/link detection/software remote upgrade

Support multiple registration methods of SN and LOID+Password

Support WEB/CLI/SNMP management

Supports Dynamic Bandwidth Allocation (DBA)

Support AES encryption and decryption

Support broadcast anti-storm function

Support IGMP/MLD Snooping

Support ACL control

Support MAC address learning

Support port-based speed limit

Support port flow control

Support loop detect

Support VLAN/VLAN Stacking/QINQ

Support PoE/PoE+ management



Hardware Features

GPON/EPON interface

Single Mode Single Fiber

GPON: FSAN G.984.2 standard

EPON: 1000BASE-PX20+ Symmetrical

GPON: 2.488Gbps/1.244Gbps downlink/uplink

EPON: 1.25Gbps downlink/uplink

Wavelength:

Transmit: 1310nm Receive: 1490nm

Receive Sensitivity:

GPON: -28dBm EPON: -27dBm

Saturation Power:

GPON: -8dBm EPON: -3dBm

Transmission Power:

GPON: 0.5~5dBm EPON: 0~4dBm

Weight and Dimensions

Dimension ：

280mm(L) x 185mm(W) x 44mm (H)

Weight ：

about 1.62kg

User Interface(LAN)

RJ-45 connector:

8* 10/100/1000Mbps adaptive network port

Full/Half Duplex

Auto MDI/MDI-X

Indicator

PWR / PON / LOS / LAN / POE / RUN

Power Consumption

Support PoE/PoE+(PSE)

PSE output voltage：48V DC

PoE output power：120W

Single port maximum output power：30W

Maximum machine power consumption：<=20W

Environmental parameters

Operating temperature: -10 to 50ºC

Working humidity: 10% to 90%



Software Features

management style

EPON : OAM/WEB/CLI/SNMP

GPON : OMCI/WEB/CLI/SNMP

Register

Automatic discovery/link detection/remote software upgrade

Automatic/MAC/SN/LOID+password authentication

swap settings

Mac address learning

Basic port configuration

Broadcast storm suppression

Loop detect

VLAN

QOS

Multicast

IGMP V1/V2/V3

IGMP VLAN

IGMP-Snooping,MLD Snooping

Security

ACL,Support filtering based on MAC and IP address

PoE management

PoE Port AdminState

PoE Port Priority Setting

PSE Overheated Protection

PoE display and maintenance





Network application

Typical Access Scheme：POL

Typical business: Broadband Internet/Data Access





---
