XPON POE ONU

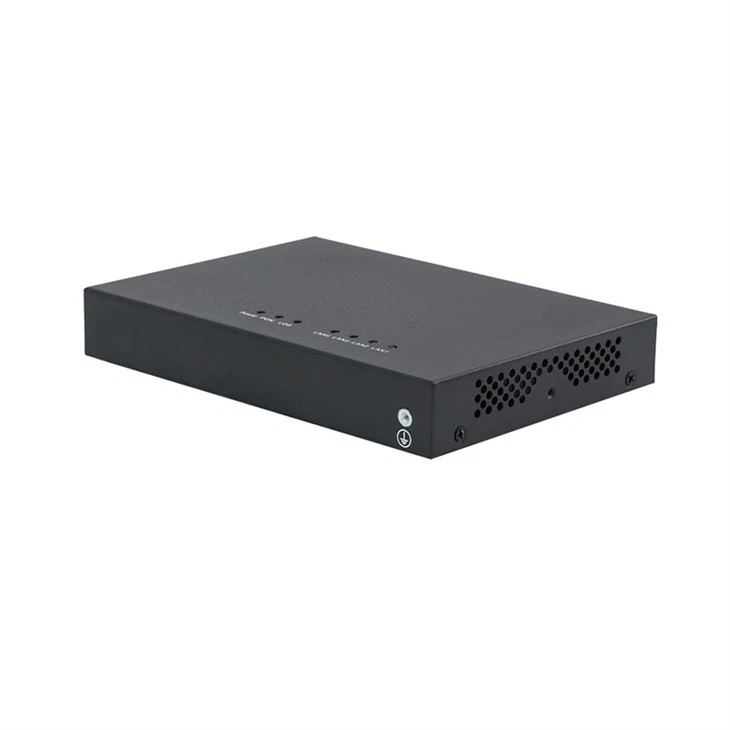

PONT-1G3F XPON POE ONU

XPON+1×GE(POE+)+3×FE(POE+)




PONT-1G3F (1×GE+3×FE XPON POE(PSE) ONT) is specially designed to meet the FTTH, SOHO and other access requirements of telecom operators. The ONT is based on a high-performance chip solution, supports XPON dual-mode, and also supports Layer 2/Layer 3 functions, providing data services for carrier-grade FTTH applications.

The four network ports of the ONT all support the POE function, which can supply power to IP cameras, wireless APs and other devices through network cables.

The ONT has high reliability, is easy to manage and maintain, and has QoS guarantees for various services. It complies with a series of international technical standards such as IEEE802.3ah and ITU-T G.984.



Key Features:

XPON Dual Mode GPON/EPON Compatible
IEEE802.3at POE+ Max 30W per port
Bridge Access Mode
High Cost-Effective









Hardware Parameter

Dimension	175mm×123mm×28mm(L×W×H)
Net weight	0.6Kg
Working condition	Working Temp: -20~+50°C Working Humidity:5~90%(non-condensed)
Storing condition	Storing temp: -30~+60°C Storing humidity:5~ 90% (non-condensed)
Power adapter	DC 48V, 1A
Power supply	≤48W
Interface	1×XPON+1×GE(POE+)+3×FE(POE+)
Indicators	POWER,LOS,PON, LAN1～LAN4



Interface Parameter

PON Interface	1XPON port(EPON PX20+&GPON Class B+) SC single mode, SC/UPC connector TX optical power: 0～+4dBm RX sensitivity: -27dBm Overload optical power: -3dBm(EPON) or - 8dBm(GPON) Transmission distance: 20KM Wavelength: TX 1310nm, RX1490nm
User Interface	PoE+, IEEE 802.3at, Max 30W per port 1*GE+3*FE Auto-negotiation,RJ45 connectors Configuration of the number of MAC addresses learned Ethernet port-based VLAN transparent transmission and VLAN filtering



Function Data

O&M	Support OMCI(ITU-T G.984.x) Support CTC OAM 2.0 and 2.1 Support Web/Telnet/CLI
Uplink Mode	Bridging mode Compatible with mainstream OLTs
L2	802.1D&802.1ad bridging 802.1p CoS 802.1Q VLAN
Multicast	IGMPv2/v3 IGMP snooping





---
