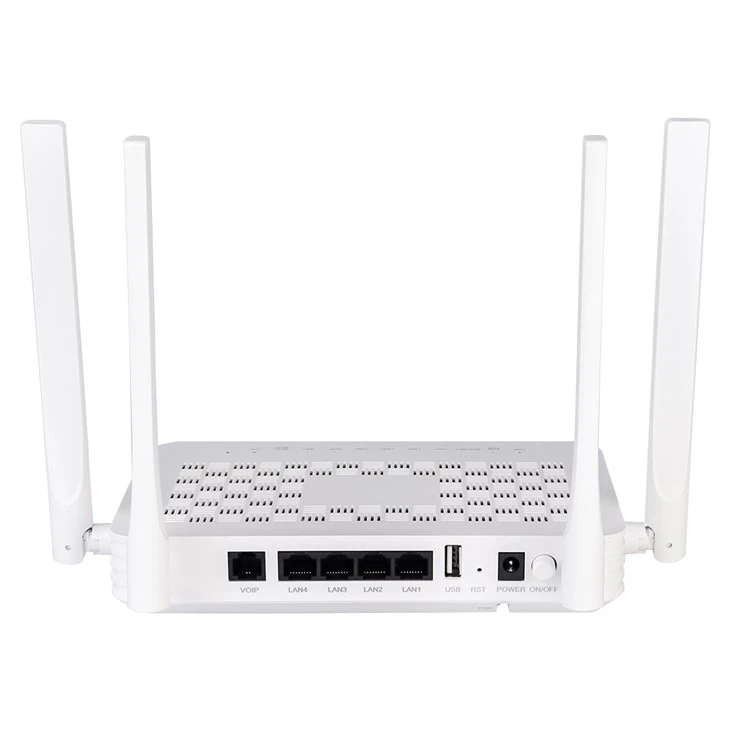

Wifi7 ONU

Name: China Wifi7 ONU Manufacturers, Suppliers - Factory Direct Wholesale - Softel
Brand: Softel
SKU: 306353065

Dual-band WIFI7(AX3600) (2×2 MIMO (2.4G&5G)), 1 * XPON interface: SC/UPC (or SC/APC) interface, G/EPON standard, 4 * Ethernet interface: 10/100/1000Mbps, RJ45, IEEE802.3-2005 standard, 1 * VOIP interface: in accordance with G.711a/u, G. 729a/b, G.722 standard, 1 * Standard USB 3.0 interface

Send Inquiry

Product Introduction

ONT-R4630H XPON WIFI 7 ONU

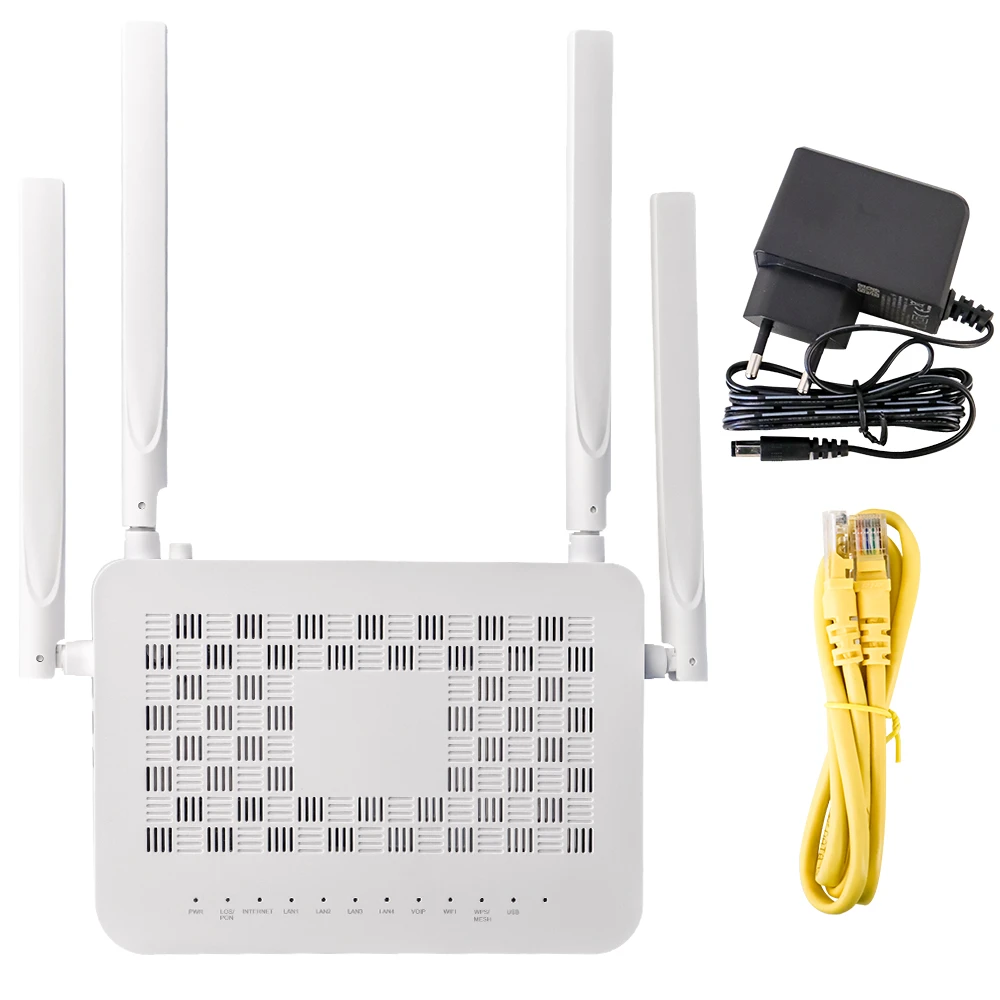

ONT-VU4736H-10

The ONT-VU4736H is a XPON optical terminal access device (AX3600) that is highly integrated with dual-frequency Wi-Fi7. It is the end-product of optical fiber for operator, which supports ultra-bandwidth access through XPON upstream technology, and provides users with basic WIFI functions, routing, VOIP, and gigabit Ethernet functions. The ONT-VU4736H upstream network ports are XPON ports. The downstream user ports include four GE electrical ports, one VOIP port ,and AX3600 WiFi7 WLAN port.

Product Highlight

● 1 * XPON interface: SC/UPC (or SC/APC) interface, G/EPON standard

● 4 * Ethernet interface: 10/100/1000Mbps, RJ45, IEEE802.3-2005 standard

● 1 * VOIP interface: in accordance with G.711a/u, G. 729a/b, G.722 standard

● 1 * Standard USB 3.0 interface

● Dual-band WIFI7(AX3600) (2×2 MIMO (2.4G&5G))

Solution Display

The PON system usually consists of the OLT at the office side, the ONU and the ODN at the user side, and adopts a point-to-multipoint network structure. The ODN consists of single-mode optical fibers and passive optical devices such as optical splitters and optical connectors. It provides the optical transmission medium for the physical connection between the OLT and ONU.Implement FTTX service deployment application.

ONT-VU4736H XPON ONU WIFI7

Hardware Specifications	Description
Port	4GE+1VOIP+1USB+WIFI7+G/EPON
LED	POWER+PON/LOS+INTERNET+LAN+VOIP+WiFi_2.4G+WiFi_5G +WPS+USB
Button	POWER+RST+WIFI+WPS
Flash & Memory	Flash: 128MB; Memory: 256MB;
Power Supply	12V/2A
Power Consumption	≤24W
Environment Standard	Operating Temperature: -5~45℃ Storage Temperature: -20~70℃ Relative Humidity: 5%~95% (non-condensing)
Environment Friendly	RoHs ,CE ,CCC
Weight	0.35KG
Size and Weight	190mm135mm33mm (LWH)
Module type	Class B+, SC/UPC(or SC/APC)
wavelength	UP 1310nm, Down 1490nm
TX Optical power	0.5~5dBm
RX Optical sensitivity	-28dBm
Transmission distance	0~20km
Transmission rate	EPON: Upstream 1.25Gbps/Downstream 1.25Gbps GPON: Upstream 1.25Gbps/Downstream 2.5Gbps
LAN Interface type	LAN1-LAN4 : RJ45 (10/100/1000Mbps)
VOIP	RJ11
USB	USB 3.0
WIFI	Dual-band WIFI7 AX3600 (2×2 MIMO and MLO (2.4G&5G)

WiFi 7	WiFi Protocol	2.4GHz supports 802.11b/g/n/ax/be 5GHz supports 802.11a/n/ac/ax/be
	Transmit Power	2.4G 100mW; 5G 200mW;
	Antenna Gain	5dBi
	Antenna	Dual-antenna MIMO (2.4G&5G)
	WLAN Penetrate	One reinforced concrete wall or two ordinary brick walls (non-reinforced concrete)
	WLAN Access Capability	64/SSID
	Channel	2.4GHz (channel 1-13) 5GHz (channel 36-161)
	WPS	WLAN terminal devices with WPS Push Button function establish connection within 2 minutes
	WLAN Security Function	WPA2-PSK/WPA3-SAE(2.4G only) WPA3-SAE(2.4G only) WPA-PSK/WPA2-PSK WPA2-PSK WPA-PSK Open System & Shared Key Shared Key Open System
	Air Speed	688Mbps (2.4GHz) 2882Mbps (5GHz)
	Multicast	WMM (Wi-Fi Multi Media)
VOIP	VoIP Port	Call waiting, In-conditional Call Forward, Call Forward if Busy, Call Forward if no reply and three-party calls. G711A/G711U/G729/G722 SDP protocol (RFC 2327 and RFC 4566) T.30/T.38/G.711 fax mode DTMF
