Name: China HDMI To Analog Modulator Manufacturers, Suppliers - Factory Direct Wholesale - Softel
Brand: Softel
SKU: 261805308

Softel SFT161X HDMI to analog modulator can convert HD video and audio signals to NTSC or PAL channels, capable of taking 16 HD signals and modulating them to any analog channel.

Send Inquiry

Product Introduction

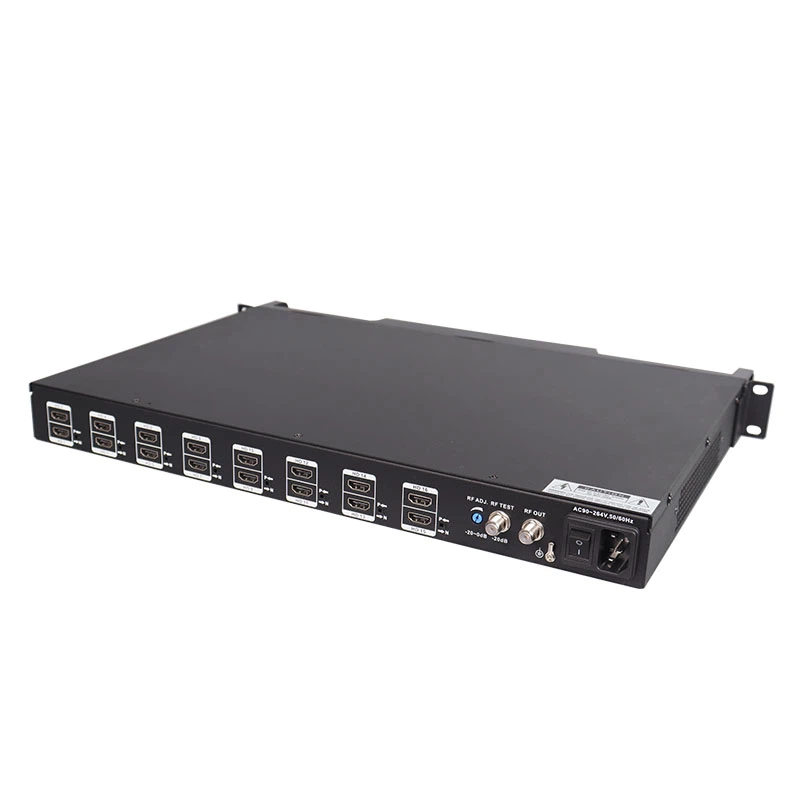

Softel HDMI To Analog Modulator

SFT161X Agile 16 IN 1

INTRODUCTION

The SFT161X is developed specifically for the commercial AV distribution market. It takes in 16 HD signals and then modulates the HD signals into any analog channels, providing an easy way to distribute high definition signals to the old TV systems. With pre-programmed channel list and its agile ability, the operators can set up the modulator intuitively and easily.

FEATURES

Converts HD video and audio signals to analogy NTSC or PAL channel

Rack mountable 1RU rack space with less space and less shipping cost

High picture quality thanks to the 16 HDMI input

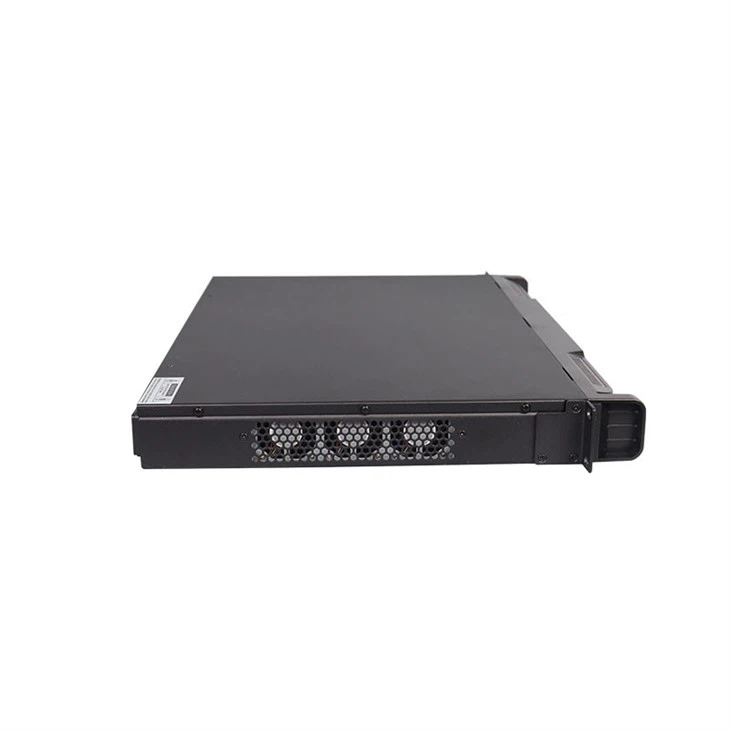

Internal fans cooling system for long life span

Specification of HDMI to Analog modulator

INPUT
Input Connector		HDMI*16
VIDEO		Input Resolution		19201080_60P; 19201080_50P; 1920*1080_60i;
				19201080_50i; 1280720_60P; 1280*720_50P
OUTPUT
RF		Output Connector		F-Female
		Output Frequency		45 ~ 870 MHz
		Output Level		105dBμV
		Adjust Range		0 ~ 20dB
		Output-band Rejection		≥ 60dB
GENERAL
Power Supply	110V ~ 220V		Power Consumption		<W
Shipping Weight	6.5 KG		Dimension		1RU 19''
